Summary of Contents for AAxeon APX-3100

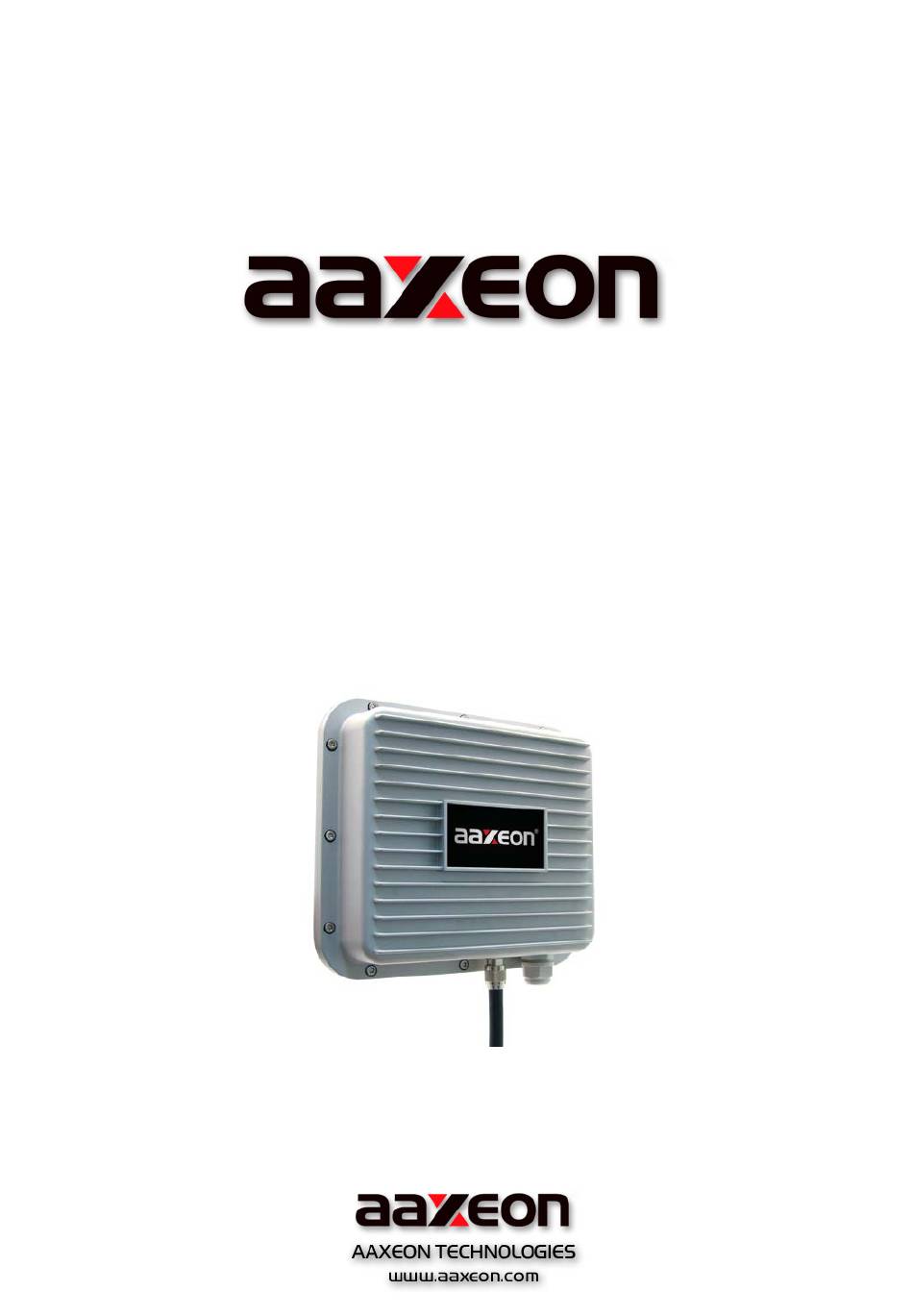

- Page 1 IEEE 802.11b/g/n Wireless Outdoor CPE Quick Installation Guide V3.0.4 May 2011...
- Page 2 Copyright Copyright © 2011 all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of the supplier. About the Quick Installation Guide This Quick Installation Guide is intended to guide professional installer to install the IEEE 802.11b/g/n Wireless CPE.
-
Page 3: Chapter 1 Introduction
Chapter 1 Introduction Introduction The IEEE 802.11b/g/n Wireless CPE is a multi-mode last-mile broadband solution for customers like wireless ISP (WISPs) and system integrators. By the nature of complying with the IEEE802.11n standard and featuring high power output, IEEE 802.11b/g/n Wireless CPE supports higher bandwidth with longer range for outdoor applications. -
Page 4: Chapter 2 Preparation Before Installation
Chapter 2 Preparation before Installation This chapter describes safety precautions and product information you have to know. Please check this chapter before installing the IEEE 802.11b/g/n Wireless CPE. Professional Installation Required Please seek assistance from a professional installer who is well trained in the RF installation and knowledgeable in the local regulations. -
Page 5: Installation Precautions
Before powering on the IEEE 802.11b/g/n Wireless CPE, please verify that the external antenna is properly installed or damage may be caused to the unit. (APX-3100 Note: Though Internal Antenna is Selectable in the WEB Management, the APX-3100 only supports external antenna capabilities.) Product Package The product package you have received should contain the following items. -
Page 6: Chapter 3 System Installation
Chapter 3 System Installation Pole Mounting Wall Mounting Page 6... -
Page 7: Chapter 4 Configuration
Chapter 4 Configuration Connect the IEEE 802.11b/g/n Wireless CPE with your PC by an Ethernet cable plugging in LAN port of PoE injector in one side and in LAN port of PC in the other side. Power on the IEEE 802.11b/g/n Wireless CPE by PoE from PoE injector. Assign a static IP address to your PC which should be in the same network segment with the IEEE 802.11b/g/n Wireless CPE. - Page 8 Now, you will see the log-in page of the IEEE 802.11b/g/n Wireless CPE. The default “Name” and “Password” are “admin” and “password” respectively. Enter them and then click Login. * Since the IEEE 802.11b/g/n Wireless CPE covers “AP mode”, “Wireless Client mode”, “Bridge mode”...
- Page 9 have well done installing the external antenna; otherwise, it might cause damage IEEE 802.11b/g/n Wireless CPE itself. 2. If security is required, open Wireless > Profile Setting and enter “VAP Profile 1 Settings” as below. You may set the parameters like “Network Authentication” and “Data Encryption”...
- Page 10 Wireless Client Mode Choose Wireless > Basic Settings. Then you will see the “Wireless Basic Settings” page. Choose “Wireless Client” from Wireless Mode, and click Apply to save it. Feel free to change the other parameters to optimize your application before clicking Apply. Note: For longer transmission of the CPE, you may also use an external antenna;...
- Page 11 3. If the AP you connect to require authentication or encryption keys, click Profile Settings in the left column, fill out the corresponding items, and click “ Apply” for data encryption. Bridge Mode 1. Choose Wireless > Basic Settings. Then you will see the “Wireless Basic Settings” page. Choose “Bridge”...
- Page 12 2. Go to “WDS Settings” in “Wireless”, input the MAC address of the remote bridge to “Remote AP MAC Address 1” field and click “Apply”. Note: Bridge uses the WDS protocol that is not defined as the standard thus compatibility issues between equipment from different vendors may arise.
- Page 13 case). Mesh and Ring network topologies are not supported by WDS and should be avoided in all the use cases. 3. Repeat the above procedures to configure the remote IEEE 802.11b/g/n Wireless Outdoor CPE. 4. Use ping to check whether the link between the two bridges is OK. 5.
- Page 14 successfully installed, otherwise do not set to ““External (N-Type)” without external antenna, in case IEEE 802.11b/g/n Wireless CPE has damage..To establish point-to-point bridge connection, please follow the procedures described in Bridge mode. To connect the wireless client to the AP, please follow the procedures described in Wireless Client mode.
