AXIS HEIGHT ADJUSTABLE DESK
Installation Guide
D
C
E
A

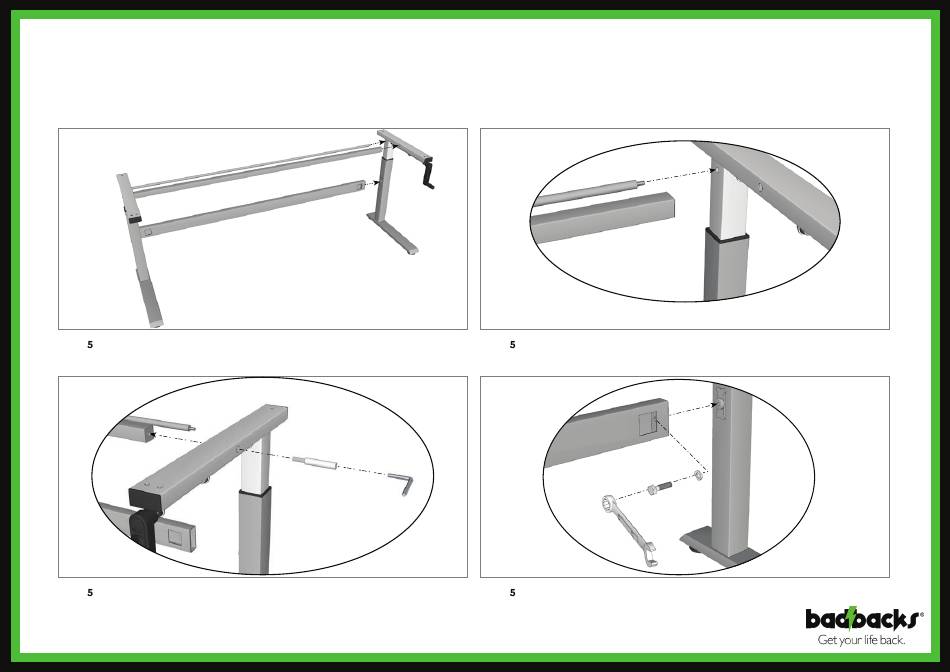

STEP :
Attach top rail C and cross beam E, with leg A fitted to leg B.
C
STEP b:
Fasten top rail C using bolt H.
B
H
L
B
D
C
STEP a:
Short end of gear bar D must be fitted into the drive socket in leg B.
E
K
STEP c:
Fasten cross beam E with bolt I and washer J.
B
B
J
I
Advertisement
Table of Contents
Related Manuals for badbacks AXIS
Summary of Contents for badbacks AXIS
- Page 1 AXIS HEIGHT ADJUSTABLE DESK Installation Guide STEP : Attach top rail C and cross beam E, with leg A fitted to leg B. STEP a: Short end of gear bar D must be fitted into the drive socket in leg B.
- Page 2 AXIS HEIGHT ADJUSTABLE DESK Installation Guide * To prevent possible scratches or damage, assemble the Desk upside down on a soft surface such as a blanket, carpet or packaging. Recommended -person Step * Attach Leg to the Top assembly by using Bolts, spring washer, flat washer.
- Page 3 AXIS HEIGHT ADJUSTABLE DESK Installation Guide STEP : STEP : Attach top rail C to leg A through support arm using bolt H. Fit adjustable feet to all legs.
- Page 4 AXIS HEIGHT ADJUSTABLE DESK Installation Guide STEP : Attach cross beam E to lower mount on leg A using bolt I and washer J. STEP : Insert long hex end of gear bar D to leg A.
- Page 5 AXIS HEIGHT ADJUSTABLE DESK Installation Guide STEP : Attach top rail C and cross beam E, with leg A fitted to leg B. STEP a: Short end of gear bar D must be fitted into the drive socket in leg B.
- Page 6 AXIS HEIGHT ADJUSTABLE DESK Installation Guide STEP : Insert caps G into cross beam E. COMPLETED...
- Page 7 HOW TO OPERATE HANDLE STEP : STEP : Pull handle lever. Tilt handle lever upward and klick into crank handle. Fold handle away parallel to desk top.
- Page 8 CHANGING CRANK HANDLE FROM LEFT TO RIGHT OPERATION STEP : Loosen grub screws from locking collar on leg B. STEP : Fit the hex drive assembly into the drive socket on leg A. STEP : Fit hanger bracket screws and tighten. STEP : Slide out crank handle and shaft.
