Summary of Contents for Mini?Cam BEP300
- Page 1 Brick Egg Stabiliser BEP300 & BEP150/140 Original Instruction Manual Version A...
- Page 2 PLEASE NOTE BEP300 can only be used with 140mm size wheels BEP150/140 can only be used with 115mm and 140XL size wheels Brick Egg Stabiliser...

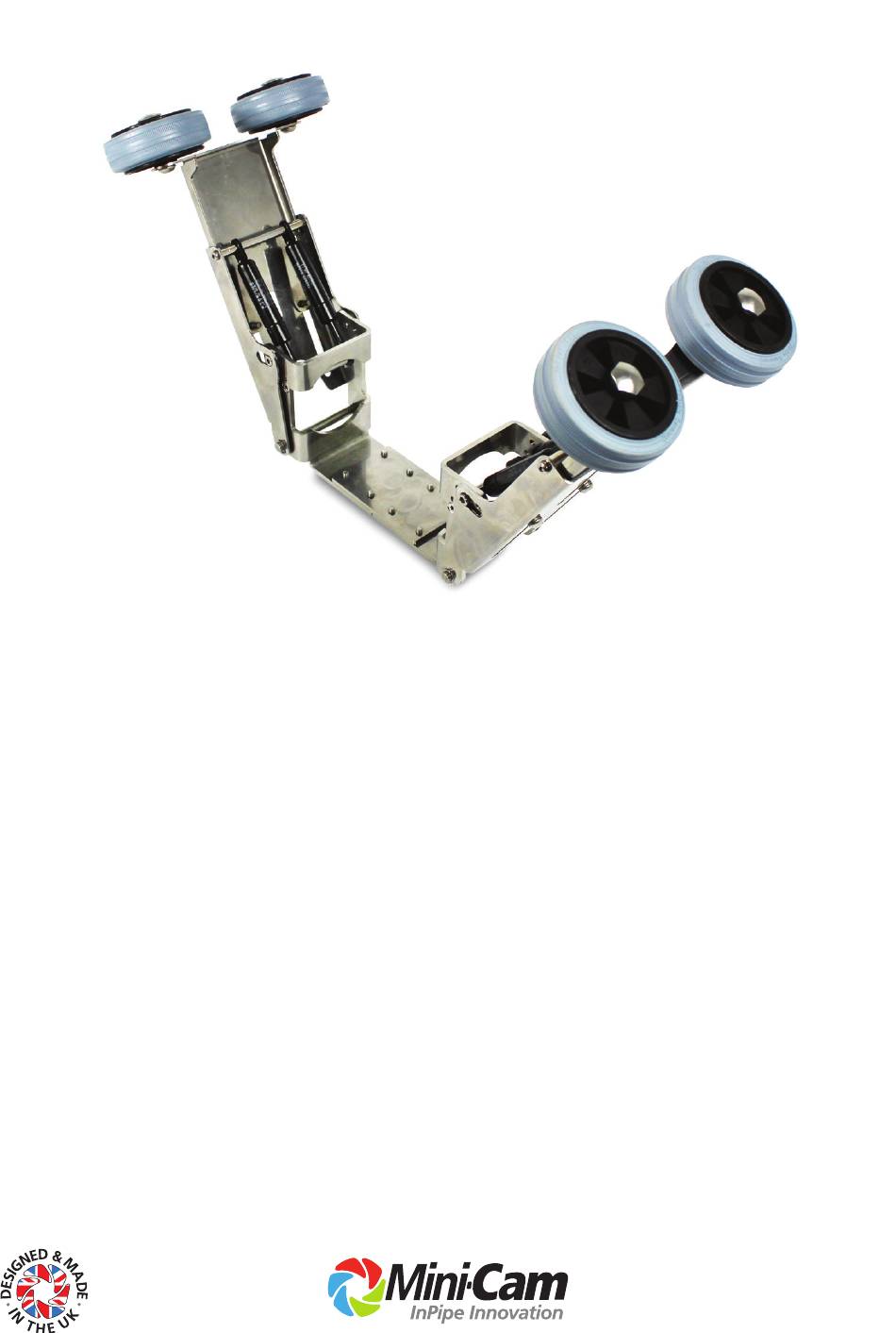

- Page 3 A simple quick fit to our Proteus Crawler, the Brick Egg Stabiliser stops the crawler from rolling over during inspections in pipes with an egg-shaped profile. Exclusively compatible with Mini-Cam’s Proteus CRP300, CPL150, CRP150 and CRP140 crawlers Specifications BEP300 BEP150/140 Product Code BEP300...
- Page 4 Stabiliser. Using T-Bar/Allen key* loosen the axle bolts of the centre wheel on each side of the crawler. * 4mm for BEP150/140 6mm for BEP300 Remove the centre wheel from each side of the crawler. Prepare the Stabiliser by removing 4 screws and washers from one half of the base plate.
- Page 5 The Stabiliser is now ready to attach to the crawler. Offer the two halves of the Stabiliser onto the crawler, and overlap the base plate without screws over the other base plate with screws. Each side of the Stabiliser should sit and align over the wheel axles.
- Page 6 Tighten the screws in the base plate to secure to the other half of the base plate. NOTE: Ensure to use the supplied washers with the screws, when attaching the base plate. This completes the installation of the Stabiliser. Remove the crawler from the raised object and return the crawler to the upright position.
- Page 7 ANGLING THE ARMS The stabiliser arms can be adjusted to 3 different angles, to suit the shape of the pipe being inspected. Each arm can be adjusted independently. Locate the adjusting device as shown Use a 4mm T-Bar/Allen key to loosen above.
- Page 8 WA3 3JD United Kingdom Tel: +44 (0) 1942 444555 Email: info@minicam.co.uk www.minicam.co.uk ©2018 Mini-Cam Ltd. All rights reserved. Mini-Cam and Proteus names/logos are trademarks of Mini-Cam Ltd. WinCan is a trademark of CD Lab AG. Specifications subject to change without notice. Mini-Cam Ltd is a Halma Company.
