INSTRUCTION MANUAL
DIGITAL OIL METER - 1/2" 1500psi
Thank you for purchasing a Lubemate digital oil meter. Your digital
oil meter has been designed to reliably dispense engine oil, gear oil,
automatic transmission fluid and premix automotive coolants.
This manual assists in operating and maintaining your new digital oil
meter. Please take a few minutes to read through this manual before
installing and operating your new digital oil meter.
Variable
measurement units
can be set to display in
litres, gallons, pints & quarts.
Inlet/outlet: 1/2" BSP (F)
Flow range: 1-35LPM
Accuracy +/- 0.5%
Max pressure up to 10,000kPa (1,500psi)
TECHNICAL SPECIFICATIONS
resettable LCD display.
Heavy duty construction
makes it suitable to use
on a wide range of pumps.
Suitable for oils up to SAE 140, engine oils,
gear oils, ATF, hydraulic oils and
premixed coolants
2
Lubemate |
L-DOM35-01

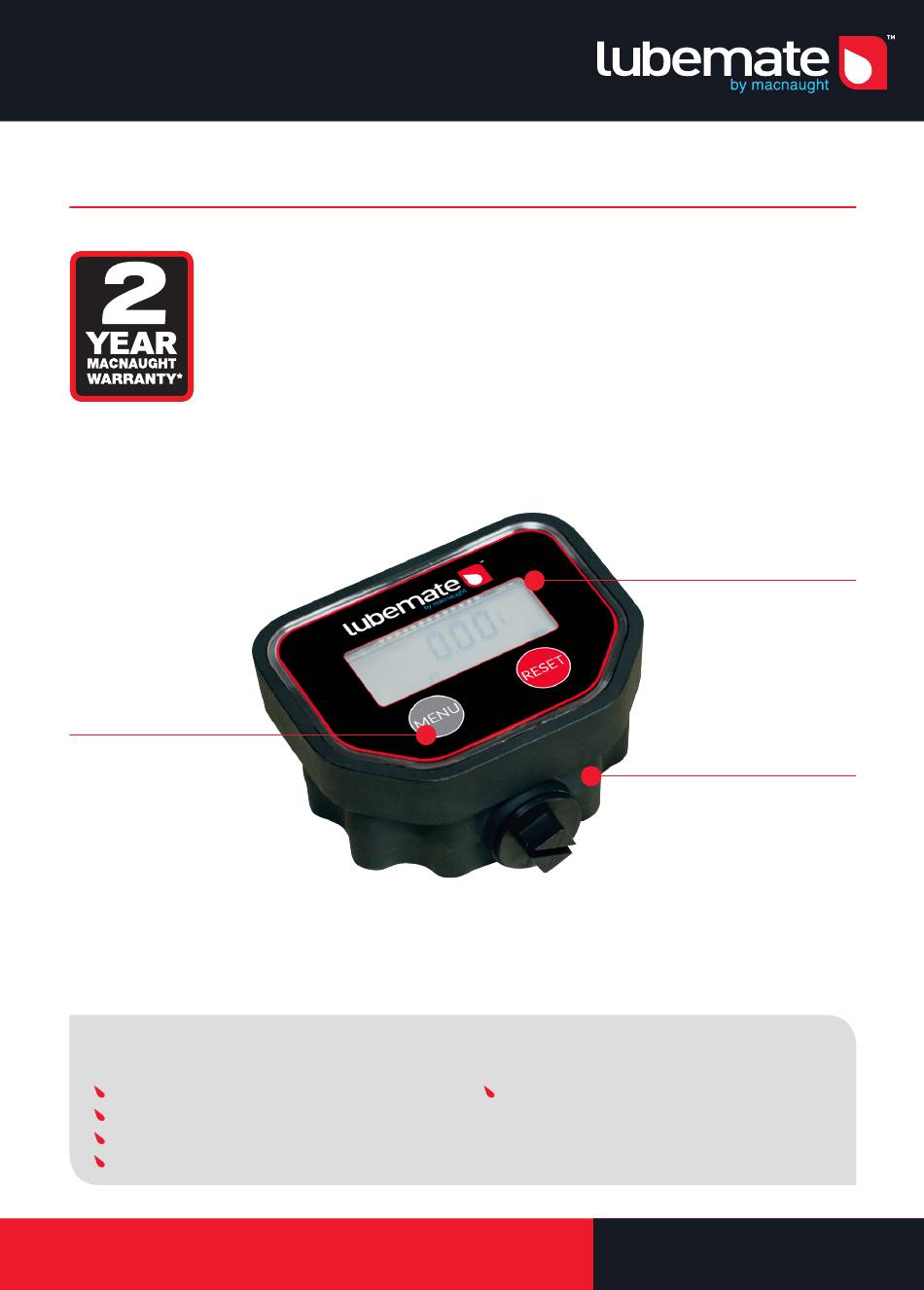

High accuracy
digital oil meter
5 digit easy to read,
Mac-rev-1-2018
macnaught.com
Advertisement
Table of Contents
Summary of Contents for Lubermate L-DOM34-01
- Page 1 INSTRUCTION MANUAL DIGITAL OIL METER - 1/2" 1500psi L-DOM35-01 Thank you for purchasing a Lubemate digital oil meter. Your digital oil meter has been designed to reliably dispense engine oil, gear oil, automatic transmission fluid and premix automotive coolants. This manual assists in operating and maintaining your new digital oil meter.
- Page 2 INSTRUCTION MANUAL GENERAL SAFETY REGULATIONS IMPORTANT OPERATION Data Value Flow rate 1-35L/min Operating Pressure Range 0.5-100bar 1. Keep the work area clean and dry. Damp or The warnings, cautions, and instructions Function button introduction Max operation temperature 60°C Accuracy ±0.5% wet work areas can result in injury.
- Page 3 AREA 1: FOR LAST DISPENSE CYCLE AREA 2: FOR MEASUREMENT UNITS INSTRUCTION MANUAL AREA 4: AREA 3: FOR BATTERY CAPACITY FOR ACCUMULATED TOTAL Notes: It will flashing when INSTALLATION To activate the digital display battery voltage less than 3.3V; Press the RESET key pad to clear the meter before starting a new dispense cycle. This is the best way to activate the meter, because it also clears the quantity of the last dispense cycle.
- Page 4 INSTRUCTION MANUAL TROUBLE SHOOTING GUIDE Part No. Description Q'ty Part No. Description Q'ty Relieve the pressure before you check or repair the dispensing valve. Be sure all other valves and O-ring O-ring controls and the pump are operating properly. Meter Holder Meter holder To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the Meter Cover...
- Page 5 Lubemate is a practical, cost-effective range of ® equipment brought to you by the trusted team at Macnaught. All Lubemate products are specially selected by our experienced technical team at Macnaught , ensuring they meet our ® strict quality standards. Macnaught Pty Ltd 41-49 Henderson St, Turrella NSW 2205.
