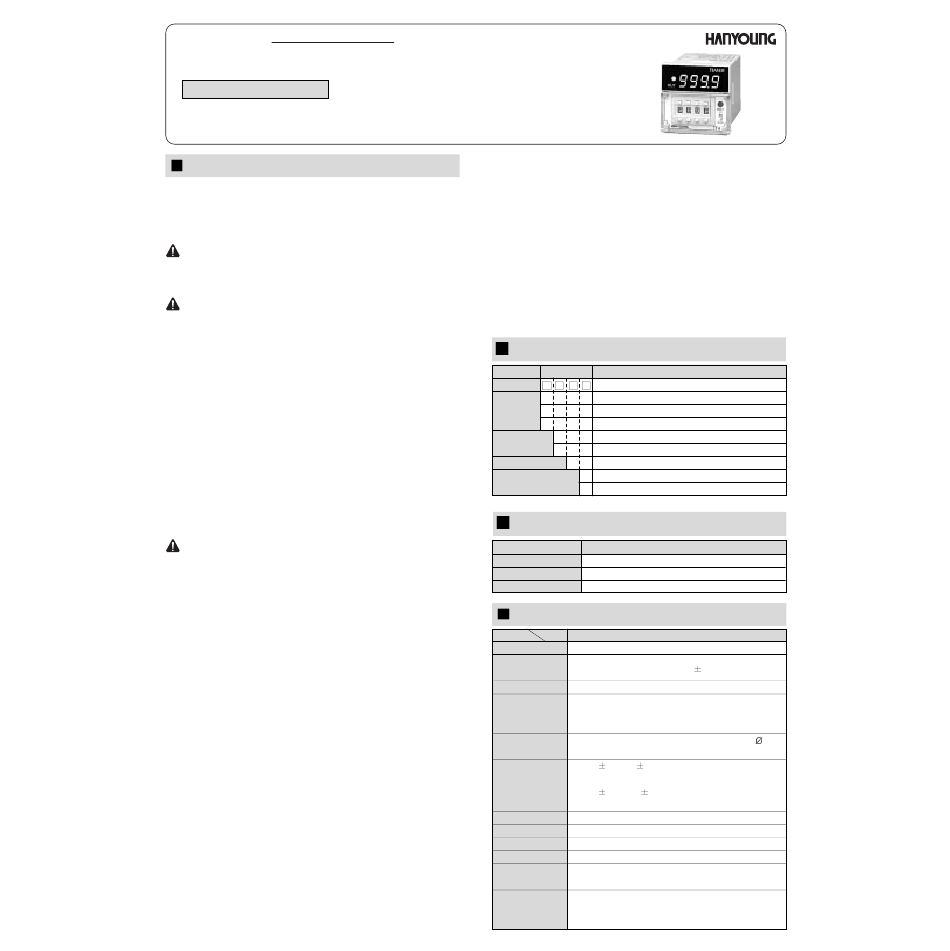

Hanyoung TF4 Quick Start Manual

Digital Multi Timer
TF4
INSTRUCTION MANUAL
We appreciate you for purchasing HanYoung NUX Co.,Ltd
product. Before using the product you have purchased,
check to make sure that it is exactly what you ordered. Then,
please use it following the instructions below.

Safety information

Before you use, read safety precautions carefully, and use this product
properly. The precautions described in this manual contain important
contents related with safety; therefore, please follow the instructions
accordingly. The precautions are composed of DANGER, WARNING
and CAUTION.
DANGER
There is a danger of occurring electric shock in the input/output
terminals so please never let your body or conductive substance is
touched.
WARNING
1. If there is a concern about a serious accident caused by a
malfunction or abnormality of this product, please install an external
protection circuit and devise a scheme for preventing an accident.
2. This product does not contain an electric switch or fuse, so the user
needs to install a separate electric switch or fuse externally. (Fuse
rating: 250V 0.5A)
3. To prevent defection or malfunction of this product, apply a proper
power voltage in accordance with the rating.
4. To prevent electric shock or malfunction of product, do not supply
the power until the wiring is completed.
5. Since this product is not designed with explosion-protective
structure, do not use it any place with flammable or explosive gas.
6. Do not decompose, modify, revise or repair this product. This may
be a cause of malfunction, electric shock or fire.
7. Reassemble this product while the power is OFF. Otherwise, it may
be a cause of malfunction or electric shock.
8. If you use the product with methods other than specified by the
manufacturer, there may be bodily injuries or property damages.
9. There is a possibility of occurring electric shock so please use this
product after installing it onto a panel while it is operating.
CAUTION
1. The contents of this manual may be changed without prior
notification.
2. Before using the product you purchased, make sure that it is
exactly what you ordered.
3. Make sure that there is no damage or abnormality of the product
during the delivery.
4. Please do not use it in case of the time setting is 0. It may be a
cause of its malfunction.
5. Please turn the power off before changing the time setting. In case
of changing the time setting while it is ON, please reset it.
6. Do not use this product at any place with occurring corrosive
(especially noxious gas or ammonia) or flammable gas.
7. Do not use this product at any place with direct vibration or impact.
8. Do not use this product at any place with liquid, oil, medical
substances, dust, salt or iron contents. (Use at Pollution level 1 or 2)
9. Do not polish this product with substances such as alcohol or
benzene. (Use neutral detergent.)
10. Do not use this product at any place with a large inductive difficulty
or occurring static electricity or magnetic noise.
11. Do not use this product at any place with possible thermal
accumulation due to direct sunlight or heat radiation.
12. Install this product at place under 2,000m in altitude.
13. When the product gets wet, the inspection is essential because
there is danger of an electric leakage or fire.
14. If there is excessive noise from the power supply, using insulating
transformer and noise filter is recommended. The noise filter must
be attached to a panel which is already connected to a ground and
the wire between the filter output side and power supply terminal
must be short as possible.
15. If twisting the power cables closely together then it is effective
against noise.
16. Do not connect anything to the unused terminals.
17. After checking the polarity of terminal, connect wires at the correct
position.
MAIN PRODUCTS
- DIGITAL : Temperature Controller, Counter, Timer,Speedmeter,
Tachometer, Panel Meter, Recorder
- SENSOR : Proximity Sensor/Photo Electric Sensor,
Rotary Encoder, Optical Fiber Sensor,
Pressure Sensor
- ANALOG : Timer, Temperature Controller
HEAD OFFICE
1381-3, Juan-Dong, Nam-Gu Incheon, Korea
TEL: (82-32)876-4697 FAX : (82-32)876-4696
18. When this product is connected onto a panel, use a circuit breaker
or switch approved with IEC947-1 or IEC947-3.
19. Install a circuit breaker or switch at near place for convenient use.
20. Write down on a label that if the circuit breaker or switch is
operating then the power will be disconnected since the circuit
breaker or switch is installed.
21. the continuous and safe use of this product, the periodical
maintenance is recommended.
22. Some parts of this product have limited life span, and others are
changed by their usage.
23. The warranty period for this product including parts is one year if
this product is properly used.
24. When the power is on, the preparation period of contact output is
required. In case of using signals of external interlock circuit or etc.,
use it with a delay relay.

Model and Suffix code

Model Suffix Code
TF4
A
Time
Specifi- B
cation C
Display U
Method D
Input Voltage
A
R
Control Output
T

Standard Range

Time Code Number
999.9 sec. / 9999 sec.
A
B 9 minutes 59.9 sec. / 59 minutes 59 sec.
59 hours 59 minutes
C

Specification

Model
Contents
Rated Voltage
Permissible Voltage
Fluctuation Rate
Power Consumption
Power Reset: minimum power open time 0.5 sec.
Reset
External Reset or Inhibit: minimum input signal
Inhibit
width 0.02 sec.
Contact: 250 VAC 3 A Resistive Load (cos
Control Output
Non-Contact: Open Collector 30 V DC 100 mA Max.
Repetition of
Below
Operating Time
(in the case of power supply start)
Setting Error
Below
Effect of Voltage
(rate about the setting value)
Effect of Temperature
Installation Method
Operation Method
Operation Mode
Reset Method
External
Connection Method
Contact: (open of contact, input by short-circuit)
Non-Contact: (input ON/OFF of Open Collector
Input Signal Method
Transistor)
ME0302E050629
Description
Digital Multi Timer (DIN 48mm x 48mm)
999.9 sec./9999 sec.
9 minutes 59.9 sec./59 minutes 59 sec.
59 hours 59 minutes
Up Display
Down Display
100 ~ 240 V AC 50 ~ 60 Hz
Relay Output
Open Collector Output
Setting Range
TF4
100 ~ 240 V AC 50 ~ 60 Hz
Rated Voltage 10 %
Approx. 12 VA / 2.5 W (250 VAC)
=1)
0.01% 0.05 sec.
0.005% 0.003 sec. (in the case of reset)
Mounting Panel Method
Up, Down Operation
N Mode
Power Reset, Manual Reset
8 pin socket
