Your Rhino Shelf

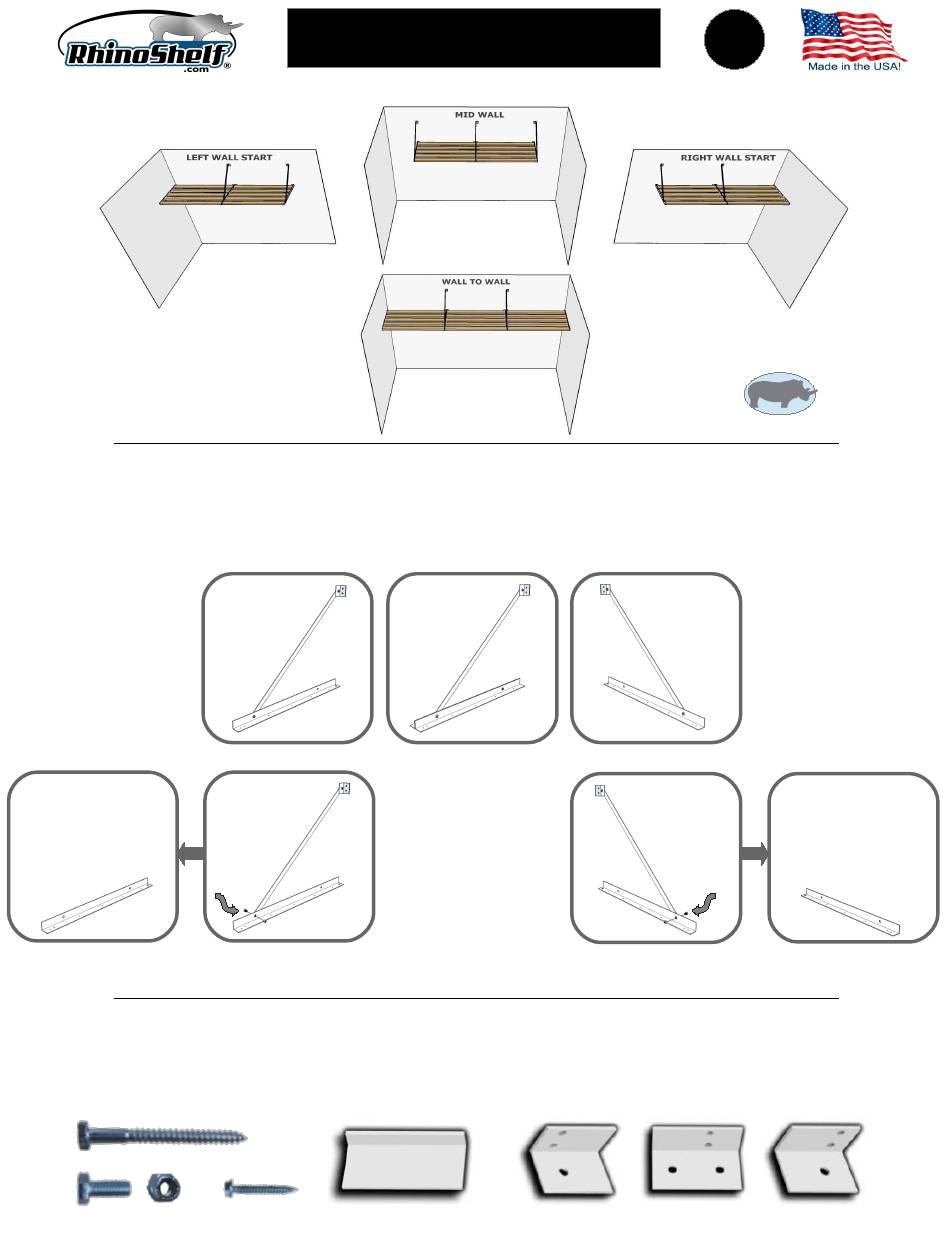

These Universal Instructions work for both
Full-Size Rhino Shelves and for Rhino Mini
Shelves.
Each Universal Shelf Kit contains a Left-End Assembly and a Right-End Assembly. An 8-foot kit also
contains one Tee Assembly. A 12-foot kit contains two Tee Assemblies, a 16-foot kit, three Tee
Assemblies, etc. Four-foot kits do not require a Tee Assembly.
A Mid-Wall installation uses all of these assemblies. For a Left- or Right-Wall Start, modify the
appropriate End Assembly as shown below. For a Wall-to-Wall installation, modify both End
Assemblies:
Left Wall Start
Remove nut & bolt from Left End Assembly
to get Left Wall Start
Contents of Kit: In addition to the Assemblies shown above, each Universal Shelf Kit contains
sufficient fasteners for the length of shelves you ordered, a Spacer Guide, one Left and one Right
Wall Bracket, and a Tee Wall Bracket for each Tee Assembly in your kit.
(All Parts and Assemblies have Labels)
3" Lag Bolts
5/16" Nuts and Bolts
RHINO SHELF
Universal Shelf Kit can be installed in four different configurations:
®
Detailed instructions
Begin on Page 6
Left-End Assembly
#8 Screws
Spacer Guide
®
UNIVERSAL KIT
Installation Guide
Detailed instructions
Begin on Page 4
Detailed instructions
Begin on Page 10
Tee Assembly
(Number of Tee's
depends on length
of kit you ordered.)
Left
Wall Bracket
Page
1
Detailed instructions
Begin on Page 8
Look for the Mini Rhino
symbol for
Special
Instructions.
Right-End Assembly
Remove nut & bolt from Right End
Assembly to get Right Wall Start
Tee
Wall Bracket
MINI
Special Instruction
For Rhino Mini Pg 3
Right Wall Start
Right
Wall Bracket
Advertisement
Summary of Contents for RHINO SHELF UNIVERSAL KIT
- Page 1 RHINO SHELF ® UNIVERSAL KIT Page Installation Guide Your Rhino Shelf Universal Shelf Kit can be installed in four different configurations: ® Detailed instructions Begin on Page 4 Detailed instructions Detailed instructions Begin on Page 6 Begin on Page 8...
- Page 2 For structural considerations, it is important to maintain the individual shelf sections or bays at less than 54”. Call Rhino Shelf Customer Service if you need to exceed this distance and we can give you methods for reinforcing your shelf.
- Page 3 RHINO SHELF ® UNIVERSAL KIT Page Installation Guide A Note on Shelf Height: 84” is the most commonly used shelf height. This height allows the doors of large vehicles to open without hitting the shelves, and plenty of headroom for most people to walk under the shelves.
- Page 4 MID WALL SHELF Page Installation Guide Make sure you've read Pages 1 -3 first. LAY OUT SHELF – CONSTRUCTION LINES: M1. To determine the starting point, find the first available stud from the left obstruction (e.g., window, stairs, garage door track, door, etc.). Measure 84” from the floor and make a small mark.
- Page 5 MID WALL SHELF Page Installation Guide (Continued) M7. FASTEN TEE ASSEMBLY TO TEE WALL BRACKET. Slide the pre-assembled Tee Assembly under the Tee Wall Bracket's lower lag bolt head. This will temporarily hold the Assembly in place. Insert 5/16” bolts through bottom of the Tee Wall Bracket and the Assembly and hand tighten.
- Page 6 LEFT WALL START Page Installation Guide Make sure you've read Pages 1 -3 first. FIRST, DISASSEMBLE LEFT END ASSEMBLY TO OBTAIN LEFT WALL START. Remove the diagonal support arm from the Left End Assembly by removing the 5/16" nut and bolt connecting the diagonal to the 33 1/2" Left Wall Start angled component.
- Page 7 LEFT WALL START Page Installation Guide (Continued) L7. FASTEN TEE ASSEMBLY TO TEE WALL BRACKET. Slide the pre-assembled Tee assembly under Tee Wall Bracket’s lower lag bolt head. This will temporarily hold the Assembly in place. Insert 5/16” bolts through bottom of the Tee Wall Bracket the Tee Assembly and hand tighten.
- Page 8 RIGHT WALL START Page Installation Guide Make sure you've read Pages 1 -3 first. FIRST, DISASSEMBLE RIGHT END ASSEMBLY TO OBTAIN RIGHT WALL START. Remove the diagonal support arm from the Right End Assembly by removing the 5/16" nut and bolt connecting the diagonal to the 33 1/2" Right Wall Start angled component.
- Page 9 RIGHT WALL START Page Installation Guide (Continued) R7. FASTEN TEE ASSEMBLY TO TEE WALL BRACKET. Slide the pre-assembled Tee assembly under Tee Wall Bracket’s lower lag bolt head. This will temporarily hold the Assembly in place. Insert 5/16” bolts through bottom of the Tee Wall Bracket the Tee Assembly and hand tighten.
- Page 10 WALL TO WALL Page Installation Guide Make sure you've read Pages 1 -3 first. FIRST, DISASSEMBLE LEFT END ASSEMBLY TO OBTAIN LEFT WALL START. Remove the diagonal support arm from the Left End Assembly by removing the 5/16" nut and bolt connecting the diagonal to the 33 1/2" angled component.
- Page 11 WALL TO WALL Page Installation Guide (Continued) W7. FASTEN TEE ASSEMBLY TO TEE WALL BRACKET. Slide the pre-assembled Tee assembly under Tee Wall Bracket’s lower lag bolt head. This will temporarily hold the Assembly in place. Insert 5/16” bolts through bottom of the Tee Wall Bracket the Tee Assembly and hand tighten.
- Page 12 B2. CUT BOARDS TO PRE-MEASURED LENGTHS. Mark exact measurements on 2x4x96” boards. Cut five boards per section for the full-size Rhino Shelf and three boards per section for the Rhino Mini Shelf and set aside, ensuring each section's boards are kept together and separate from the boards of other sections.
