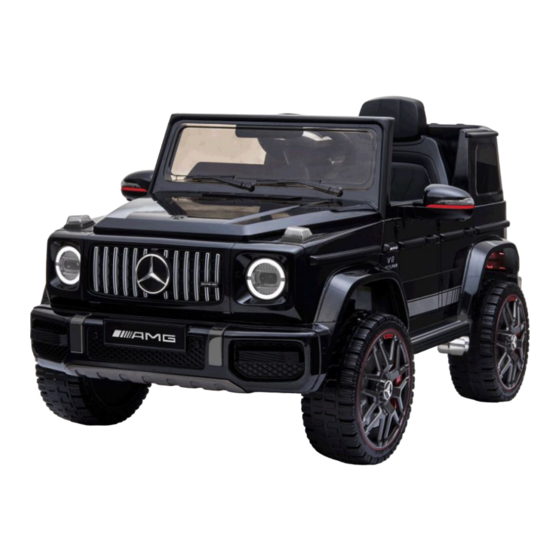

Mercedes-AMG G63
reference only
● Please
manual
before use
● Non-means of transport are not allowed to drive on the road
● The manual contains important information, please keep it safe for future reference.
●
In order to improve the product and improve the quality, we may change parts of the product
structure, appearance, packaging, and assembly methods without notice. When there is a
difference between the specification and the object, please take the physical object as the
standard, please understand!
​
About product 1
Thank you for buying children's electric vehicle licensed by the Mercedes Benz brand !
One of the most important things to do before use is to read this product manual carefully, which can tell
you the details of the installation program and the correct method of use. It can also guide you to avoid improper
operation to damage the product or hurt the rider. It's especially important that it tells you a lot about security
considerations. Please memorize these contents and guide your child to use them. Please keep this instruction in
good hands and keep it in easy access.
" Mercedes Benz"
Daimler's
authorized to use these trademarks.
OWNER'S MANUAL
The design of the product are protected by
intellectual property rights,
Pictures
for
read this
carefully
Our company is

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mercedes-AMG G63 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kids Car Sales Mercedes-AMG G63

  • Page 1 Mercedes-AMG G63  OWNER’S MANUAL  Pictures reference only ● Please read this manual carefully before use ● Non-means of transport are not allowed to drive on the road ● The manual contains important information, please keep it safe for future reference.

  • Page 2: Parameter Specification

    Parameter specification:  Battery​ ​ 1 2V4.5Ah*1 OR 12​ ​ V 7Ah*1 Charger​ ​ ​ 12V700mA OR 12V1000mA Applicable age: 36-95 months Load limit： Less than 30 kg Speed : Single drive 3.5 km / h Double drive 3.5-5.5 km / h Dimension: 1200X75X670mm Power supply mode: Charging type...

  • Page 3: Parts List

    charger 12  13  ejector 14  L=200mm MP3 line 15  toolbox 16  Instructions 17  Ø4X12mm screw Parts list 2 ​ ​...
  • Page 4 Exploded view ​...
  • Page 5 ​ Prior to installation​ 4 ​ ​ Warning ！ It contains fine parts and is not suitable for children under 36 months.  ● The product may contain a potentially dangerous sharp edge or sharp tip prior to assembly,  ● so this product must be assembled from the adult!  ●...

  • Page 6: Install Front Wheel

    Install the front axle:​ ​ p ut the flat iron suit on the bogie first, distinguish the front and back of the steering shaft, do not reverse, insert it on the bracket, and secure it with a pair of oft 8 gaskets and M8 nuts; [make sure the steering rod is inserted in the swivel hole on the front shaft] Install front wheel: ​...
  • Page 7 I nstall seat and rear wing ​ ​ ​ ​   Install the rear wing​ : ​ a lign the card slot on the vehicle body, press down the tail, and get stuck.   Install the seat:​ first plug the card post at the rear end of the seat on the vehicle body, and then fix with ​...
  • Page 8 Install ​ T oolbox: ​ 2pcs​ Ø ​ 4X12mm  p lace the Toolbox on the body and secure it with​ black screws;...
  • Page 9 M ounting steering wheel​ ​ ​ Install the steering wheel​ : [As shown] Connect the plug-in before installing the steering wheel, then install the steering wheel (slightly use the point force), and then fix the steering wheel with the screw of the original machine​ Ø ​ 5 X40mm  and the M5 nut​...
  • Page 10 I nstallation of windshield and reflector​ ​ ​ Install the windshield:​ align the card hole on the vehicle body, and put the windscreen card on the vehicle body by force; (​ R emarks:  Make sure the card foot of the  windscreen is fully clamped on the ...

  • Page 11: Connecting Power

    C onnecting power supply​ ​ ​ Docking power connection plug-in​ [subject to physical]...

  • Page 12: Safety Warning

    ​ P rior to use 12 ​ ​ Wining​ ！ ​ To prevent an unexpected occurrence: ● When driving a vehicle, care and guidance must be provided by the adult or the parent, and the caregiver must not leave, and make sure your child is within your field of view.
  • Page 13 F unctional indication​ ​ 1　 Power switch: turn on or off the power 2　 Forward / back switch: control the moving direction of the product, forward or backward; 3　 USB player: see 14 for details 4　 Foot switch: step on the foot switch, the vehicle moves, lift the foot loose, the vehicle slowly brake;...
  • Page 14 1　 USB interface: insert USB terminal, connect audio source, can play audio; 2　 TF card Jack: insert TF card, can play audio; 3　 MP3 interface: through the data line can be connected to other devices and play audio; 4　 Volume-/ early education English: long press this key, volume is reduced; touch this key, play early education English;...
  • Page 15 Remote control operation 15  ​ 2.4G remote control instructions ​ [ optional function​ ] The first use needs the code, the later replacement battery does not need to match the code; Step 1: open the battery cover on the back of the remote control and load into 2 dry batteries;...
  • Page 16 2　 Touch and press B, the car back; 3　 Touch and press the C key and the car turns to the left; 4　 Touch and press the D key and the car turns to the right; 5　 Key E is the power indicator (red light is lit when 2 dry batteries are loaded in the right way) Note: ​...
  • Page 17 ​ Note before ​ 17 charging​ ​ Warning! ● This product has the charge protection function: when charging, the vehicle all functions are not available! Charging must be done by adults! Chargers and batteries should not be touched by ● children! Warning! ●...
  • Page 18 Charging signal​ ​ ​ ● When the product has no operation, if the voltage display panel shows the value of the following figure, please charge: Battery parameter magnitude of voltage Battery condition ≥​ 6 .6 6V4.5AhX1 6V7AhX1 Battery full charge 6.5--6.3 This product can be used normally ≤​...
  • Page 19 P lug the charger into the power outlet. 19  ​ ​ Fuse This product is equipped with self-reset fuse, when overload or improper use, self-reset fuse will automatically cut off the power supply for 15-20 seconds, and then restart. The self-reset fuse of the car is installed under the seat. To avoid fusing off the power: ●...

  • Page 20: Troubleshooting

    Troubleshooting 20 ​ fault type checkpoint Exclusion method Motor non-rotation Is the fuse of the vehicle Yes, the fuse automatically cuts off the power for overloaded? (fuse box under the 15-20 seconds and restarts: No, next. seat of the car) Is the pedal switch in good No, fix the foot switch;...
  • Page 21 ● The illustrations used in this manual are intended to illustrate the operation and structure of the product. In the event of minor differences between the material and the illustrations, the physical object shall prevail. ● In order to improve the quality of the product, we may change the part structure and appearance of the product without being told, please understand.
