USERS MANUAL

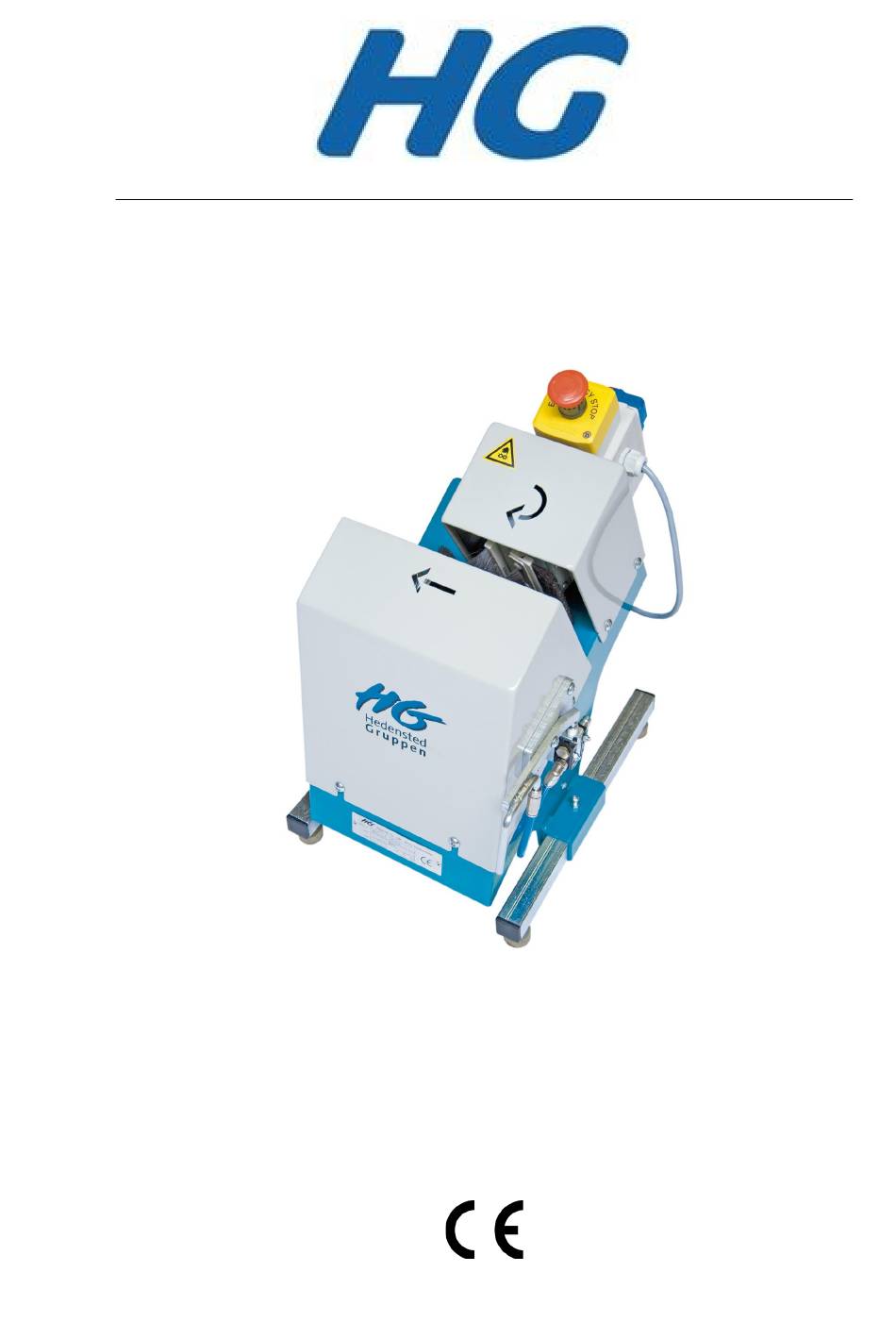

HG SKIN CLEANER
13-07-2018
Model 2005 – 20xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG and is the answer not in the manual?

Questions and answers

Summary of Contents for Hedensted Gruppen HG

  • Page 1 USERS MANUAL HG SKIN CLEANER 13-07-2018 Model 2005 – 20xx...

  • Page 2: Table Of Contents

    Telephone 0045 75 89 12 44 1. Table of contents. 1. Table of contents..................2 2. Introduction....................3 2.1 Warranty.....................3 3. Warning......................3 3.1 Pictorial explains ................4 4. Operating terms..................5 5. Connection of the skin cleaner..............6 5.1 Connection of voltage................6 5.2 Connection of suction.................7 5.3 Connection of compressed air.

  • Page 3: Introduction

    At the side of the HG skin cleaner there is mounted an air pipe, which can be used at the working operation to remove sawdust remains inside the skin.

  • Page 4: Pictorial Explains

    Telephone 0045 75 89 12 44 Wrong use or ignorance of the security instructions can cause damages on the body or breakdown of the machinery. 3.1 Pictorial explains DANGER – HIGH VOLTAGE. The operating box of the machine contains high voltage.

  • Page 5: Operating Terms

    Telephone 0045 75 89 12 44 4. Operating terms. 1. Start/Stop 2. Emergency stop 3. Air connection piece for skin blowing 4. Screw for adjustment of legs – IMPROVING YOUR FUR BUSINESS...

  • Page 6: Connection Of The Skin Cleaner

    5.1 Connection of voltage. HG Skin cleaner is fit with a 16A CEE-socket (1) to which 400 volt is connected with earth. The engine has a maximum consumption during running on 1,1A.

  • Page 7: Connection Of Suction

    10 bar. 5.4 Relocation. Before moving the HG skin cleaner disconnect the electrical connection, the suction tube and the compressed air. By a new set-up on a new location the above procedure is repeated.

  • Page 8: Operation Instructions

    Telephone 0045 75 89 12 44 6. Operation instructions. When your HG Skin cleaner is connected (see ”Connection of the skin cleaner”), the machine is ready for operating. Switch on air and suction before starting the machine. Check that the emergency stop button is partly activated by turning the red button a ¼...

  • Page 9: Maintenance

    7.1 Cleaning. You can clean the HG Skin cleaner with air or water. By cleaning with water, avoid flushing directly on the operating box and the engine. When you clean around the brushes, first disconnect the electric and the air connection.

  • Page 10: Changing Of Brushes

    5. Connect the air- and electric, and continue the work. Attention! Unauthorized modifications, additions or changes on HG Skin cleaner, are not allowed because of the overall security. The producer as well as the supplier are not responsible for damages caused of the above.

  • Page 11: Technical Specifications

    Telephone 0045 75 89 12 44 8. Technical specifications. Electric supply 400 V Size of engine 0,37 kW Electric connection 16A CEE Compressed air 7 bar Air connection Quick fit coupling Cejn 320 Brushing speed 1400 rotation/min Dimensions Length 330 mm Width 520 mm Height...

  • Page 12: Ec Declaration Of Conformity

    Vejlevej 15, 8722 Hedensted Tlf. (+45) 75 89 12 44 www.hedensted-gruppen.dk - herewith declares that: HG Skin cleaner Type number 207110 - is in conformity with the provision of: The Machinery Directive 2006/42/EC The Low Voltage Directive 73/23/EEC - and the following harmonised standards have been applied.
