SOUND STORM LABORATORIES
3451 Lunar Court, Oxnard CA 93030
TECHNICAL ASSISTANCE
www.soundstormlab.com/customer-support
888-387-8676 US Toll-free
805-751-4855 Customer Service

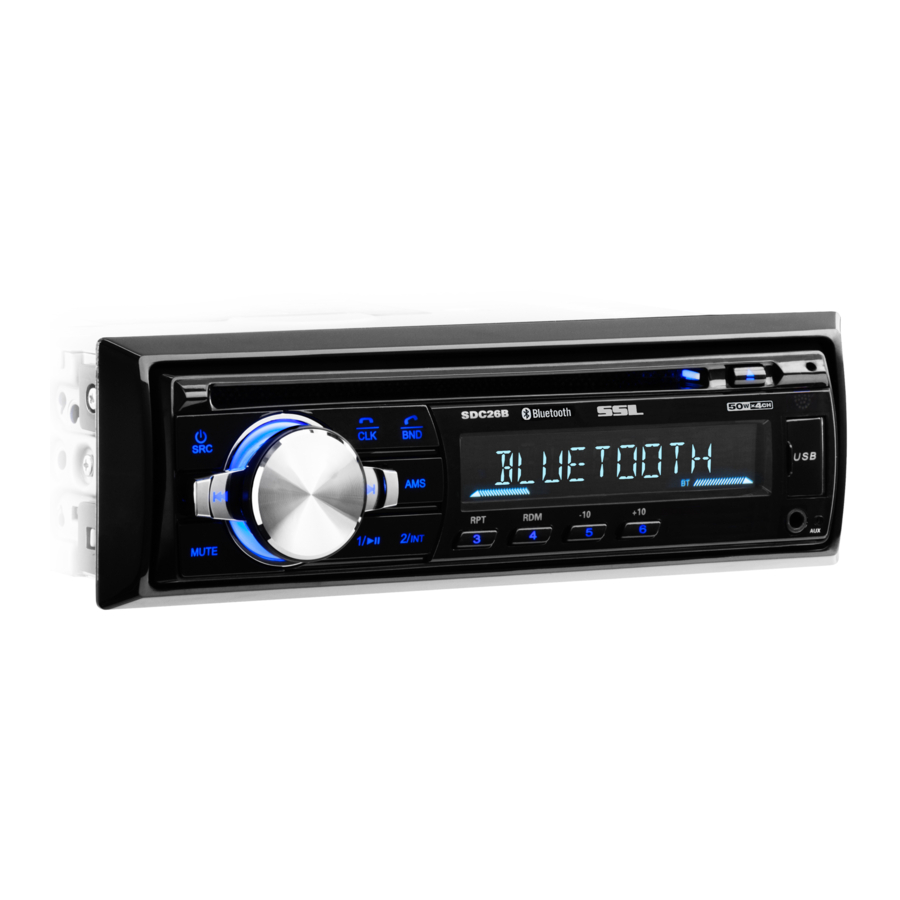

SDC26B
BLUETOOTH® • MP3-COMPATIBLE CD AM/FM RECEIVER
0318
iPod
and iPhone
are registered trademarks of Apple Inc. in the U.S. and other countries.
®
®
Sound Storm Laboratories is not a liated with Apple Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Sound Storm Laboratories is under license. Other trademarks and trade names are those of their respective owners.
USER'S MANUAL
SDC26B
BLUETOOTH® • MP3-COMPATIBLE CD
AM/FM RECEIVER
USB
MP3
AUDIO
AUDIO
OUTPUT
COMPATIBLE
STREAMING
AUX
INPUT
WIRELESS
RC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sound Storm SDC26B
Summary of Contents for Sound Storm SDC26B
- Page 1 Sound Storm Laboratories is not a liated with Apple Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sound Storm Laboratories is under license. Other trademarks and trade names are those of their respective owners.
-
Page 2: Table Of Contents
CONTENTS Precautions..............................1 How to Handle Discs ..........................1 Lithium Battery Cell Warnings ........................ 1 Installation ..............................2 Prepare Radio ............................2 Mount Radio ............................2-3 Wiring Connections ..........................3 Removal of the Main Unit ........................3 Control Panel Button Locations ........................4 General Operation ............................ -
Page 3: Precautions
PRECAUTIONS How to Handle Discs • Handle a disc by its edges. Do not touch the playing side. • Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners. -
Page 4: Installation
INSTALLATION Prepare Radio Before you begin, disconnect the battery negative terminal. Remove the transport screws. Remove chassis from the mounting sleeve. BRACKET KEY PLASTIC TRIM OUT BRACKET KEY If you want to remove the chassis from the mounting sleeve, remove the plastic trim out from both sides. -
Page 5: Wiring Connections
INSTALLATION (CONT.) INSTALLATION DIAGRAM DASH BOARD HEX NUT METAL MOUNTING STRAP SPRING WASHER CONSOLE PLAIN WASHER TAPPING SCREW MOUNTING SLEEVE HEX BOLT - Only use speakers with 4 ohm impedance. - The maximum current of the Amp Remote trigger is 200mA. Wiring Connections WIRING DIAGRAM White:Front Left PRE-AMP Output... -
Page 6: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS (power) / SRC (source) button SEL (select/menu) button and VOL (volume) knob BAND and (answer call) button 4. AMS(automatic store station, automatic music search) (pause/play), Preset station 1 button INT (intro), Preset station 2 button RPT (repeat), Preset station 3 button RDM (random), Preset station 4 button -10(previous 10 tracks), previous folder, Preset station 5 button 10. -
Page 7: General Operation
GENERAL OPERATION Turn Unit On/Off Press the power ( ) /SRC button to turn on the unit. Press and hold it to turn off the unit. Press the power ( ) button on the remote control to turn the unit on or off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+/- button on the remote control to increase or decrease the volume level. -
Page 8: Radio Operation
RADIO OPERATION Switch Between US and EU Frequency In radio mode, press and hold the VOL button to select the AREA EU/US, then rotate it to switch between US (USA) and EU (Europe) frequency. The system will change the frequency setting in about 3 seconds. -
Page 9: Disc/Usb Operation
DISC/USB OPERATION Insert Disc/USB Label Surface Up • To play on a disc, insert a disc with the label surface up into the disc slot. Playback will begin automatically. • To play on a USB device, open the USB port cover and insert the USB storage device into the USB port. -
Page 10: Track Search
DISC/USB OPERATION Track Search During CD, USB playback, press and hold the AMS button to enter the track search modes: a) In playback of CD or files with MP3 format, press and hold the button once to access the track or file number searching mode which allow you to quickly find a specific track or MP3 file by its serial number, and the “TRK SCH”... -
Page 11: Bluetooth Operation
To begin pairing, enable BT mode on your mobile phone. 2. When the phone the car audio system, the SSL SDC26B name will be displayed. 3. Choose the SSL SDC26B from the device list to pair and connect with the car audio system. Upon the BT logo will stop 4. -
Page 12: Remote Control
REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell When the lithium cell battery becomes weak, replace it as illustrated on the right. -
Page 13: Button Names And Locations
REMOTE CONTROL (CONT.) Button Names and Locations (Power on/off) button 2. VOL+/VOL-(volume increase/decrease) button 3. Band button, (answer call) button 4. PREV: tune down, seek down; Previous Track, fast reverse 5. SEL(selection) button 6. NEXT: tune up, seek up; Next Track, fast forward 7. -
Page 14: Troubleshooting
TROUBLESHOOTING Symptom Cause Solution No Power Car ignition not on Switch ignition key to “ACC” Fuse blown Replace fuse Disc cannot be loaded Another disc is already in the Eject disc and insert new player Disc cannot be read Disc was inserted upside Insert disc with label facing down upward... - Page 15 SPECIFICATIONS General Power Supply Requirement ................... DC 12V Current Consumption ....................15A MAX Maximum Power Output ...................50W x 4CH Radio USA/Europe............... 87.5 MHz - 107.9 MHz/87.5 - 108.0 MHz Usable Sensitivity ......................30 dBu I.F. Frequency ......................10.7 MHz USA/Europe..............530 KHz - 1710 KHz/522 - 1620 KHz Usable Sensitivity ......................20 dBu I.F.
