Summary of Contents for Emtron EVO 4-8

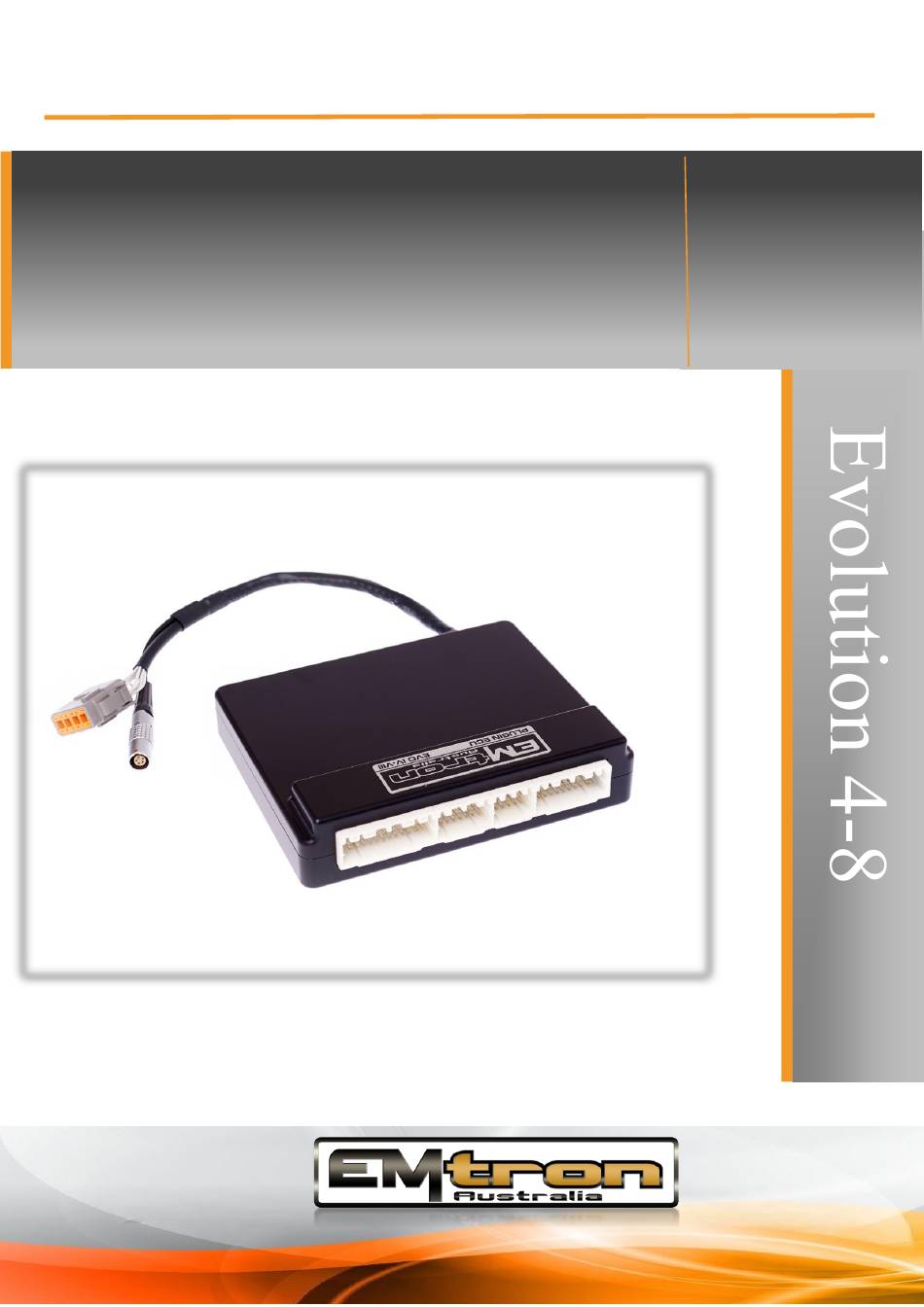

- Page 1 Mitsubishi EVO 4-8 USER MANUAL Plug-in Rev 1.0...
-
Page 2: Table Of Contents
5.2 Inlet Air Temperature ....................13 5.3 ECU Pin 40 Configuration ....................13 6.0 Diagnostic Trouble Codes (DTCs) ..................14 7.0 Ordering Information ......................15 Appendix A – EVO 4-8 ECU Pinout ................... 16 © EMTRON AUSTRALIA PTY LTD MAY 2018... -
Page 3: Introduction
WWW.EMTRON.WORLD 1.0 Introduction The Mitsubishi EVO 4-8 ECU is designed to be plugged into the OEM harness to allow for a true “Plug and Play” install. The system is based on the KV Series Motorsport ECU, so all the same features are available excluding any limitations based around the OEM connector system. -
Page 4: Plugin Features
▪ Compatible with all Emtron proven motorsport features(Launch Control, Rolling Launch, Anti-Lag, Traction Control) ▪ Upgradeable to run the Emtron fuel model through installation of a flex meter, fuel temperature and fuel pressure sensor ▪ Idle speed closed loop control using DBW with advanced Throttle Mass Flow (TMF) airflow calculations ▪... -
Page 5: Installation
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD 3.0 Installation 3.1 Expansion Port The ECU's input capabilities can be expanded using the expansion connection which is a male DTM 12 Way. See Table 3.0. These additional inputs can be connected to any sensor, but the recommended sensors are indicated in brackets. -
Page 6: Can Bus 2 Wiring
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD 3.2 CAN Bus 2 Wiring The ECU CAN Bus 2 is reserved for Emtron CAN Bus devices, expanding the IO capability of the ECU. The following devices can be connected: ▪ ELC1/2 (Emtron Lambda to CAN 1/2 channel) ▪... - Page 7 High-Speed ISO 11898 Standard specification. See Figure 3.2. ALL Emtron CAN devices do not include an on-board CAN termination resistor, allowing the device to be wired at any position on the Bus. CAN Bus termination must be done correctly by using a 120 ohm 0.25W resistor at each end of the bus system as mentioned above.
-
Page 8: Sensor Wiring
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD 3.3 Sensor Wiring 5V VRef2 Sensor Supply Pin (Pin 2 of Expansion port) This is a 250mA 5V output designed to supply automotive sensors. Sensor 0V Reference Pin (Pin 1 of Expansion port) This pin should be connected directly to the 0V (Ground) pin on any low current analog sensor, for example Pressure or Temperature. -
Page 9: Ethanol Content Sensor Wiring
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD 3.4 Ethanol Content Sensor wiring An Ethanol Content sensor can be wired into the ECU using the Expansion port. The following channel assignment is recommended for the GM sensor: GM Sensor Expansion Port... - Page 10 MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD Once the Ethanol Senor has been assigned an input, more settings become available in the Tuning View -> Engine Functions menu. © EMTRON AUSTRALIA PTY LTD MAY 2018...
-
Page 11: Ecu Channel Assignment
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD 4.0 ECU Channel Assignment ECU Channel - Injection Function Injection Channel 1 Fuel Injector Cylinder 1 Injection Channel 2 Fuel Injector Cylinder 2 Injection Channel 3 Fuel Injector Cylinder 3 Injection Channel 4... - Page 12 MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD ECU Channel - Analog Inputs Function Analog Voltage 1 Analog Voltage 2 Analog Voltage 3 02 Front Analog Voltage 4 02 Rear Analog Voltage 5 Not Used Analog Voltage 6 Not Used...
- Page 13 MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD ECU Channel - Auxiliary Outputs Function Auxiliary 1 Purge Solenoid Auxiliary 2 Wastegate Solenoid Auxiliary 3 Tacho Auxiliary 4 Engine Fan Relay Auxiliary 5 Stepper Motor A1 Auxiliary 6 Stepper Motor A2...
-
Page 14: Plug-In Specific Information
The base ECU calibration is supplied in Speed Density mode. It is recommended to install an Emtron 4Bar MAP sensor and wire it to a spare ANV Input in the Emtron expansion port. The ECU may also be configured to run on MAF only or using a combination MAF and Speed Density (MAP). -
Page 15: Diagnostic Trouble Codes (Dtcs)
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD 6.0 Diagnostic Trouble Codes (DTCs) On initial installation it is advised to clear all the DTC's if error(s) are reported. To check: connect to Emtune and look at the DTC status in the bottom toolbar. If there are Errors the status box will be Red as shown in Figure 6.0. -
Page 16: Ordering Information
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD 7.0 Ordering Information Product Part Number Emtron Mitsubishi EVO 4-8 Plugin 1609-52248 Emtron Ethernet Tuning Cable (1.5m) 553-15 © EMTRON AUSTRALIA PTY LTD MAY 2018... -
Page 17: Appendix A - Evo 4-8 Ecu Pinout
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD Appendix A – EVO 4-8 ECU Pinout Function Channel Assignment Injector 1 INJ 1 Injector 3 INJ 3 Fuel Pressure Solenoid AUX 9 Stepper Motor Coil A1 AUX 5 Stepper Motor Coil B1... - Page 18 MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD Function Channel Assignment A/C Fan Relay High INJ 7 Alternator G Terminal IGN 5 A/C Fan Relay Low IGN 3 I/C Spray Lamp IGN 4 CE Light INJ 8 Power Steer Pressure Switch...
- Page 19 MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD Function Channel Assignment Start Switch DI 11 Intake Air Temperature ANV 9 ANV 1 Manifold Absolute Pressure Sensor O2 Sensor Signal Rear ANV 4 O2 Sensor Signal Front ANV 3 Fuel Tank Temperate (USDM)
- Page 20 MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL WWW.EMTRON.WORLD Emtron Australia Pty Ltd Unit 8, 36 Lidco Street Arndell Park NSW 2148 Australia (See the www for contact information) www.emtron.world www.emtronaustralia.com.au © EMTRON AUSTRALIA PTY LTD MAY 2018...
