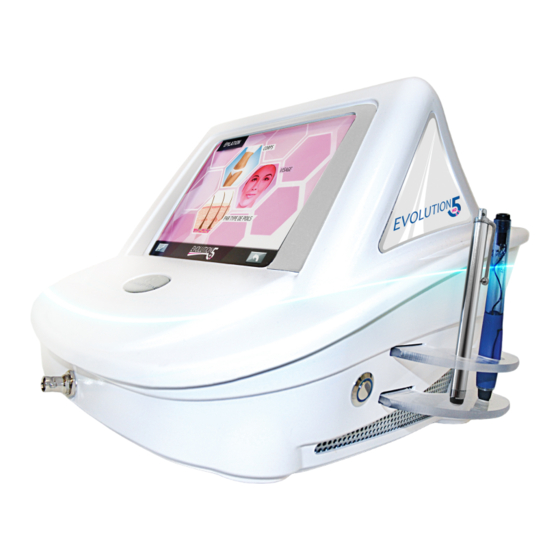

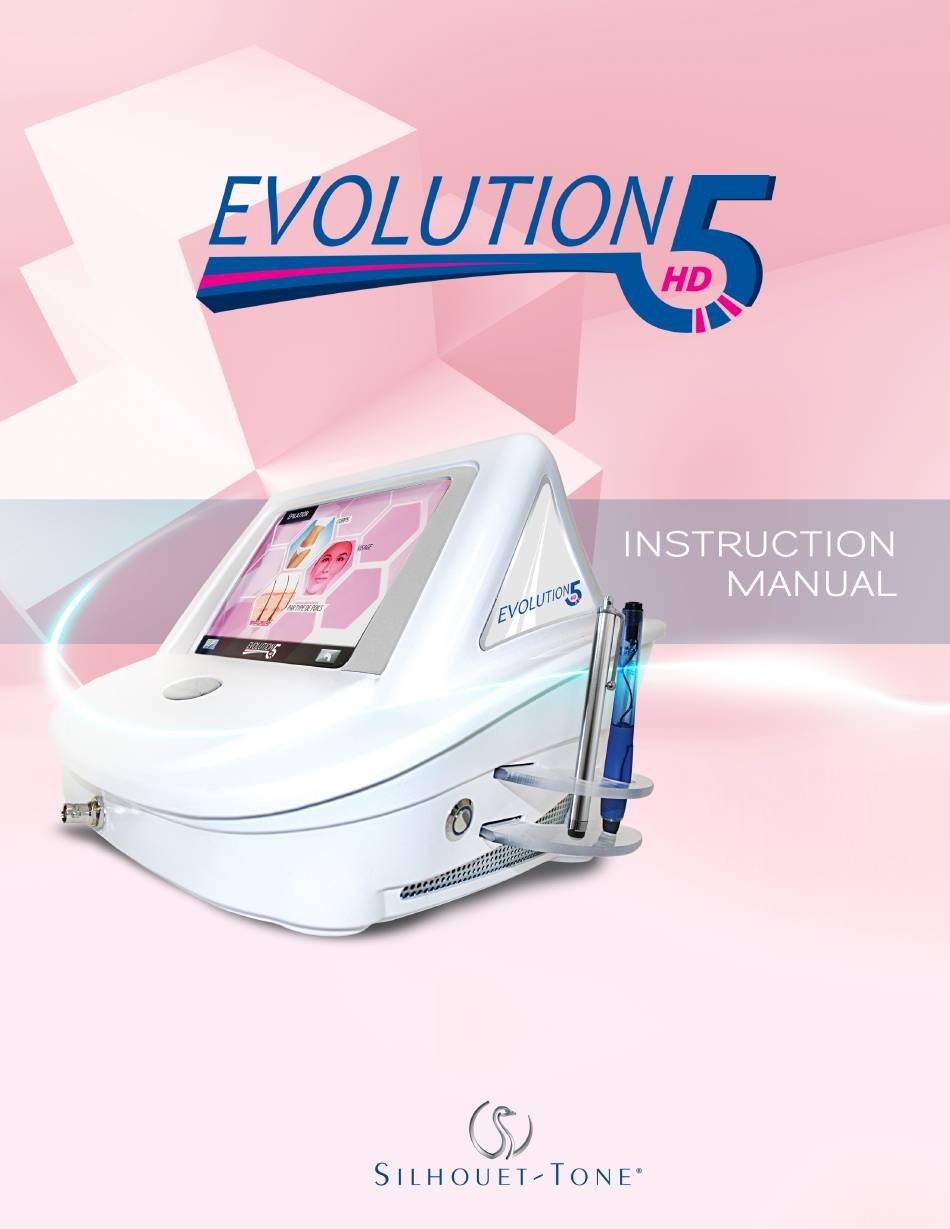

Silhouet-Tone EVOLUTION 5HD Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the EVOLUTION 5HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Silhouet-Tone EVOLUTION 5HD

Page 2: Table Of Contents
04. Treatment screen 05. System configuration 06. Consultation & Scheduling treatments 07. Hair growth cycles 08. Probes & other supplies 09. Evolution 5HD treatment release form 10. Client post care instructions 11. Accessories for with Evolution 5HD 12. Important 13. WARRANTY 14.
Page 3: Evolution 5Hd
This improved treatment’s efficacy and comfort level. Now, with the introduction of the Evolution 5HD unit, we push further the innovation and we create the Vector Modulation . This technology emits complex wave forms to deliver greater amounts of energy in the hair follicle associated by unprecedented and optimal comfort.
Page 4 Benefits • Uses the only technology to remove hair permanently. • Permit rapid destruction of all “hair growing cells”. • Achieves quicker permanency. • Is effective on all hair types (fine, medium, heavy, light or dark). • Eliminates ingrown hairs. •...
Page 5: Contraindications
Contraindications PRIOR TO TREATMENT, EACH CLIENT MUST FILL OUT A CLIENT RECORD CARD AND THE CONSENT FORM. § Pacemaker. § Metallic implant. § Insulin-dependent or severe diabetes. § Pregnancy. § Prescription blood thinning drugs (anti-coagulants such as Warfarin or Coumadin). §...
Page 6: Connecting Accessories
Connecting Accessories Caution: Risk of electrical shock, do not remove back cover. Refer servicing to qualified service personnel. Rear side : Power outlet. Pedal outlet (big black outlet). ON / OFF switch. Soothing roller electrode (red Fuse box. outlet). Contact electrode outlet (small black outlet).
Page 7 Front side: 8. Probe Holder Connection. Right side: 9. Screen pen and probe holder supports 10. Standby button. 6 ...
Page 8 Connections and accessories: NOTE: Make sure that the ON / OFF switch is in the OFF position before connecting any accessory. Onto the Rear panel: Power cable to be connected into # 1 Power outlet. • Pedal to be connected into # 4 Pedal outlet (black small outlet) on the rear unit’s side. •...
Page 9: Unit Settings
Unit settings Your new Evolution 5HD system uses a touchscreen interface. It is highly recommended that you carefully read and understand the instructions to properly use your electrolysis system. INSTRUCTIONS: The touch screen interface is very sensitive, therefore: 1. ALWAYS use the screen pen provided with the unit to touch the screen. There is no need to press hard for a response.
Page 10 STANDBY Mode The “standby” mode should only be used between clients (in the course of the same day) to save time. The unit should be completely powered OFF at night and turned back ON the following morning, before the first client. This procedure will increase screen longevity.
Page 11 3 Selection butons are available in « Depilation » program : The “Face” or “Body” icon will bring up all face or body areas to be treated. • The “Hair type” icon selects generic intensity settings based on hair size. •...
Page 12 Performing a treatment Select the treatment area: “Face” or “Body”. If you wish, you can access generic • programs “By hair type”. Note that these last programs are less comfortable than “Face” or “Body” programs and require a long treatment experience on the machine as well as long experience with client.
Page 13: Treatment Screen
Treatment Screen Note: before any treatment verify if: All jewelleries are removed. • The contact electrode covered with wet gauze, is placed under the shoulder, when • working around face area or under the upper body or under the thighs when working on lower body.
Page 14 Treatment screen : The unit is ready to perform the selected treatment, when the screen displays all treatment parameters. NOTE: Two dials display parameters for Thermolysis and Electrolysis (DC current) ONLY in following modes: Depilation / Face / Chin / Very coarse hair; •...
Page 15 The pink Up / Down arrows are used to increase or decrease the intensity. Modifying treatment parameters will affect only the wave power. The wave’s total duration will not change. T => Time / seconds represents the duration of Thermolysis / Electrolysis wave.
Page 16 Other treatment parameters: “Repeat” key can be used to repeat the modulation wave up to 3 times without re-inserting the needle or having to activate the pedal. Pressing this key will increment the repeat count until it reaches 3. Pressing once more will reset it back to zero.
Page 17 SOOTHING PHASE PROGRAMS The Soothing phase key on the front screen is used to select “Cata” or “Ana”. CONNECTING ELECTRODES Note: The POLARITY of the DC current is pre-set, inside the unit, by a relay. Therefore, there is no need to modify connection of the electrodes when switching between “Cata” and “Ana”. Default treatment time is 3 minutes.
Page 18 “Cata” / “Ana” modes: All jewelleries must be removed. • Place the contact electrode covered with wet gauze, under the shoulder, when working • around face area or upper body or under the thighs when working on lower body. Apply a layer of Sensibilis Lotion / Sensiblis Gel (post-depilation soothing gel for •...
Page 19: System Configuration
System configuration Configuration screen is accessible by pressing the “tool” icon. All operating parameters can be modified to suit your needs. TIMER: 2 options are available 1- True Time Mode: Can be used to countdown a pre-set time. Useful to control time with a client. 2- Chrono Mode: Can be used as a chronometer (counts from zero upward) to keep track of time with client.
Page 20 § When using “Continuous” mode, you cannot pause the timer. If you stop the timer, any subsequent press of this key will reset the timer to zero. § The choice of Timer option will be displayed on the treatment screen. Insertion Delay (automatic current activation mode) The Sensor Delay key is used to work in the automatic current activation mode, without the pedal.
Page 21 The “Update” key is used to update your system as “updates” become available. Call your service technician for help. Updates can only be downloaded if your unit is connected to the internet via WiFi. Wi-Fi parameters needs to be set only once, the unit will keep them in memory until you decide to change them.
Page 22: Consultation & Scheduling Treatments
Consultation & Scheduling treatments During consultation, treatment procedures should be clearly explained. Client should know how the treatment will feel and what results she/he can expect. The number of treatments required will vary between individuals and the areas being treated. Several factors including hormonal activity, inherited conditions and other influences may impact the effectiveness of treatments.
Page 23: Hair Growth Cycles
Hair Growth Cycles Hair growth cycles play a major role in your hair removal treatment regimen. Excessive hair growth can be caused by a variety of factors including heredity, stress, medication, and hormonal changes. For women, puberty, pregnancy and menopause play important rolls in determining hair growth.
Page 24: Probes & Other Supplies
Probes & other supplies All probes must be disposed after each use. Probe size varies according to the diameter of the hair to be treated. Use probes that are: § Disposable. § One piece. Supplies needed for treatment: § Pre-depilation cleanser (such as Sensibilis Pre-depilation lotion). §...
Page 25: Evolution 5Hd Treatment Release Form
Evolution 5HD treatment release form Client/patient consent to treatment: My signature below and my initials at each paragraph acknowledge that I have read the following statements and agree to receive Electrolysis treatments. I, ________________________________ authorize ______________________________ or member of her (or his) staff, to perform electrolysis treatments on myself.
Page 26: Client Post Care Instructions
Client “Post care Instructions|” After all Electrolysis procedures, the following steps must be followed. • Do not touch, stretch or manipulate treated area for at least 24 hours following treatment. • Clean treated area very gently using fingers and facial cleanser. Do not use face cloth, facial brush or sponges.
Page 27: Accessories For With Evolution 5Hd
Please verify that you have received all accessories upon reception. § When ordering, please use the corresponding product codes. § Please keep box & shipping material to ensure safe shipping when returning your Evolution 5HD unit for servicing. § Welcome gift items can be ordered.
Page 28: Important
2. If you have any questions regarding the operation of this unit, contact Silhouet-Tone or your local distributor. 3. The Evolution 5HD unit is used to perform permanent hair removal. This unit should only be used by licensed professionals who have received Electrolysis certification.
Page 29: Specifications
Microprocessor controlled SILHOUET-TONE RESERVES THE RIGHT TO CHANGE THE SPECIFICATIONS OF THE “EVOLUTION 5HD” UNIT WITHOUT NOTICE. All rights reserved. No part of this work covered by the copyright hereon may be reproduced or used in any form or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems –...
