Summary of Contents for Stone RP850G

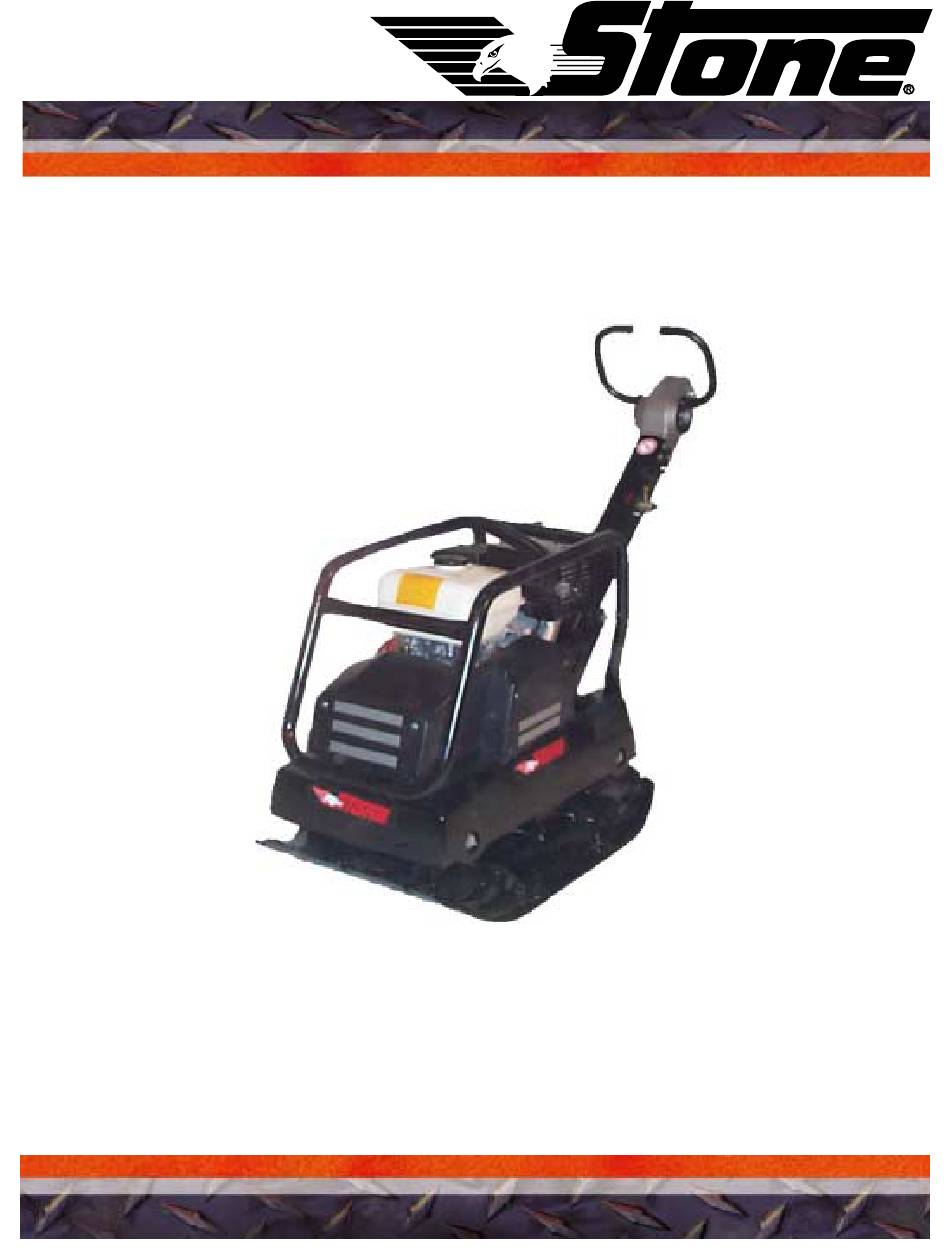

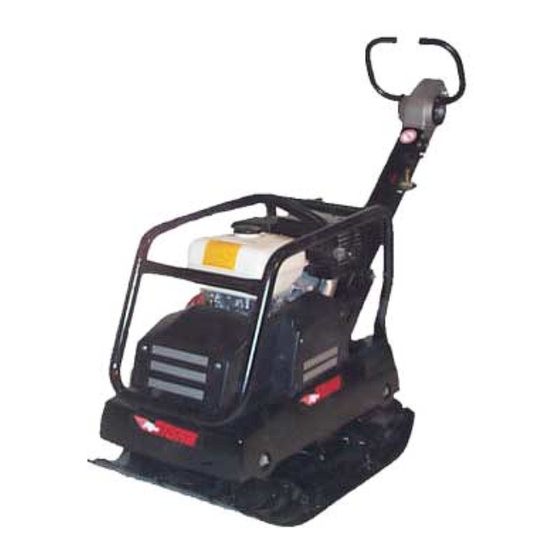

- Page 1 OPERATOR MANUAL MODELS: RP850G and RP850D REVERSIBLE PLATE A 100% employee-owned American manufacturer REVISION: A 3/2002 P/N 56514...
-
Page 3: Table Of Contents
TABLE of CONTENTS RP850G / RP850D FOREWORD ..............................4 TECHNICAL DATA ............................5 - 8 Machine Specifications ........................... 6 - 7 Noise and Vibration Data ........................8 HEALTH & SAFETY ............................. 9 - 15 Safety Use ............................... 10 Safety Precautions ........................... 11 - 15 OPERATION .............................. -
Page 4: Foreword
Fax #: ______________________________ tion of accidents. Stone Construction Equipment, Inc. is not liable for the function of the machine when Location of above information: used in an improper manner and for other than the intended purpose. -
Page 5: Technical Data
TECHNICAL DATA... -
Page 6: Machine Specifications
TECHNICAL DATA RP850G / RP850D MACHINE SPECIFICATIONS - 6 -... - Page 7 TECHNICAL DATA RP850G / RP850D MACHINE SPECIFICATIONS RP850G / RP850D SPECIFICATIONS MODEL RP850G RP850D Dimensions Length L 53.7 in (1365 mm) 53.7 in (1365 mm) Length L1 33.9 in (860 mm) 33.9 in (860 mm) Length L2 16.1 in (410 mm) 16.1 in (410 mm)
-
Page 8: Noise And Vibration Data
TECHNICAL DATA Noise and Vibration Data NOISE AND VIBRATION DATA The following listed noise and vibration data according to the EC machine directive in the version (91/368/EEC) was determined at the rated speed of the drive motor with vibration with the machine placed on a resilient base. -
Page 9: Health & Safety
HEALTH & SAFETY... -
Page 10: Safety Use
HEALTH & SAFETY Safety Precautions SAFETY USE These machines are designed to carry out the function of compacting material of the non-cohesive, bituminous and granular varieties. If used correctly they will provide an effective and safe means of compaction and meet the appropriate performance standards. -
Page 11: Safety Precautions
HEALTH & SAFETY Safety Precautions SAFETY PRECAUTIONS Before using this equipment, study this entire manual to When warning decals are destroyed or missing, contact become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially children, replacement. - Page 12 HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot.
- Page 13 HEALTH & SAFETY Safety Precautions • Qualified personnel only. No untrained operators. Serious injury may occur. • Users must be trained to operate this machine. Read the Operator's Manual and Engine Owner's Manual. Learn to operate this roller safely. • Do not operate across the sides of hills, machine may tip over.
- Page 14 HEALTH & SAFETY Safety Precautions WEAR PROTECTIVE CLOTHING • Wear close fitting clothing and safety equipment appropriate to the job. • Prolonged exposure to loud noise can cause impairment or loss of hearing. • Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises.
- Page 15 HEALTH & SAFETY Safety Precautions • Starting fluid (ether) is highly flammable, do not use or an explosion or fire may result. PREVENT BYPASS STARTING • Avoid possible injury or death from engine runaway. • Do not start engine by shorting across starter terminal. Engine will start with PTO engaged if normal circuitry is bypassed.
-
Page 17: Operation
OPERATION... -
Page 18: Description
Danger: construction. Refers to orders and prohibitions designed to prevent injury or extensive damage. All ground materials such as sand, gravel, sludge, crushed stone, asphalt and composite sett paving can be compacted. - 18 -... -
Page 19: Transporting The Machine
OPERATION RP850G / RP850D TRANSPORTING THE MACHINE Use personal protective equipment (safety footware, hearing protection, etc.) Only load and transport the machine as specified in the operating instructions. Only use suitable means of transport and lifting gear with sufficient bearing capacity! Attach suitable slinging means to the points of attachment provided. -
Page 20: Starting In Enclosed Spaces, Tunnels, Mines, Or Deep Ditches
OPERATION RP850G / RP850D Starting in enclosed spaces, tunnels, mines or deep Shut down the drive and secure it to prevent accidental ditches movement and unauthorized use. If available, close the fuel valve. Do not place or store equipment with Engine exhaust fumes are highly dangerous! integrated moving gear on the chassis. -
Page 21: Handling Batteries
OPERATION RP850G / RP850D DO NOT adjust pressure relief valves. TESTING Drain hydraulic oil at operating temperature. Road rollers, trench rollers and vibrating plates must be CAUTION - risk of scalding! tested for safety by an expert depending on the... -
Page 22: Adjusting The Tow-Bar
OPERATION RP850G / RP850D The control lever serves for adjustment of the In case of loading and transport, the tow-bar has to be unbalances in the exciter and in turn for continuous locked in an upright position by turning up the locking regulation. -
Page 23: Operating The Engine (Hatz)
OPERATION RP850G / RP850D OPERATING THE ENGINE (Hatz) Electric start (Hatz only) Starting the engine 1. Adjust engine speed control lever to full load. 2. Insert the ignition key (1) and turn to “I”, 1. Adjust engine speed control lever (1) to full charging indicator lamp (4) and oil pressure load “II”. -
Page 24: Operation
OPERATION RP850G / RP850D Danger: LOADING AND TRANSPORTATION At the end of work or interruptions, take measures to prevent unauthorized access to the ignition key. OPERATION Danger: Only use sufficiently strong and secure loading ramps when loading. 1. Allow engine to warm up for 1 to 2 minutes Secure the machine against rolling or slipping when idling. -
Page 25: Maintenance
MAINTENANCE... -
Page 26: General Notes
MAINTENANCE RP850G / RP850D Ensure that operating materials and replaced GENERAL NOTES parts are disposed of safely and in an environmentally-friendly way. Careful maintenance: increased service life Before commencing work on any electrical increased function equipment, disconnect the battery and cover it reduced downtimes with insulating materials. -
Page 27: Maintenance Schedule
MAINTENANCE RP850G / RP850D MAINTENANCE SCHEDULE (Hatz = l/ Honda = t) Intervals Daily 20 Hours Works Hours Hours Hours Hours Required Clean machine Check engine oil level Change engine oil (first time) Clean oil filter (first time) Check air filter... -
Page 28: Lubrication Schedule
MAINTENANCE RP850G / RP850D Lubrication Schedule Lubrication Point Quantity Change intervals Lubrication O rder No. (operating hours) Engine Oil Honda 1.1 liters 100 * API SG-CE 806 01 100 SAE 10W 40 Engine Oil Hatz 1.1 liters 250 * API SG-CE... -
Page 29: Maintenance Work (Honda Engine)
MAINTENANCE RP850G / RP850D MAINTENANCE WORK (Honda Engine) 8. Allow the engine to run for approximately 1 minute and check oil level again with engine Attention: Only the maintenance work that has to be switched off. performed daily is included in this operating manual. -
Page 30: Maintenance Work (Hatz Engine)
MAINTENANCE RP850G / RP850D Danger: Checking the engine oil level NEVER use fuel or cleaning solutions with a low flash point for cleaning the filter element! DO NOT smoke in the working area, avoid open fire and sparks - fire and explosion... -
Page 31: Cleaning
MAINTENANCE RP850G / RP850D 3. Check the filter element for damage to the filter paper and check sealing surfaces. Change damaged filter elements. 4. Clean filter housing and lid. Attention: NEVER run the engine without the air cleaner - rapid engine wear will result Make sure that no dirt or foreign bodies get into the suction opening to the motor. -
Page 35: California Proposition 65 Warning
CALIFORNIA PROPOSITION 65 WARNING: Operation of this equipment and/or engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - 35 -... - Page 36 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 585-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 2002 Stone Construction Equipment, Inc. Printed in U.S.A. GP1M...
