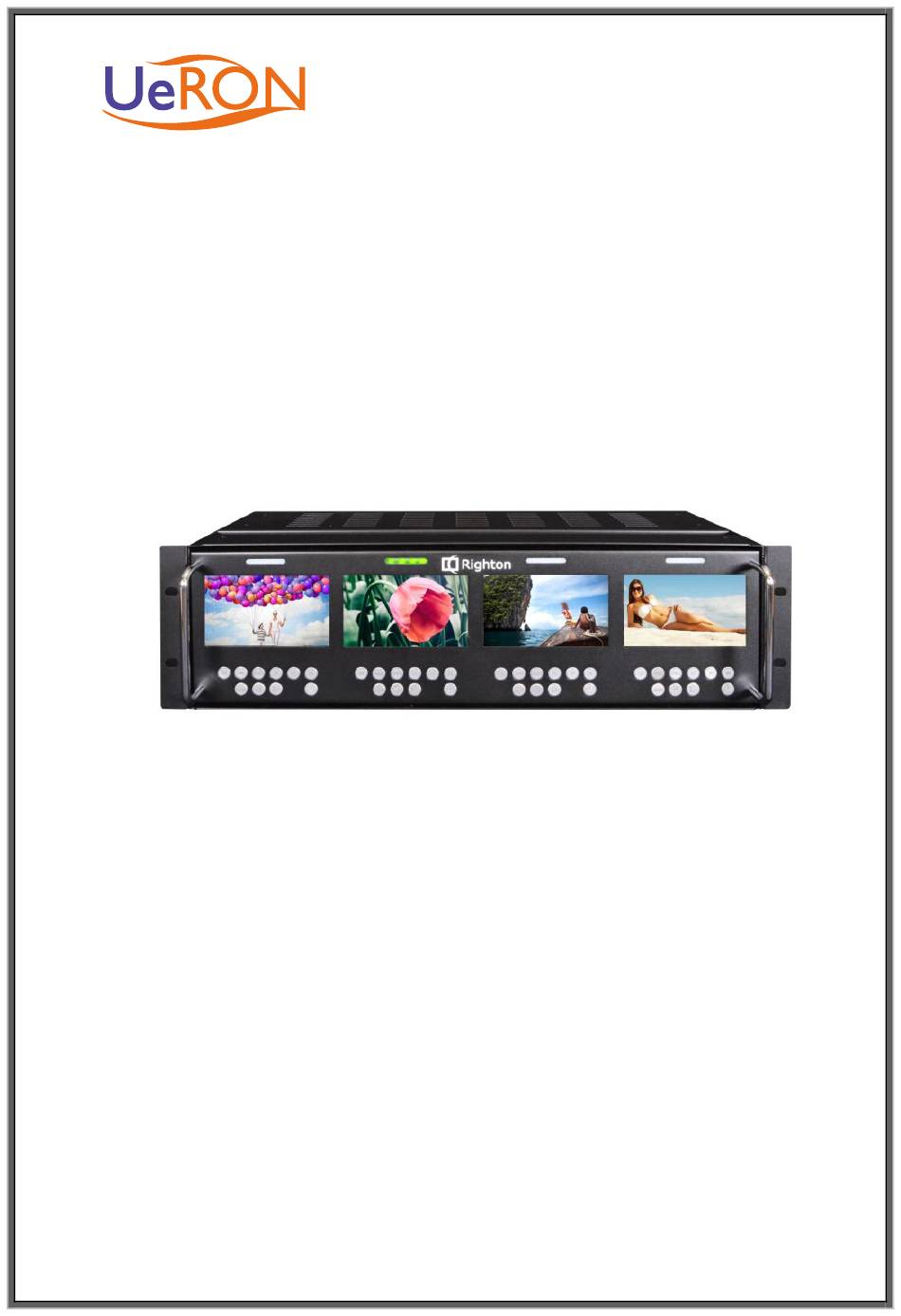

- Page 1 UeRON INTERNATIONAL COMPANY http://www.ueron.com.tw Broadcast 3G SDI Monitor 3G-9443 User Guide V1.001...
-
Page 2: Table Of Contents
INDEX 1. Electrical Specification….………………. …...01 2. On Screen Control Function….…..………….03 3. Menu Functions ……………………….…….04 4. Rear view of connectors……………………..06 5. Tally Control ..……………..………………...06 6. Mechanical Dimension…..…………………. 07 7. Accessories…………………………………..08... -
Page 3: Electrical Specification
1. Specification Input 1 x D-SUB VGA IN 1 x BNC 3G/HD/SD SDI Auto-switch 1 x HDMI HDMI IN 3 x BNC YPbPr 1 x RCA Analog Input 1 x Mini-Din S-Video 1 x D-SUB( 9 pin) Tally Input Output 1 x BNC 3G/HD/SD SDI Channel (Active Through Out) Input... - Page 4 Size 4.3" Display Area 93 x 55.8 mm Resolution 800 x 480 (16:9) Dot Pitch 0.297 mm Color 16.7M colors 200cd/㎡ Luminance of White Contrast 400:1 Response time 20 msec Viewing Angle (Typical) H: 160 degrees ; V: 130 degrees Power AC 100 - 240V (50 / 60Hz) Power Consumption (Approx.)
-
Page 5: On Screen Control Function
2. On Screen Control Function TALLY indicator 1. PC: Select VGA input. 2. V1: Select Video 1 ( Composite Video ) input. 3. V2: Select Video 2 ( S-Video ) input. 4. YPbPr: Select YPbPr ( Component ) input. 5. HDMI: Select HDMI input. 6. -
Page 6: Menu Functions
3. Menu Functions Brightness Adjust the brightness of screen. Adjustment range 0~15. Contrast Adjust the contrast of screen. Adjustment range 0~100. Color Mode Adjust independent R.G..B Color level. Color- R Color- G Color- B Saturation Adjust the Saturation of screen. Adjustment range 0~100. - Page 7 Marker On/Off Select 4:3/16:9 Safe Area marker. Reset Reset the setting back to factory default. Exit Save your personal setting and exit to menu mode.
-
Page 8: Rear View Of Connectors
4. Rear View of connectors 5. Tally Control Pin define Direction of Dub 9 pin. Configuration of Tally. P5 P 4 P 3 P 2 P 1 Display 1 Pin 1 & Pin 6 Display 2 Pin 2 & Pin 7 Display 3 Pin 3 &... -
Page 9: Mechanical Dimension
6. Mechanical Dimension Unit：mm... -
Page 10: Accessories
7. Accessories 1. Power Supply 12V/5Ampere 2. Power core ( US or Europe Lead )
