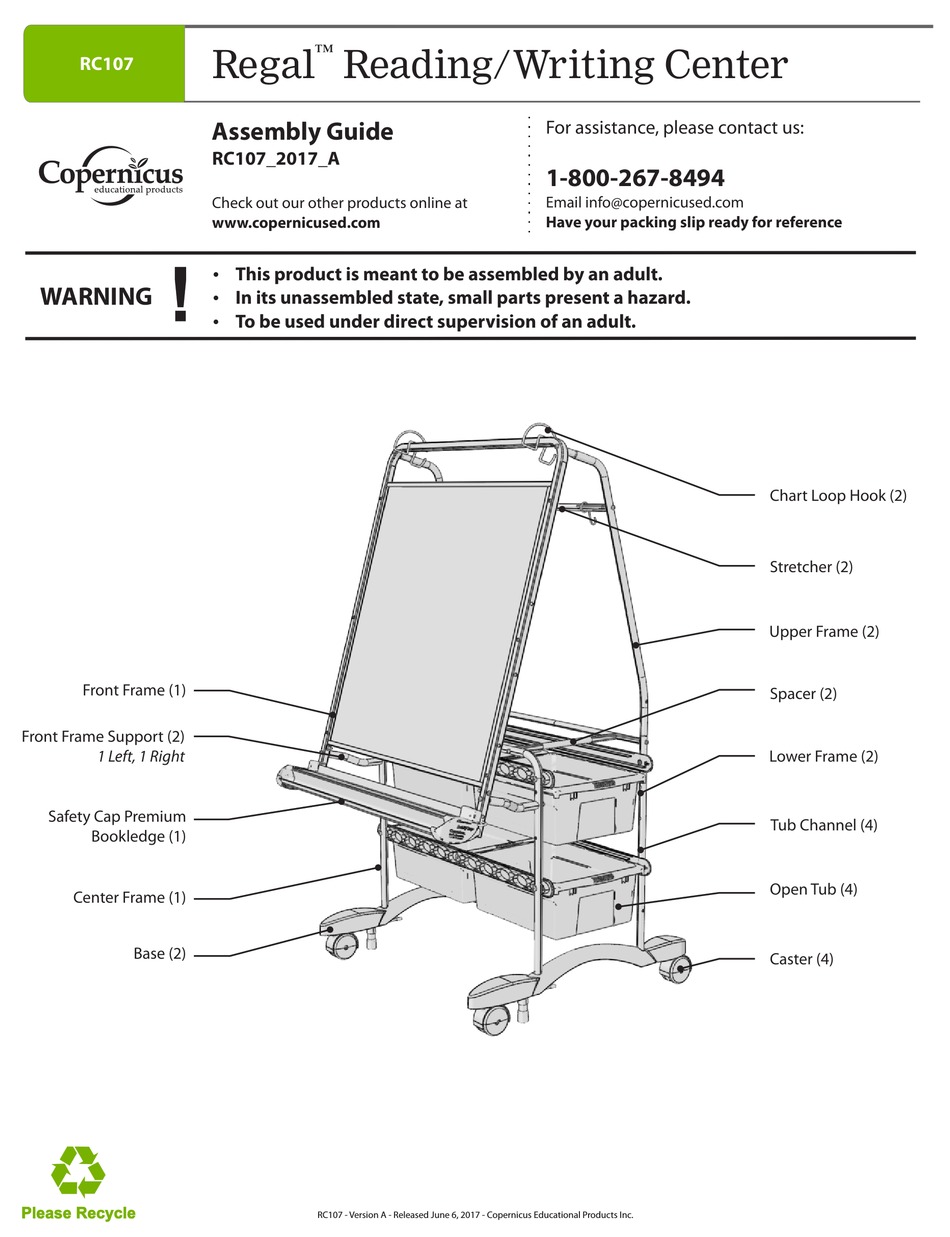

RC107
WARNING
Front Frame (1)
Front Frame Support (2)
1 Left, 1 Right
Safety Cap Premium
Bookledge (1)
Center Frame (1)
Base (2)
Please Recycle
™
Regal Reading/Writing Center
Assembly Guide
RC107_2017_A
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Chart Loop Hook (2)
Stretcher (2)
Upper Frame (2)
Spacer (2)
Lower Frame (2)
Tub Channel (4)
Open Tub (4)
Caster (4)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Copernicus Regal
Summary of Contents for Copernicus Regal
- Page 1 1 Left, 1 Right Lower Frame (2) Safety Cap Premium Tub Channel (4) Bookledge (1) Open Tub (4) Center Frame (1) Base (2) Caster (4) Please Recycle RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
- Page 2 Dear Educator, ™ Thank you for purchasing one of our products. I hope that the Regal Reading and Writing Center is useful in your classroom. If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com.
- Page 3 72 consecutive hours. Turn off power strip before unplugging. Specifications Read the electrical specifications of any electronic equipment you are using with your Copernicus products. Failure to read these specifications and follow their instructions could result in damage to your equipment or personal injury.
- Page 4 (Not to Scale) Removable Rear Whiteboard Front Frame Support 1 Left, 1 Right Contents - Box 2 Open Tub Chart Loop Hook Rear Whiteboard Hook 3” Caster RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
-
Page 5: Tips For Assembly
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com Email our Tech Support Service Check out some of our other great products! www.copernicused.com RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc. -
Page 6: Install Casters
Center Frame Install Center Frame & Rear Frame Lower Note - Left & Right stickers on the frames Black sticker & indents Tighten bolts always face outward RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc. - Page 7 Note - Before securing the stretcher, install hooks directly onto stretcher through the loop end. Note - When installing the stretcher on the upper frame, ensure hooks face back of unit! Stretcher Back of unit RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
- Page 8 M6 x 15mm M8 Lock Washer You will need: (Not to Scale) Tub Channels Bottom Install Tub Channels Note: Fasten both ends of each Tub Channel RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
-
Page 9: Install Spacers
1. Slide whiteboard as far up as it will go. 2. Slide whiteboard channel up to bottom Tighten bolts of whiteboard. 3. Fasten the whiteboard channel in place. RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc. - Page 10 You will need: (Not to Scale) Safety Cap Premium Bookledge Install Book Ledge Note - the spring tension is designed to discourage children from unhooking the book ledge RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
- Page 11 You will need: (Not to Scale) Chart Paper Hooks Attach Chart Paper Hooks Place an empty hardware bag over the frame to avoid scratching the paint. RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
- Page 12 You will need: (Not to Scale) Rear Whiteboard Hang Rear Whiteboard Congratulations! Now you can go and enjoy your ™ Regal Reading and Writing Center RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
