Summary of Contents for Raxikol RYW-116

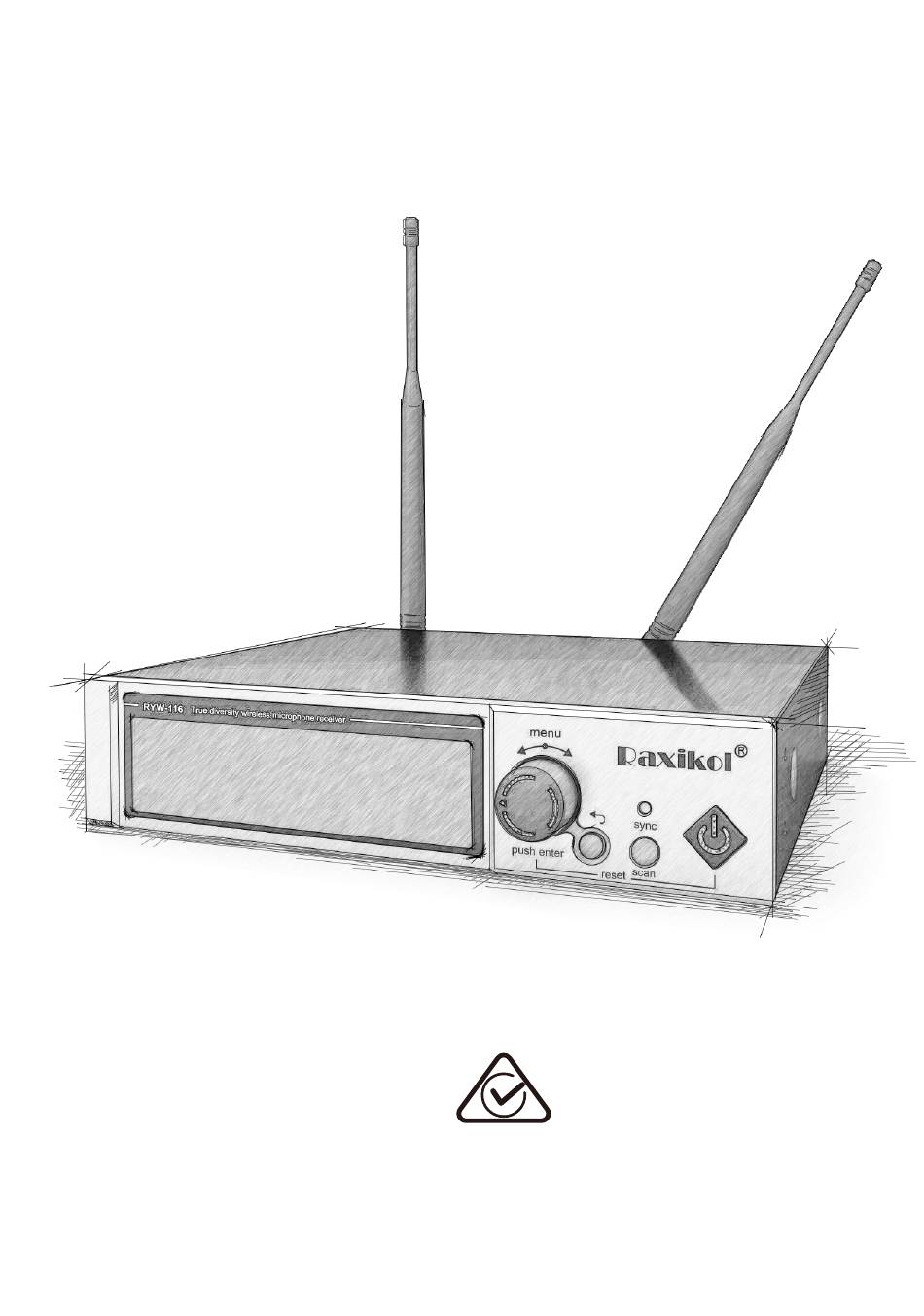

- Page 1 RYW-116 Operation Manual...
- Page 3 Receiver-Front Panel,Rear Panel Scan/IR synchronization IR Window Press and hold the key “SYNC/SCAN” to scan the optimum frequency.After (Short Press) SYNC, (Long Press ) SCAN scanning,then press short on the key “SYNC/SCAN” to finish the infrared synchronous operation. menu (Left and Right Spin) Selection;Press to confirm Factory Reset With the power off,press and hold the Return /Cancel Key...
- Page 4 Function for LCD of the Receiver Antenna Indication “B” BAND Transmitter Pilot Tone Squelch “Ch” Channel Battery Lock Mode / Temporary Unlock Press the “menu” button to choose the “UNLOCK” to confirm. Receiver Mute Equalizer Main Volume Transmitter Mute Audio Output Level “PEAK”=Overload...
- Page 5 O p e r a t i o n o f R e c e i v e r S E T Press the“ menu” button=OK/save ↗ m en u “SET” Key→Enter “menu” Key→Selection ↘ Press the“ ” button=cancel/return CHAN Channel Adjustment.The channel “U”...
- Page 6 H a n d h e l d T r a n s m i t t e r LCD display; IR Window. Power Switch/Mute Button “▲Up” Button, Short Press=Disaply Mode D isp l a y m o d e Ad ju s t th e g a in Battery Rack Long Press=Adjust the Gain...
-
Page 7: Accessories List
B o d y p a c k T r a n s m i t t e r P O W E R Mute Button Power Switch IR Window P O W E R M U T E L O W B AT T LCD Display I R I R Ad ju s t th e g a in... -
Page 8: Tips For Improving System Performance
Ｉｎｓｔｒｕｃｔｉｏｎ ｆｏｒ ｓｅｃｕｒｉｔｙ ａｎｄ ｗａｒｒａｎｔｙ １.Please read this operating manual carefully before installation and use,and keep this manual for later reference. ２.Cleaning:please turn off the power supply before you clean the units,and wipe with the dry and soft cloth. ３.Do not use any unmatched accessories without the permission of the factory. ４.Do not put the equipment on the enivironment of wet or high temperature to avoid risk to happening. -
Page 9: Technical Data
Technical Data Ｒｅｃｅｉｖｅｒ Frequency Range 641~698MHz 57MHz Switching Bandwidth Sensitivity -106dBm Dynamic 112dB(A) <1%(Without Cartridge) Receiver Principle true diversity Audio Output Level (Jack)+6dBV max;(XLR)+12dBV max Frequency Response Flat 60Hz~15KHz(-3dB);Low Cut/High Bosst(-3dB at 180Hz/+6dB at 10KHz) Handheld Transmitter Frequency Range 641~698MHz Switching Bandwidth 57MHz Peak Deviation... - Page 10 Dimensions Technical Data Technical Data Model Name Product Description Size Cover ≈1025g 45mm×210mm×172mm Stainless Steel RYW-116 Single Channel Receiver (Without Rubber Antenna) Height×Width×Depth 250mm×51mm Aluminium RYH-32 Handheld Transmitter ≈322g (Wihtout Bettery) Length×OD Fabrication 260mm×51mm Aluminium RYH-53 Handheld Transmitter ≈320g (Wihtout Bettery) Length×OD...
