Summary of Contents for Hadcock GH 228

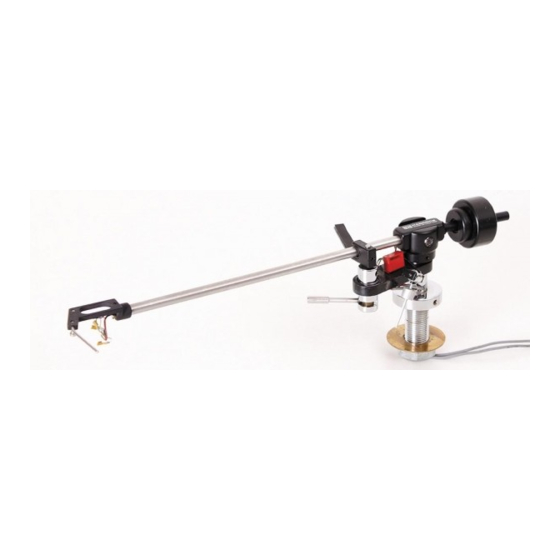

- Page 1 GH 228 Tonearm...
- Page 2 SPECIFICATION BOX CONTENTS Mounting hole 15.87mm dia (5/8”dia) Top arm tube complete with headshell and top pivot assembly Overall length 307.34mm (12.10”) Arm base with unilift assembled with captive arm lead Height 43mm - 90mm (1.7” - 3.5”) Ground lead Pivot stem length 86.4mm (3.4”) Main weight...
- Page 3 Fitting instructions...
- Page 4 1 ARM BASE ASSEMBLY 2 BIAS PULLEY WHEEL ASSEMBLY Use Mounting Template to determine position of the threaded flange (22) on the Undo the SOCKET CAP SCREW (15) with the ALLEN KEY (2mm) and fit the PULLEY arm mounting of the board of the turntable. Having placed the template over the WHEEL ARM with the SPACER (14) and refit to the PIVOT PILLAR (21).
- Page 5 4 FITTING THE HEADSHELL TO THE ARM TUBE 6 TOP ARM ASSEMBLY TO BASE ASSEMBLY Attach the HEADSHELL to the ARM TUBE and tighten the SET SCREW (5) near The whole top arm assembly can now be positioned onto the base assembly locating the end of the tube.
- Page 6 8 ARM HEIGHT ADJUSTMENT 10 BIAS WEIGHT ADJUSTMENT With the 1/16” ALLEN KEY slacken the set screw (29) in the ARM BASE FLANGE (22) The BIAS THREAD LOOP should be attached to the BIAS ROD (19) between the plastic and raise or lower the PIVOT SUPPORT (21) so that the ARM TUBE is parallel with the spacers.
- Page 8 C&C Hadcock Audio Division The Watermark Ribbleton Lane Preston Lancashire UK PR1 5EZ...
