Sibo Q896 Quick Start Manual

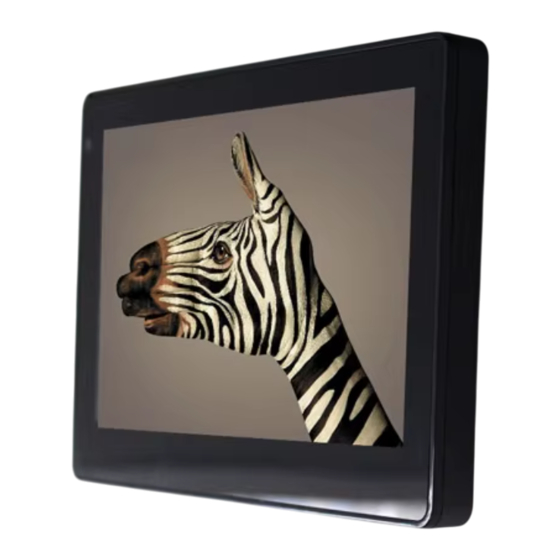

Wall Mountable Android Tablet PC Q896

1.1 Initial Setup

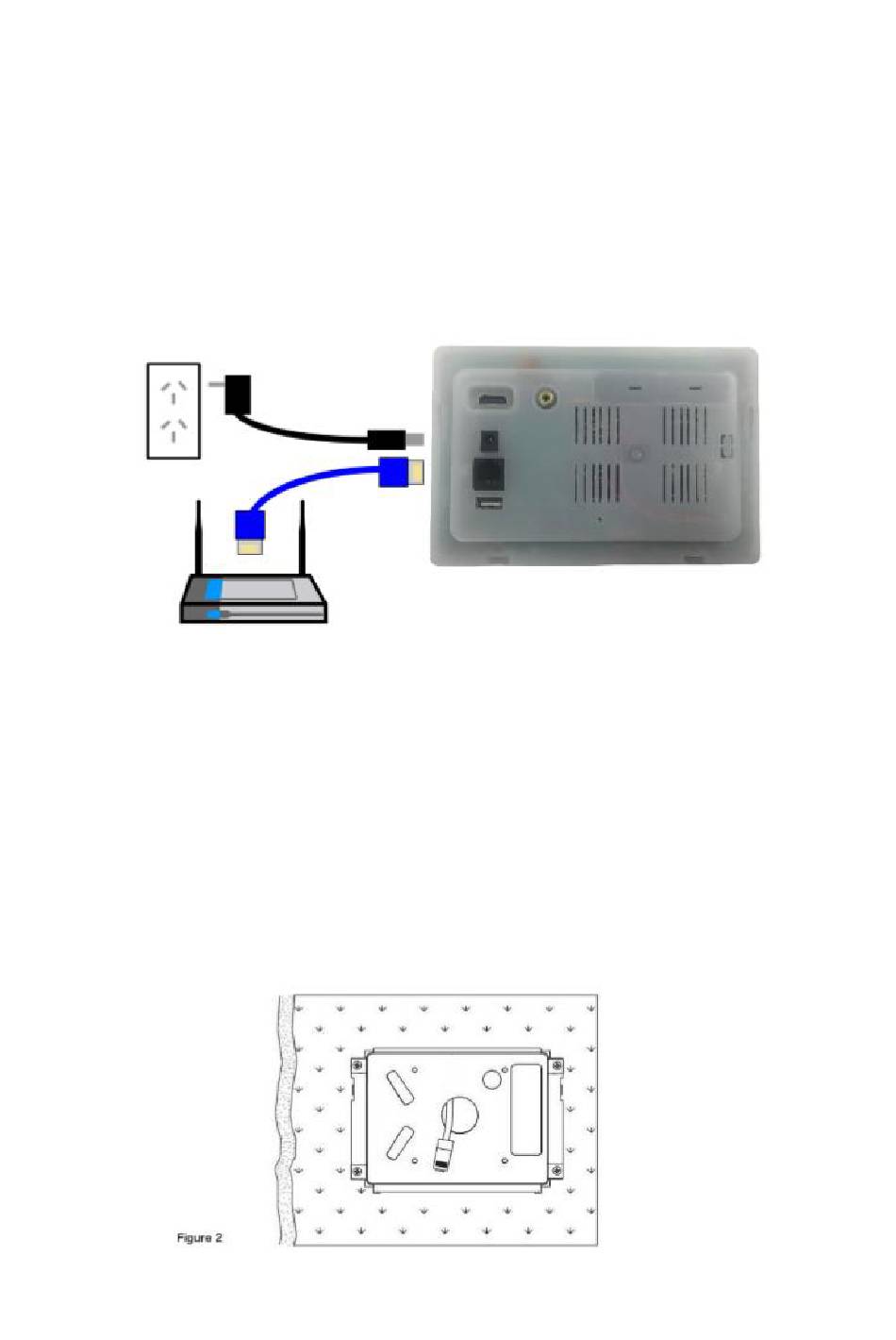

1. Connect the power and network using one of the following options:
A. Mains Power and Ethernet: Connect the ethernet cable (cable not included) to your network,
then plug the power cable into the tablet pc, as shown in the diagram.
B. POE: If using Power Over Ethernet (POE), connect the ethernet cable (cable not included) to a
powered port on your network, omitting the supplied power cable.
C. Mains Power and WiFi: If using WiFi, plug the power cable into the Tablet PC, omitting the
ethernet cable.
2. Once the power supplies, the Tablet PC auto boots up.

1.2 In-Wall Mounting the Tablet PC

The visible part of the Tablet PC in front of the wall measures 182mm W x 121mm H x 15mm D.
This bracket can also be used for surface mounting using the 75mm x 75mm VESA holes.
1. Make the cutout for the Tablet PC:
A. Make a cutout in the wall 160mm W x 104mm H x 21mm D, or use the in -wall bracket as a
template.
2. Install the mounting bracket into the cutout:
A. Insert the mounting bracket into the wall cutout with the flanges at the bottom. Use 4 screws
(not supplied) to fix the bracket to the wall.
