Summary of Contents for Sparktacular FX Machines SparkOne

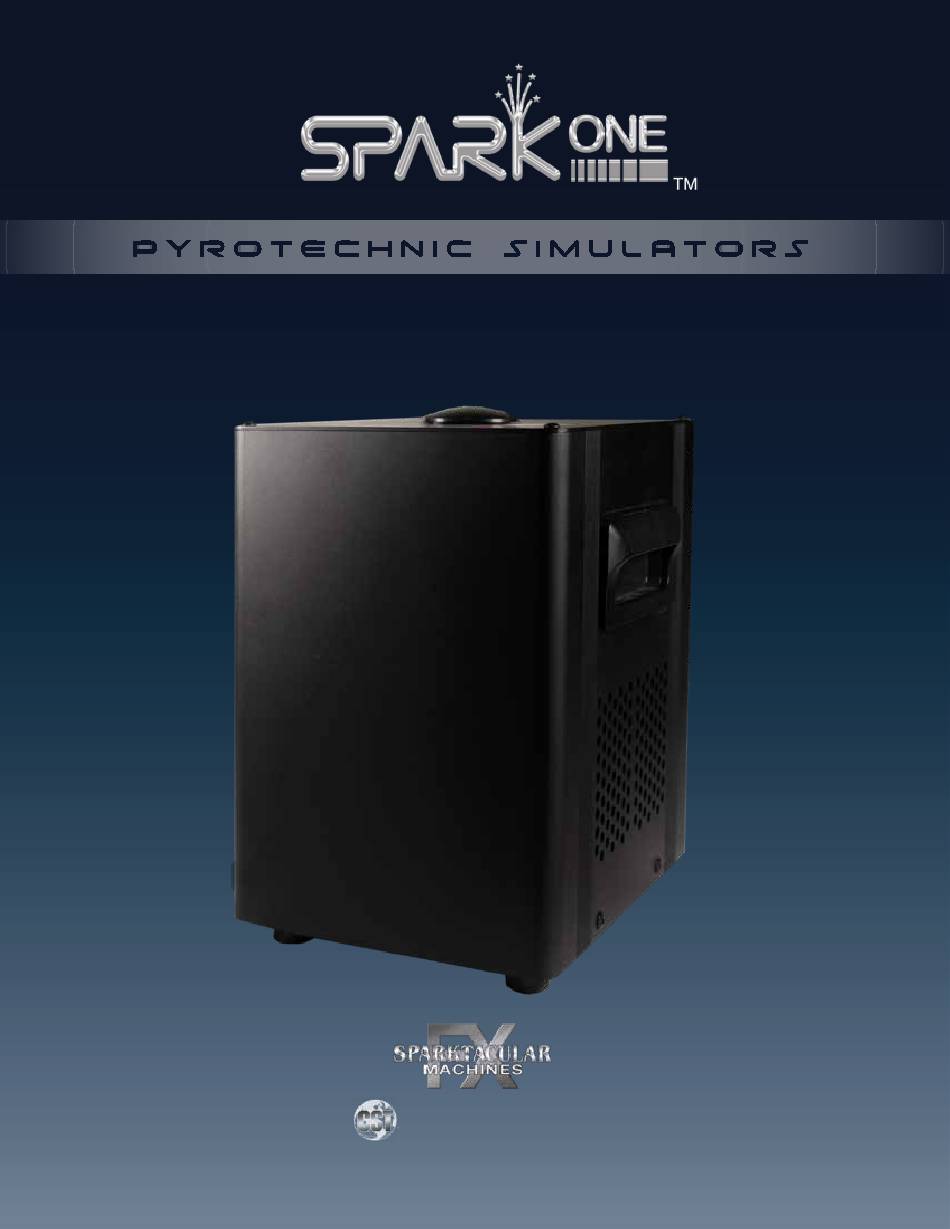

- Page 1 OWNERS MANUAL COLD SPARK TECHNOLOGY 877-792-1101 • SparktacularFXmachines.com...
- Page 2 If the granules ignite, the suggested method of extinguishing is by a Class D extinguisher or sand. If granules are activated DO NOT try to empty the SparkOne unit as the rush of air will initiate the granules into a spark. DO NOT use water-based or ABC extinguishers to put out granules. If granules are poured...
- Page 3 In Case of Emergency If an emergency arises in which the SparkOne machine(s) needs to be shut off immediately, hit the “Stop All” button on the touch screen controller to stop operating and turn the key to the "safe" position. Turn off all high voltage inside the SparkOne unit.
- Page 4 TABLE OF CONTENTS SparkOne Model (SH-03B) Safety and Warnings Read Prior to Use 2 - 3 Introduction of SparkOne System 4 - 5 Operations Panel Interface 7 - 8 Operations 9 - 11...
-
Page 5: Description Of Products
DMX CONTROLLER. 3 - Brief Introduction of the Functions a - The SparkOne is controlled through the DMX 512 standard. The SparkOne machine is designed to work on 2 DMX channels or 4 DMX channels. (selectable on unit and controller) b - The effect is adjustable by height, density, and duration. - Page 6 “SAFE” position will stop the effect immediately. To prevent anything from effecting cool down or impeding operation, do not cover the fountain nozzle, top or sides of the SparkOne unit. Please allow room around the machine for air to flow and air vents to breathe.
-
Page 7: Operations Panel
Caution: Machine produces sparks • Attention: La machine produit des étincelles DOWN Minimum 10ft distance from audience. Subject to local authority requirements. Sparktacular FX Machines The indicator will change from Au moins 3 mètres de distance du public La reglementation de la 17698 Bee Line Hwy distance finale est réservé... -
Page 8: Main Interface
E3 P Temp. Over The equipment stops due to the over-heat of the chassis E4 Time Remain The SparkOne is low on shot time remaining E5 K Temp. Over The equipment stops due to overheating of the heating assembly E6 Heating Failure Heating system may have issues. -
Page 9: Advanced Interface
Interface Advanced Interface OPTION SCOPE ILLUSTRATION Set Temperature 520-560 Default setting 550 Density@ Height 1 Adjusts the Value of the Granular feed or density #1* Density@ Height 2 Adjusts the Value of the Granular feed or density #2* Density@ Height 3 Adjusts the Value of the Granular feed or density #3* Density@ Height 4 Adjusts the Value of the Granular feed or density #4*... - Page 10 System Preparation and Start Fill the SparkOne units with granules Fill granules into the hopper on the top of SparkOne unit. The hopper has a maximum storage capacity of 150 grams of granules. Please Note that there are 2 sizes of the granules 1) Medium and 2) Large. They are of different meshes, and the effect height varies from 6.5ft to 17 feet depending on what granule size is used.
-
Page 11: Power On Controller
HEAT DMX IN DMX OUT POWER IN (12.OA) POWER OUT (6.5A) To activate the SparkOne unit, the RFID card needs to be scanned at the closest possible distance. Once activation succeeds, the remaining usage time of the machine will be 4 Activate Machie displayed on the screen. -
Page 12: Start System
CLEAR MATERIAL MUST BE PERFORMED AFTER EVERY USE TO AVOID DAMAGE!!! • Switch power off on SparkOne unit. Remove chamber cap on top of the machine and have containment material in place for the granules (can be a piece of paper, bag, jar, etc).
