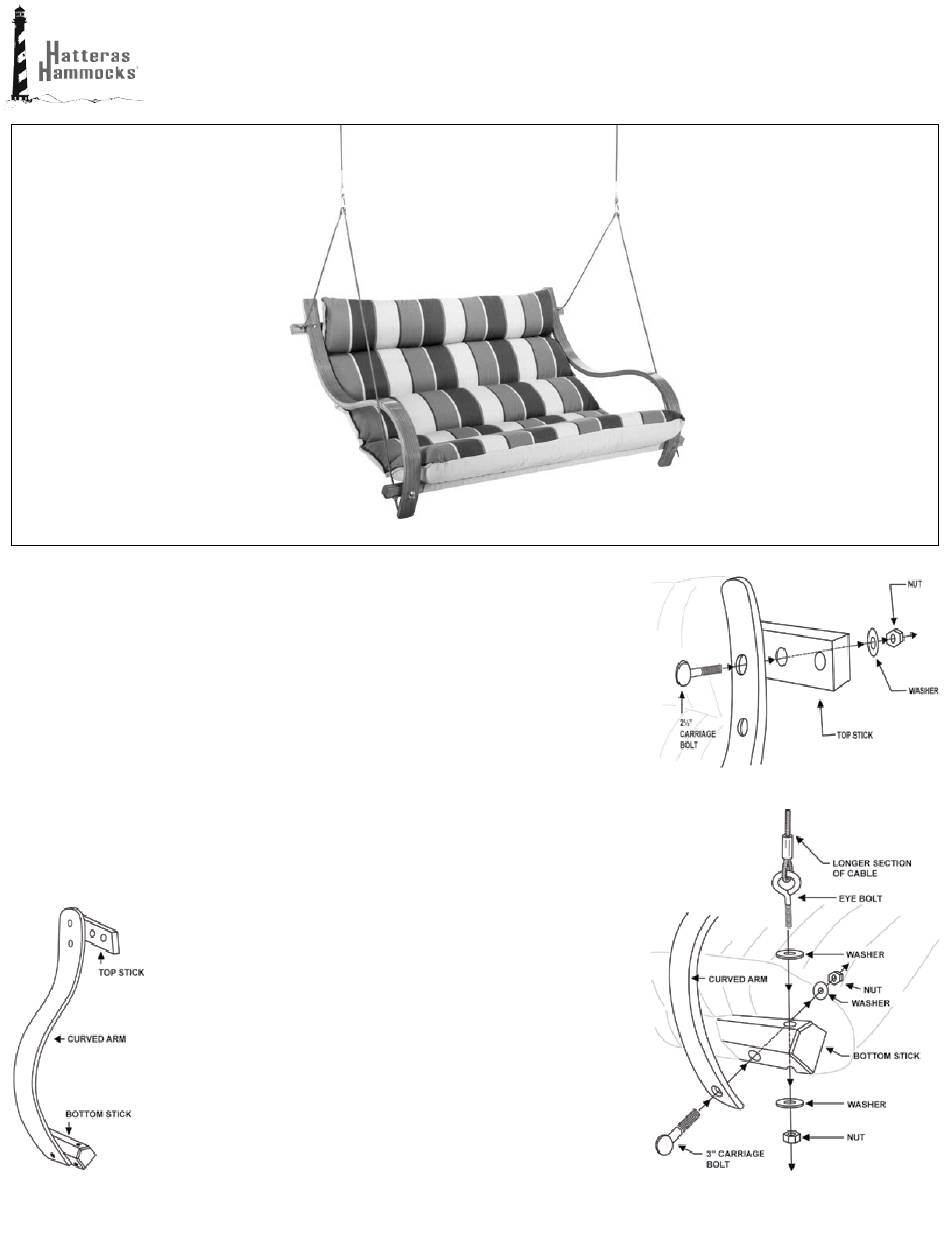

Deluxe Cushioned Double Swing
Weight limit: 450 pounds
PARTS LIST
Before beginning assembly,
check that you have all parts!
YOUR BOX SHOULD CONTAIN:
1 - Double Swing Cushion
1 - Oak Top Stick (4 Sided)
1 - Oak Bottom Stick (5 Sided)
2 - Curved Oak Arms
2 - Hanging-Cable Assemblies
1 - Hardware Pack:
2 - 3" x 3/8" Carriage Bolts
2 - 2½" x 3/8" Carriage Bolts
2 - 1¼" x 3/8" Carriage Bolts
10 - 3/8" Nuts
14 - 3/8" Washers
2 - Tree Hooks (with eye bolts)
2 - S-Hooks
2 - 1½'Extension Chains
Congratulations on your purchase of a Hatteras Hammocks® Deluxe Cushioned
Double Swing! We believe you'll find it a product of unsurpassed quality, durabil-
ity and relaxation potential, a source of enjoyment for you and yours for years to
come! Once assembled, your new swing is designed to be hung from one of the
quality swing stands that we offer, or it may also be hung from a wood beam (or
tree branch) sturdy enough to support at least 450 pounds.
ASSEMBLY INSTRUCTIONS
NOTE: If you plan to hang your Hatteras Hammocks® Deluxe Cushioned Double
Swing on a swing stand, it's a good idea to assemble the stand, according to its
instructions, before beginning assembly of your swing itself.
STEP 1. Insert the Oak Top Stick through the top fabric sleeve at the back of the
Double Swing Cushion (the sleeve attached to the smallest section of cushion).
Next, slide the Oak Bottom Stick into the fabric sleeve at the bottom front of
the cushion (the sleeve attached to the largest section of cushion). The narrow-
est part of the Oak Bottom Stick should be facing upward (into the curve of a
Curved Oak Arm, once installed); improper positioning can
lead to chafing and tearing of cushion fabric.
STEP 2. To connect the Curved Oak Arms, first position each
arm so the end with the two holes is at the top (
Next, insert (from front to back) a 2½" Carriage Bolt through
the Curved Oak Arm's topmost hole, and then through the
second hole from the end on the Oak Top Stick (
Add first a Washer and then a Nut to the protruding end of the
bolt, hand-tightening only.
STEP 3. To connect the other end of the same Curved Oak
Arm to the Oak Bottom Stick, insert (from front to back) a 3"
Carriage Bolt through the single hole at the bottom of the
arm, and then also through the second hole from the end on
the Oak Bottom Stick (
FIGURE 1
Nut to the protruding end of the bolt, hand-tightening only.
TOOLS YOU'LL NEED:
9/16" wrench or socket,
or adjustable wrench
(not included)
). Add first a Washer and then a
FIGURE 3
ADDITONAL TOOLS FOR HANGING
SWING FROM A WOOD BEAM:
NOTE: If you're NOT hanging
your swing from a Hatteras
Hammocks ® swing stand and
instead are installing it onto a
wood beam or tree branch,
you'll need a few additional
tools (also not included):
• Drill with 1/8" or 3/16" bit
).
FIGURE 1
).
FIGURE 2
Instructions continue on back of page
Questions about our
products? Please call our
toll-free customer service
line at (800) 643-3522.
Visit us online at
hatterashammocks.com.
• Adjustable wrench
OR full-sized screwdriver
FIGURE 2
FIGURE 3
