Summary of Contents for Silverdale Belgravia Low Level

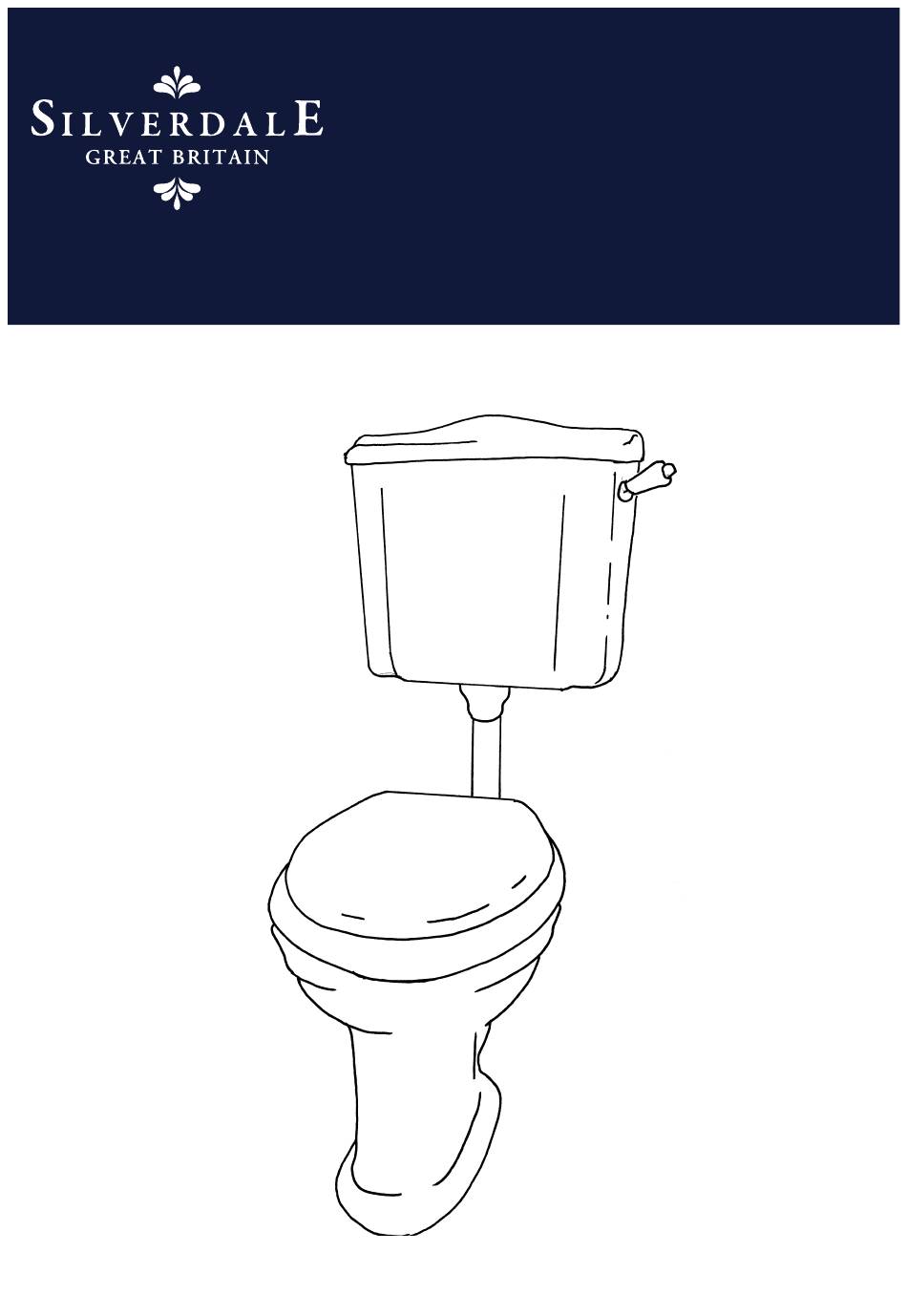

- Page 1 Low Level W.C INSTALLATION INSTRUCTIONS...
-
Page 2: General Information
Installation Instructions GENERAL INFORMATION: ON RECEIPT OR YOUR W.C SUITE: ON RECEIPT YOUR W .C SUITE: Please inspect all ceramic items for transit damage prior to installation. Do not attempt to install Please inspect all ceramic items for transit damage prior to ins stallation. - Page 3 Installation Instructions Identify the lever that your cistern requires and assemble as per instructions Side Lever Pass the lever through the hole in the cistern Slide the siphon link through the hole in the lever Tighten the nut to secure ensuring parrallel Remove the split pin and washer from the assembly using pliers...
- Page 4 Installation Instructions Measure the appropriate height on the wall and scribe a parallel line appropriate for Belgravia Balasani Victorian Nouveau Due to production tolerances check the distance between centers is correct to your If a different height is required adjust as necessary then cut the Pipe to suit remembering that the top of the pipe should only locate into the tail of the...
- Page 5 Installation Instructions Push the embellisher and oring up to cover the assembly Place inlet seal onto the base of the Place the pipe into the back of the Make the appropriate plumbing connections to waste outlet and Place the pan into position and mark the hole positions, remove the pan Drill and plug the holes with a 7mm Replace the pan and assemble as...
- Page 6 Installation Instructions Flush the WC once, check for leaks...
- Page 7 Tel: 01782 717175 Silverdale Bathrooms Facsimile: 01782 717166 UK Manufacturers of Luxury Ceramic Brands Email: sales@silverdalebathrooms.co.uk WEB: www.silverdalebathrooms.co.uk Silverdale Road Newcastle under Lyme Staffordshire ST5 6EL...
