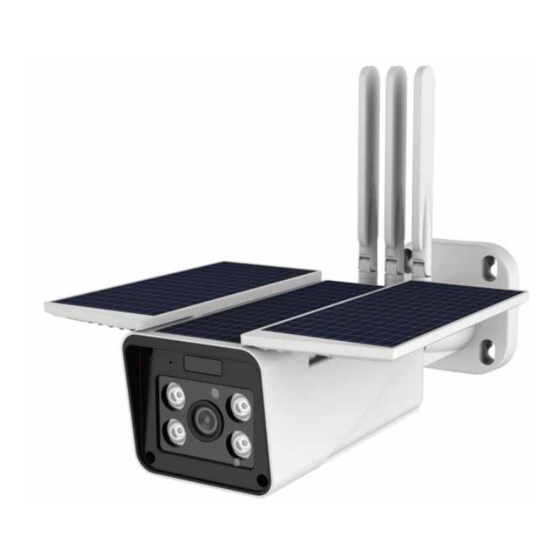

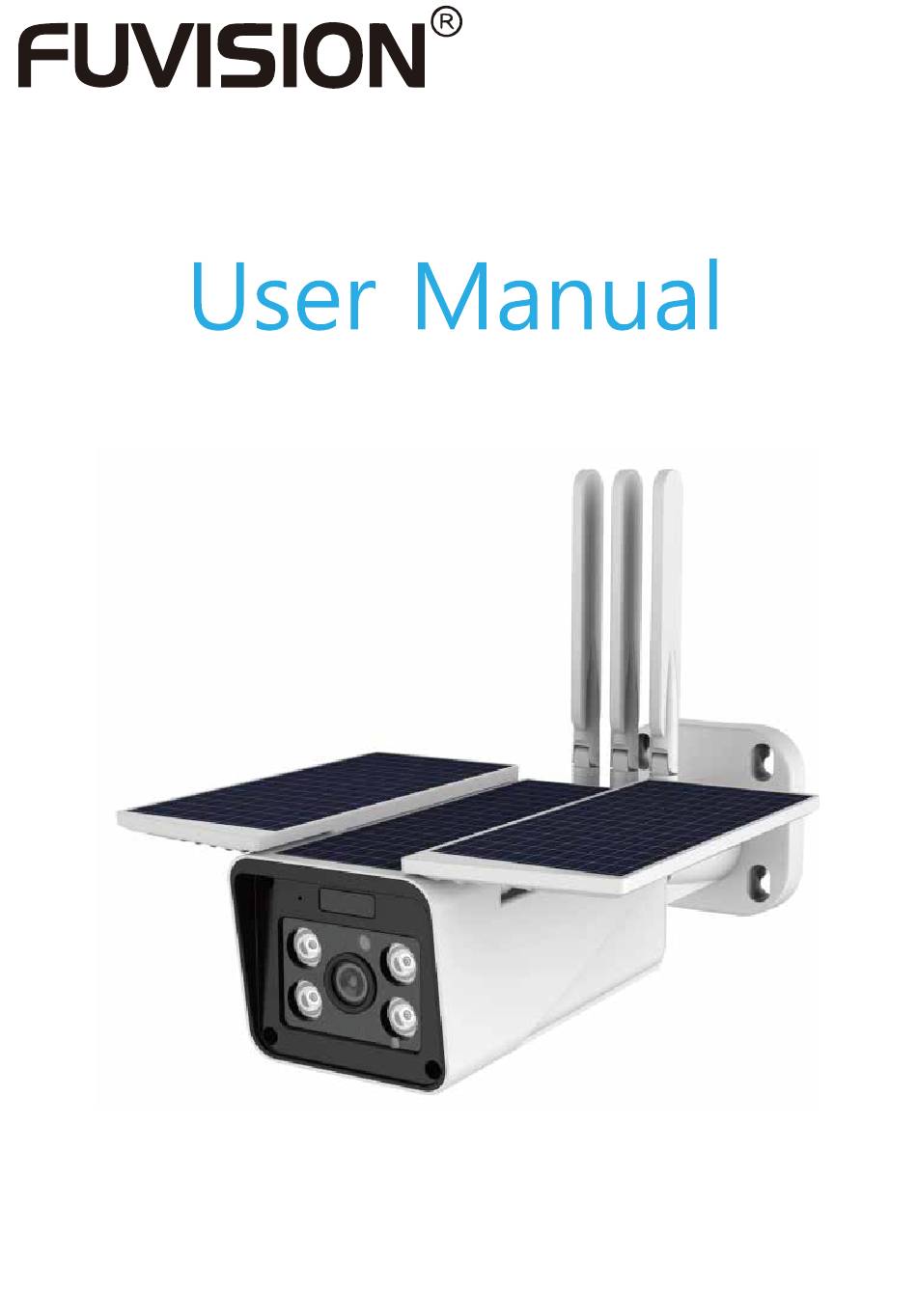

- Page 1 Solar Powered Security Camera Model：A9 Email: care@fuvision.net Facebook:https://www.facebook.com/FUVISIONCam...
- Page 2 Warm tips before you go: 1. A9 solar camera can only be set up with 2.4g Wi-Fi network. (It's ok to use Cell phone 4G data to live viewing it after the camera was set up with 2.4g Wi-Fi network firstly.) When the battery runs out, the camera can only turn on automatically after the camera is charged more than 4 hours.
-
Page 3: Product Diagram
Product Diagram Bracket Solar Panel Light Sensor Status Light Lens DC/5V DC/5V APP/WIFI APP/WIFI Charging cable to connect external solar panel... - Page 4 Charging Please charge the camera about 10-12 hours by plugging it into a power source using the provided USB cable. After connecting the camera with App, the App will indicate the battery status. DC/5V DC/5V APP/WIFI APP/WIFI lnsert SD card Please format the SD card to FAT32 format (Application to Windows system ONLY), then install the micro-SD card when the camera is off.
-
Page 5: Package Includes
Package Includes Camera 1 x Bracket 4 x Expansion Screws 1 x Allen key 1 x Allen key 1 x USB Cable Solar Powered Security Camera Model：A9 1 x User Manual... -
Page 6: Turn On The Camera
Make sure the distance between your phone,router and the camera is no more than 1.5 feet when you're ready to pair the camera.Ensure that the Wi-fi signal strength on your phone is good. 1.Download the App (works only with iOS & Android devices) Please locate the“... - Page 7 3.Pairing the camera with the App Please connect your phone to the 2.4Ghz wifi firstly before you pair the camera, make sure your router password in mind before you start the pairing process. 1) Click "Add a device" and then choose "Setup device", click "Yes", when you hear the following voice “...
- Page 8 3) Enter into the “search device” page, make sure to turn up you phone’s volume to the Maximum, you will hear the following voice: “Pairing Information Received”. What should you do if you can not add the camera to the APP successfully? 1.
- Page 9 5) Congratulations! Now you can live view the camera on your phone anytime and anywhere.
- Page 10 If you're unable to pair the camera, Please check below suggestions: 1.Please reset the camera (using the pin to reset the camera) to default after you fully charged the camera. 2.Please turn up your phone volume to the maximum,since the camera pair through sound wave. 3.Please put the camera,phone as near as to your router (within 1.5 feet) to get a strong wifi signal strength.
- Page 11 4.How to Share Your Camera And Password with More Users Share QR code After you finish the connection with the App, click choose “Share QR code” . Other users need to download the App first, and then scan the below QR code. Note: 1.Your camera password can be seen by the invited users,but they can not modify it.
- Page 12 Push Mode Silence: You could choose to mute all incoming notification or call in, all motion triggered videos will be saved properly to cloud storage or Micro sd card. Notification: Camera will receive notification and banner. Call in: Camera will receive call in sound and banners the same time with a “...
- Page 13 Micro sd card Video playback Please find the orange color for the video event and use two fingers to zoom out the timeline and then put the line to the head of the orange color and wait for the playback Zoom out to playback...
- Page 14 Check your camera signal strength If not satisfied with video smoothness, Check in App and signal strength in App is not strong, we would suggest adding wifi extender between the Router and the camera. Camera WiFi extender Router Recommended height to install the camera We suggest installing the camera about 8ft.
- Page 15 Adjust the bracket on the wall and then mark 4 holes for mounting. Fix the bracket to the wall by expansion screws. How to take apart the bracket?
- Page 16 How to fix the solar panel ? The solar panel can be adjusted in 0-90 degree angle.Use the Alley Key to fix the panel. 1 x Allen key...
- Page 17 Image Quality Resolution 1080P Lens Lens angle FOV 160° Specifications Video format H.264 Video Frames per 15fps Specifications second SD card 8GB-Max 64GB support Output Built-in speaker Audio Intput Built-in microphone Communications WiFi 2.4GHz Battery capacity 10000mAh Standby time Max 8-12 months Battery Power 6W(run)/...
- Page 18 System Android 2.3 above/ iOS 7.0 above Suppport PIR angle FOV 120° PIR range 16ft Range Up to 32ft Night Vision Continuously daytime Max 36 hours recording time Working time for fully charged Continuously night vision Max 14 hours recording time Waterproof IP grade IP66...
- Page 19 1.click ,you could live viewing videos. Important: Please keep the Cloud Storage turned on to ensure the camera's time kept synchronized with your phone's time.
- Page 20 Wifi signal strength contact FUVISION support team for a replacement Tips: Please make sure your camera at support@fuvision.net.net All friendly customer has a full bar of wifi strength to service staffs are ready to assist you.
- Page 21 Screenshot: Click to screen capture and pictures will be saved to your phone's album. Two-way Talk:Click to speak to visitors and hear what they say. Manual Recording: Click to manually record and the videos will be saved to your phone's Album Setting: Click to inter into device settings.
- Page 22 SD Card Setting 1) Please turn on the cloud storage so that you can sync the camera time with your phone. 2) Please format the micro sd card before you installed it.The camera doesn't support plug and play.So please make sure to power off the camera and then install your card.
- Page 23 Environment You can choose to set it as Normal, back light compensation, night IR, High light compensation or Dynamic according to your actual light environment of installation place. A lb u m Sw itch C ru ise Vo ice S e ttin g s PIR Detection You can set the PIR sensitivity as Disabled,Low,Medium and High.
- Page 24 A lb u m Sw itch C ru ise Vo ice S e ttin g s Dormancy Time 1) This is the time you could set for the video length recorded to micro sd card. 2) Not dormant: If you choose this option,you will not allow the camera enter into standby mode,the camera will keep recording all the time until battery drains out.
- Page 25 LED Lamp When you choose Enable,the Blue LED will light up to indicate when you operate the camera as it should be.When you choose Disabled,the Blue LED will not light up to indicate the operations or trigger motions.It is recommended to set it as the default A lb u m Sw itch C ru ise...
- Page 26 Device Name and Password: You can set a desired name for your camera and set the password to protect your camera's privacy. A lb u m Sw itch C ru ise Vo ice S e ttin g s Click “Check for update” to update the app to the newest version. The newest version app will fix some bugs of the software we encountered.
- Page 27 1. Videos can be saved in Cloud Storage: (1). The videos of PIR activity You could save 20 videos of PIR activities per day in cloud storage, which can be saved for 7 days and then will be overwritten. 2. Videos can be saved in the SD card: (1).
- Page 28 Q1: Why do I fail to connect the camera to the App by sound wave? A: 1. Please reset the camera by the pin included. 2. Please make sure the camera is powered on and there will be voice prompts that indicates it. 3.
- Page 29 Emai: care@fuvision.net...
