Basalte Eve Plus 0131-CC Installation Manual

EVE Plus wall base USB
Installation Manual
Description
The Eve Plus wall base USB connects to the Gigabit PoE adapter (0610-20, not included). An iPad in a sleeve (not included) docked
to the wall base will connect to the local network and use power over ethernet (PoE) to charge. This enables the iPad to receive
both data and power over a single ethernet cable when connected to a PoE-enabled switch or a PoE injector.
The standard sleeve cable needs to be replaced with the one enclosed with the Gigabit PoE adapter to allow data
transfer between iPad and sleeve.
For more detailed information on the ethernet possibilities, see the Eve (plus) Gigabit PoE adapter (0610-20, not included) manual.
Safety instructions
Before installing the unit, read this manual thoroughly and retain it for future reference.
The device should be installed in compliance with official regulations valid in country of use.
The device may only be installed and connected by qualified electricians.
Ensure that electricity is switched off when installing or unmounting the device.
Do not open, dismantle, alter or modify the device.

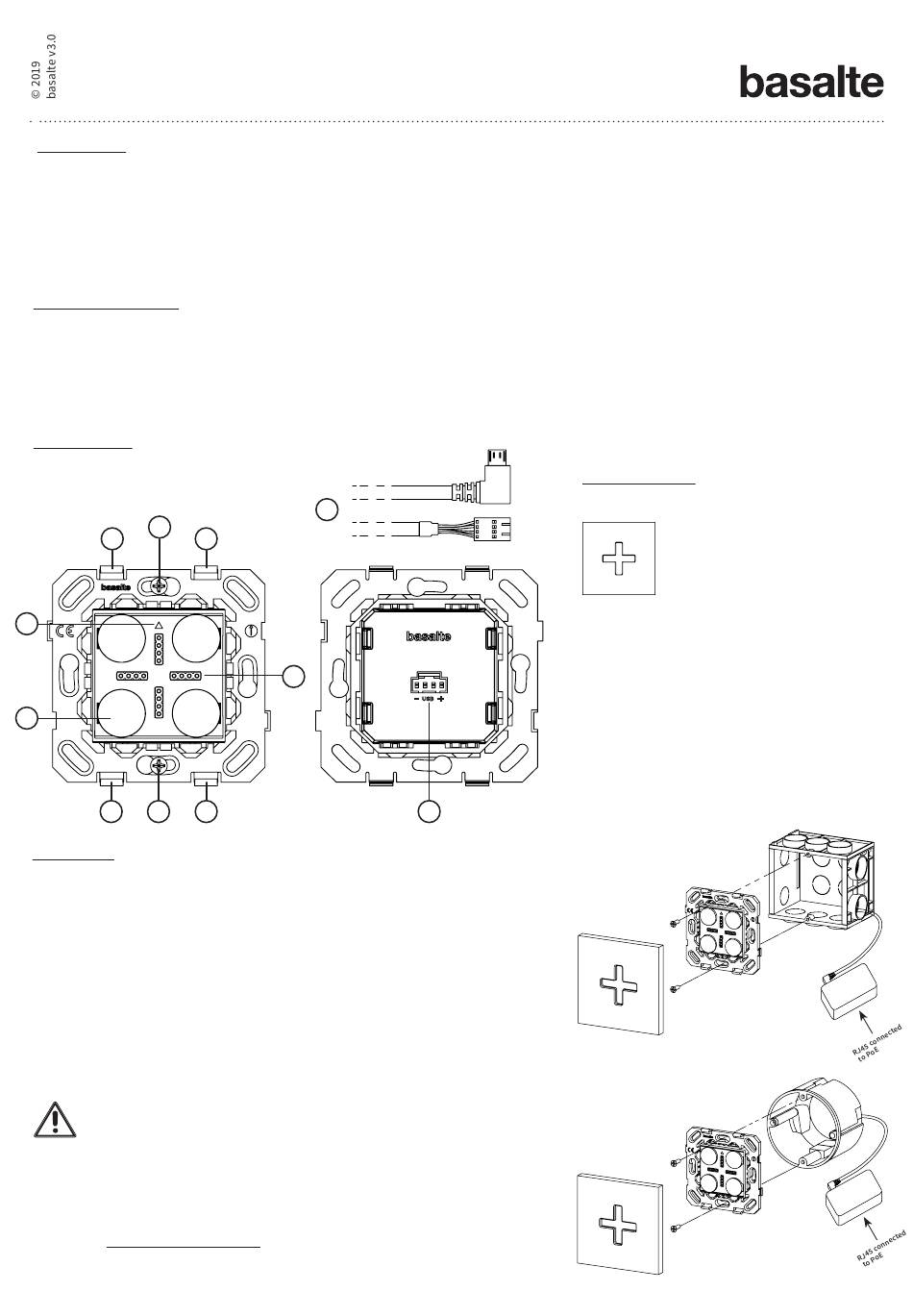

Components
A
B
D
E
B A
Wall boxes
The wall base should be installed in European wall boxes with screws.
The distance between the screws needs to be 60mm, and a minimal depth
of 45 mm is required.
Square wall boxes size 60 x 60 mm are compatible with the sockets.
Round wall boxes should have an inner diameter of 64mm or more.
The following round wall boxes are compatible with the Basalte sockets :
• Helia round with cut hole 68 mm (type 247, 261).
• Kaiser round with cut hole 68 mm (type 9063-xx, 9064-xx, 9062-xx).
• Legrand batibox round (ref 080051, 080061, 080052, 080053).
• ABB round Hafobox MD4050 and hollow wall boxes HW-50, HW50-G,
HW52-F (Except HW52-F IGD and HW52-F BW).
When using other round boxes, please verify the compatibility upfront.
Do not use following wall boxes:
• Helia O-range
• Kaiser (1055-xx – 1056-xx)
• ABB 3040
• ABB HW52-F IGD and HW52-F BW
0610-20 Gigabit PoE adapter
*
(not included)
G
B
C
B
Eve Plus Cover
(not included)
A Opening to fix the outlet to the wall box
B Clips to mount the cover plate
C Charging connector for Eve Plus sleeve
D This sign up
E Alligning magnets
F USB connector
G Eve Plus wall base USB to Gigabit PoE
F
Model No. 0131-CC
adapter micro USB cable
*
*
