Summary of Contents for Wren HYPERION HYP-PP180R-B

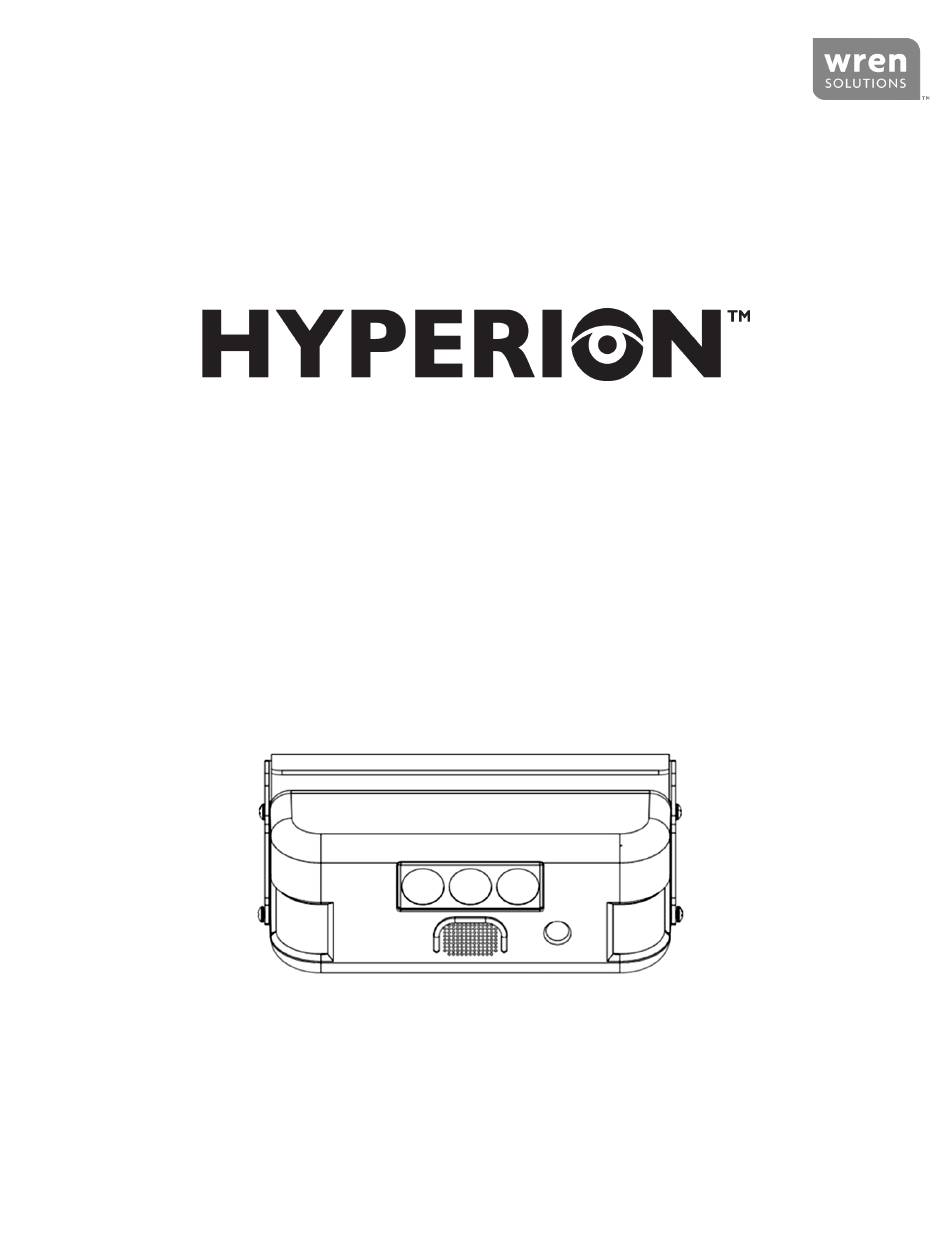

- Page 1 NSTALLATION UIDE YPERION ERIMETER ETECTION HYP-PP180R-B Hyperion Wireless PDU Installation Guide www.wrensolutions.com 7L778 Rev A 200428...
- Page 2 Wren®. the Wren logo, Hyperion® and the Hyperion logo are conformité, les opérations au plus près que cette distance ne sont pas trademarks of Wren. The trademarks that are followed by ® are recommandés. L’antenne utilisée pour cet émetteur ne doit pas être registered trademarks in the U.S.
- Page 3 OMPONENT Prior to installation, verify that all hardware is included. If there are missing components, please contact Wren. Hyperion Radio Power Supply Hyperion PDU w/ antenna EQUIRED OOLS AND CCESSORIES Cables (CAT5 or higher) Drill #2 Phillips screwdriver DENTIFY EVICE MOUNTING LOCATION Mounting Surface The PP180 should be mounted to a structurally solid, vertical wall surface.
- Page 4 DENTIFY YPERION ADIO MOUNTING LOCATION Mounting Surface The Hyperion Radio should be mounted indoors to a structurally solid surface. When selecting a mounting location, take care to ensure that there are no obstructions, especially solid metal surfaces in the immediate vicinity of the radio and antenna.
- Page 5 OUNTING THE DEVICE Expose the mounting bracket by removing the 2 upper positioning screws and rotat- ing the housing down. Mount to the desired location using #10 size fasteners and the appropriate wall anchors (if required). Re-install the upper positioning screws.
- Page 6 ENETRATION Drill an appropriate sized wall penetration to pass a CAT5 ethernet cable from the device to the radio. ABLING Cabling Specifications Maximum cabling distance is 100 feet. Cabling should be minimum CAT5 rated and at least 24AWG. Cabling Procedure Run a length of CAT5 or greater cabling from IHYP-PP180R-B to the Hyperion Radio.
- Page 7 ONNECTING EVICES NOTE: NOT E • THESE ARE THERNET PORTS • NSURE THAT ALL CABLING ONNECTIONS HAVE BEEN CERTIFIED BEFORE ATTACHING TO ANY DEVICES ONNECT EVICE ONNECT OWER Use the provided power supply to apply power the Connect the CAT5 cabling to the device and to the radio.
