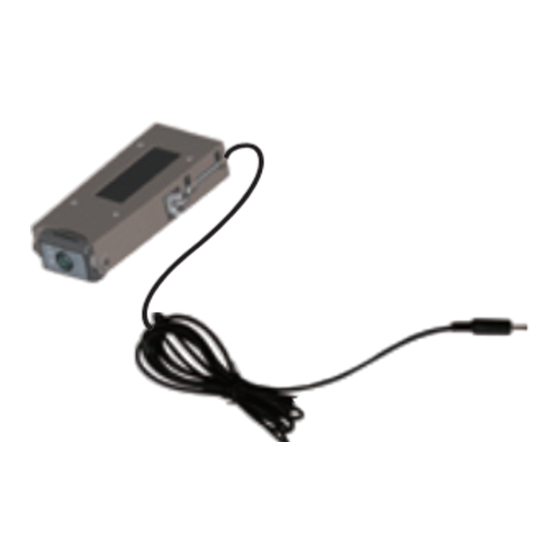

Summary of Contents for Car Solutions CAR DVR
- Page 1 Smart View System Competitive Accident Recorder Instruction Manual Model No. : CAR DVR car-solutions.com support@car-solutions.com...
-
Page 2: Table Of Contents
CONTENTS Introduction................ 1 Features................1 The.VehicleView.Camera.System.Kit......... 1 Testing.Before.Installation..........2 Caution................2 Installation............... 3-6 Operation................ 7-8 Configurations..............9 Specifications..............10 Recording.Filer..............10 Note..................11 car-solutions.com support@car-solutions.com... -
Page 3: Introduction
G sensor and up to 36 fi les overwrite function for 26MB.SD.card Overwrite.recording..function.with.0.seconds. High.image.quality.of.AVI.recording.by.MJPEG.engine. Support.up.to.2G.SD.card.(SD.card.doesn't.support.SDHC.format) The VehicleView camera system kit Standard accessories: Camera Manual Smart View System Competitive Accident Recorder Instruction Manual Mode No. : CAR DVR Standard optional: Acetabula Screw pack car-solutions.com ~.1.~ support@car-solutions.com... -
Page 4: Testing.before.installation
VehicleView Camera Lens Mirror Switch Rivet Lock Screw Bracket Cable Record Button 3M Sticky Tape Acetabula Blue LED Red LED SD card lock Mode Switch SD Card Testing before installation It's.recommended.to.determine.the.best.position.before.permanent.instal- lation. Caution Do.not.attempt.to.remove.the.cover..Removing.the.cover.can.cause. components.damage,.and.invalidate.the.warranty..Always.disconnect.the. power.before.installation. car-solutions.com ~.2.~ support@car-solutions.com... - Page 5 VehicleView Camera Installation I .Tear.off.the.3M.sticky.tape. Fix.the.DVR.as.shown.on.the. picture. Insert.the.SD.card.to.the.slot. a:Format the SD Card first,then save the.FAT.formatted.text. b:Set the current time and the config to.SD.Card.. .Fix.DVR.to.the.bracket.with. screw. car-solutions.com ~.3.~ support@car-solutions.com...
- Page 6 VehicleView Camera .Connect.the.DC.12V.cable.to. the.cigarette.lighter.socket. When.you.determined.the.best. position.for.your.camera,you.can. fix the screw. car-solutions.com ~..~ support@car-solutions.com...
-
Page 7: Installation Ii
VehicleView Camera Installation II Secure.the.cupule.bracket.onto. DVR.body.with.screws Insert.the.SD.card.to.the.slot. a:Format the SD Card first,then save.the.FAT.formatted.text. b:Set.the.current.time.and.the. config to SD Card. Fix.DVR.to.the.bracket.with. screw. car-solutions.com ~..~ support@car-solutions.com... - Page 8 VehicleView Camera .Connect.the.DC.12V.cable.to. the.cigarette.lighter.socket. When.you.determined.the.best. position.for.your.camera,you.can. fix the screw. car-solutions.com ~.6.~ support@car-solutions.com...
-
Page 9: Operation
VehicleView Camera Operation .Insert.the.SD.card..Turn.the. knob.to.lock.the.card. (Note:.When.the.SD.card.is.not. inserted,.the.red.LED.will.turn.on. continuously.and.the.DVR.is. not.in.operation.) Connect.to.the.power. Record.Mode: 1..0.seconds.cycle.recording. mode Set. the. DVR. to. 0. seconds. cycle.recording. The recorded files will.be.stored.in.a.folder.named.with. YYYYMMDD. under. the. "CYCLE". . folder.after.recording. car-solutions.com ~.7.~ support@car-solutions.com... - Page 10 VehicleView Camera 2..Manual.recording.mode: Set. the. DVR. to. the. record- ing. mode. to. 20. seconds. manual. recording..The.blue.LED.will.turn. on. continuously. and. in. standby. mode. Press.the.Record.button.to.begin. recording. The blue LED will flash 2. times/second. with. the. “Beep. Beep” sound. The recorded files Push will.
-
Page 11: Configurations
VehicleView Camera Configurations: .Use.computer.to.read.the. SD.card Run.the.“OPCam.exe” Set customized time Set as system current time Set the image format Set the G sensor sensibility Set the maximum files in each recording mode File overwritten Select the playback file Playback Take.out.the.SD.card,.make.sure.DVR.power.off,.then.insert.SD.card.to. DVR...DVR.will.read.the.new.setting.automatic.cally car-solutions.com ~.9.~ support@car-solutions.com... -
Page 12: Specifications
VehicleView Camera Specification ITEM DESCRIPTION Model CAR DVR Image.Sensor 1/”..VGA..CMOS..Sensor.,10.bit.RGB. Number.of.Effective.Pixels 60(H)x80(V) S/N.Ratio./.Dynamic.Range dB./.60dB Resolution 00.TV.Lines View.Angle.In.. 108°x83°x1°(H*V*D) Computer(Fov) Up/down.Picture Yes.(by.setting) White.Balance(WB) Automatic.on.chip AE.Control Automatic.on.chip Video/Still.Image..Format AVI./.MJPEG. Recording AVI file when G-sensor trigger/ Manu records, AVI file is 15fps(30fps) and contain 15 seconds.before.trigger.and..seconds.after.trigger. -
Page 13: Note
VehicleView Camera Note: It.takes.900mA/10sec.when.power.on. Under.0.seconds.cycle.recording.mode,there.would.be.a.few.seconds. interval,between.each.recording.for.saving.each.vedio.to..the.SD.card. car-solutions.com ~.11.~ support@car-solutions.com...
