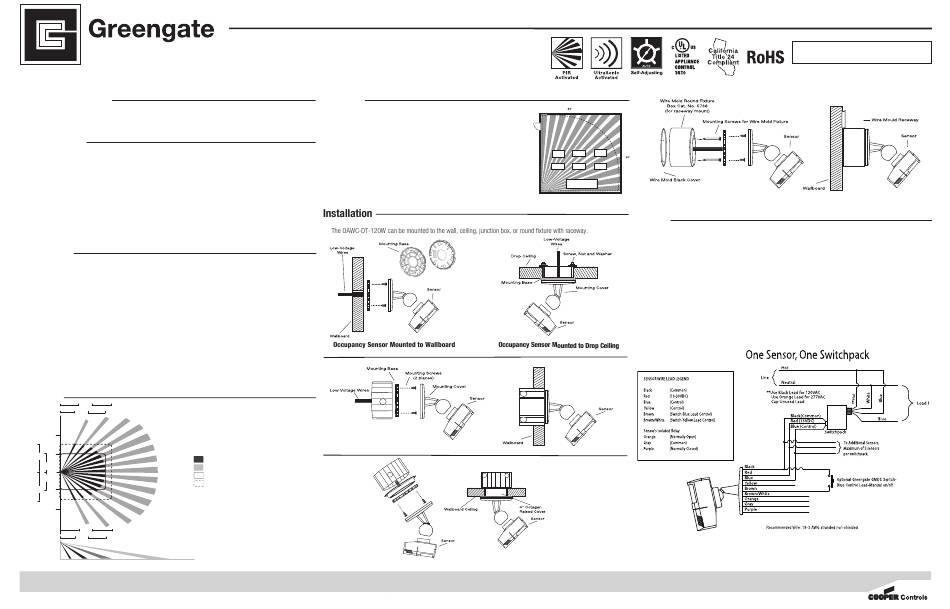

Cooper Controls Greengate OAWC-DT-120W Installation Instructions

General Information
• Read all instructions on both sides of this sheet first • For Use with Greengate Switchpacks & Systems Only.
• Install in accordance with ALL local codes. • Do not run any Greengate Low Voltage Wiring in the
• For indoor use only. same conduit as power conductors.
Specifications
Technology: Passive Infrared (PIR) and Ultrasonic (US) Coverage: 1200 sq. ft.
Power Requirements: Light Level Sensing: 0 to 300 foot-candles (- R model)
Input: Operating Environment:
• 10-30 VDC from Greengate Switchpack or Greengate • Temperature: 32° F – 104° F (0° C – 40° C)
system. Maximum current needed is 25mA per sensor • Relative Humidity: up to 90% non-condensing
Output: Housing:
• Open collector output to switch up to ten Greengate • Medium impact injection molded housing.
Switchpacks. BAS with Isolated Form C Relay (-R model) Polycarbonate resin complies with UL94V0.
Isolated Form C Relay Ratings: 1A 30VDC/VAC Size: 4.4" x 3.4" x 2" (112mm x 86.4mm x 50.8mm)
Time Delays: Self-Adjusting, 15 seconds/test LED Indicators: Red indicates PIR detection; Green
(10 min Auto), or Selectable 5, 15, 30 minutes indicates Ultrasonic detection
Description
The OAWC-DT Wall/Corner Mount Low Voltage Occupancy Sensor is a Passive Infrared (PIR) and Ultrasonic (US) motion
sensing lighting control, used for energy savings and convenience. PIR is used to turn the lights ON and then either or both
technologies are used to keep the lights ON. When motion is detected, the blue wire is electronically connected to the red
wire, energizing the relay in the switchpack to turn on the load. If vacancy is detected, the blue wire is disconnected from the
red, causing the relay to open turning off the load. The red lead is 10-30 VDC supply, the black lead is common, and the blue is
the relay control.
The sensor includes self-adaptive technology that continually adjusts to conditions by adjusting sensitivity and time delay in
real-time.
The Daylighting feature (-R model only) prevents lights from turning ON when the room is adequately illuminated by natural light.
Walk-Through feature maximizes energy savings by not leaving the lights ON after momentary occupancy. The sensor will
switch the lights ON when it detects a person entering the area. If the sensor does not continue to detect motion 30 seconds
following the initial activation, it will automatically go to a shorter 2 minute time delay.
In Automatic ON Mode, the lights turn ON when a person enters the room. In Manual On Mode, the lights are turned ON
by activating a momentary switch (model # GMDS-*) that is connected to the sensor. When used with 2 level lighting (-R
model only), bi-level Automatic-on can be achieved which allows Zone 1 to come ON automatically upon occupancy. Zone 2
does not come ON unless the occupant presses the optional momentary switch.
Coverage
24'
(7.3 mm)
20'
(6 mm)
12'
(3.7) Minor Motion, IR
8'
(2.4 mm) Major Motion, IR
0
Minor Motion, Ultrasonic
8'
(2.4 mm)
Major Motion, Ultrasonic
12'
(3.7)
24'
(7.3 mm)
20'
(6 mm)
10 ft
(3 mm)
24 ft 50 ft
6 ft 15 ft
(1.7 mm) (4.6 mm) (7.3 mm) (15.3 mm)
Cooper Controls
203 Cooper Circle, Peachtree City, GA 30269
800-553-3879
www.coopercontrol.com
Dual Technology Wall/Corner Mounted Low
Voltage Occupancy Sensor
Location
The maximum coverage area may vary somewhat according to room shape
and the presence of obstacles. Follow the coverage diagram concerning major
and minor motion coverage. Decrease total coverage area by 15% for "soft"
rooms (for example, heavy draperies or heavy carpeting). The sensor must have
a clear view of the area to be controlled. The sensor will not "see" through
glass. Mounting height should not exceed 12 feet. Optimum mounting height is
10 feet. Mount the sensor so the grilles face the open portion of the room and
are not facing a nearby wall, door, window, or other obstructing object. Avoid
pointing into hallways. To prevent false activation, the sensor should be mount-
ed away from the air supply duct a minimum of 4 to 6 feet. Mounting at fixture
height is most effective. For typical placement refer to Location Diagram.
Occupancy Sensor Mounted to Octagon Box
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
The NEMA WD 7 Guide and robotic
method were utilized to verify
coverage patterns.
Occupancy Sensor Mounted to Octagon Box with Mud Ring
Installation Instructions
Occupancy Sensor Mounted to Round Fixture with Raceway
Location Diagram
Wiring
CAUTION: Before installing or performing any service on a Greengate system, the power MUST be turned OFF at
the branch circuit breaker. According to NEC 240-83(d), if the branch circuit breaker is used as the main switch
for a fluorescent lighting circuit, the circuit breaker should be marked "SWD". All installations should be in com-
pliance with the National Electric Code and all state and local codes.
NOTE REGARDING COMPACT FLUORESCENT LAMPS: The life of some compact fluorescent lamps (CFLs) is shortened
by frequent automatic or manual switching. Check with CFL and ballast manufacturer to determine the effects of cycling.
1. Make sure power is turned OFF at the branch circuit breaker.
2. Wire units as shown in wiring diagrams per applicable voltage requirements. (Use twist-on wire connectors
for all connections) CAP ALL UNUSED WIRE LEADS.
3. Mount unit to wall, ceiling, junction box, or round fixture with raceway.
4. Turn power back ON at the branch circuit breaker and wait 2 minutes for the unit to stabilize.
5. Make necessary adjustments. (See Checkout and Adjustments section)
Model # OAWC-DT-120W
Model # OAWC-DT-120W-R
