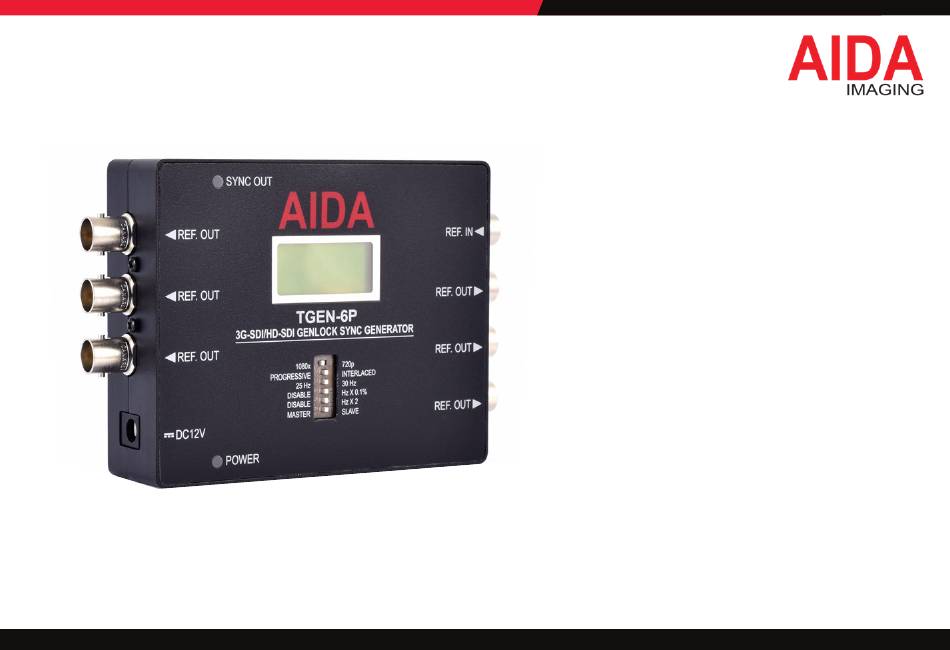

- Page 1 Gen-Lock Reference SYNC Generator TGEN-6P OPER ATI ON GU I DE Version 1.0 / April 2020 Reproduction of this manual, in whole or in part, by any means, is prohibited.
- Page 2 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
- Page 3 Warning continues Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center.
- Page 4 TGEN-6P...
-
Page 5: Operation
• Versatile, compact, and rugged design. OPERATION • SLAVE Mode When switch 6 is set to SLAVE, TGEN-6P will go to SLAVE mode. External reference input will be the main reference sync source. TGEN-60 will distribute external reference sync signal. - Page 6 720p SETTING 1080i SETTING...
- Page 7 1080p SETTING...
-
Page 8: Specification
SPECIFICATION SYNCHRONIZATION PHYSICAL Reference Out Control Tri-Level HD Dip-switches & Text LCD Format Operation Temp 1080p 60/59.94/50/30/29.97/25Hz 32° F - 104° F Dimension 1080i 60/59.94/50Hz 129mm x 86m x 29mm / 5.07” x 3.38” x 1.10” Weight 720p 60/59.94/50/30/25Hz 278g / 0.61lbs Accuracy Power 2ppm... - Page 9 CONNECTION...
- Page 10 QUESTIONS Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
- Page 11 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
