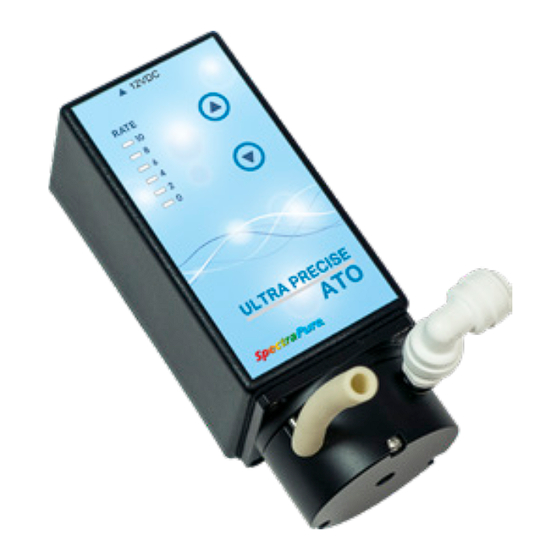

UltraPrecise Auto Top Off
Liquid Level Controller
(LLC-UPLC-ATO)
INSTALLATION MANUAL
06-19-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraPrecise ATO and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraPure UltraPrecise ATO

Summary of Contents for SpectraPure UltraPrecise ATO

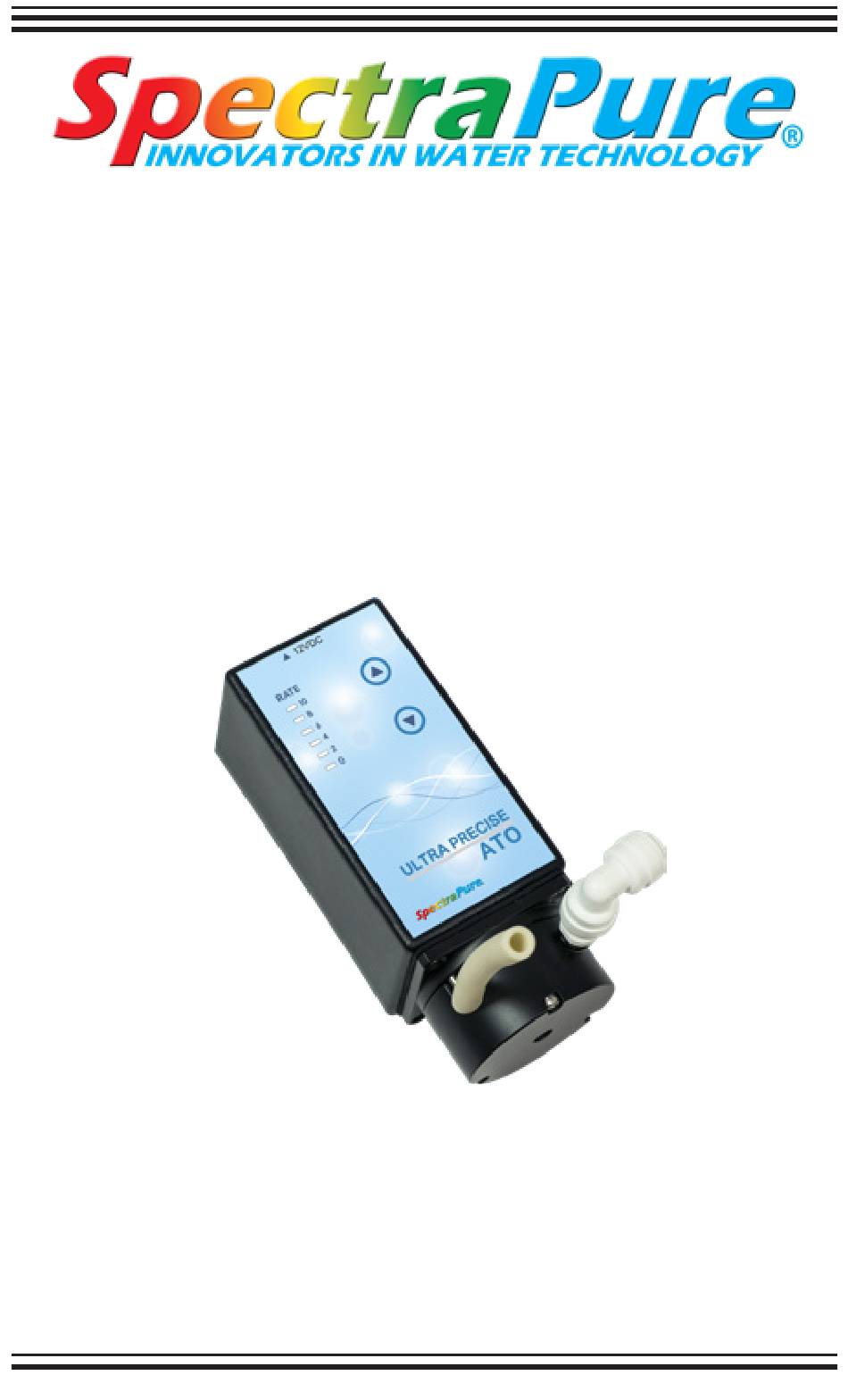

  • Page 1 UltraPrecise Auto Top Off Liquid Level Controller (LLC-UPLC-ATO) INSTALLATION MANUAL 06-19-2018...

  • Page 2: Table Of Contents

    ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc.

  • Page 3: System Features

    SpectraPure ® SYSTEM FEATURES • Highest Quality and Accuracy -- New and Improved “Gen 6” LiterMeter3 Pump machined to aerospace tolerances. Antiwear and anti- friction coated for exceptional pump life. • Fully automatic operation - May be programmed to fill a vessel or to drain a sump (Fill Mode/Drain Mode).

  • Page 4: Pump Connections And Controls

    SpectraPure ® PUMP CONNECTIONS AND CONTROLS: Pump Speed LED Indicator Lights Up /Fill (also indicate seconds pump runs when in Duty Cycle mode) Down /Drain Press fit the end of a piece of 1/4" OUTPUT polyethylene tubing to aquarium into the rubber inlet hose at least 3/4".

  • Page 5: Setup Diagrams

    SpectraPure ® SETUP DIAGRAMS: FRONT VIEW OF THE MAGNETIC PROBE HOLDER The high limit sensor will shut the pump off if the water level reaches the Position top of the bevel in the tube. the high limit sensor tube so any...

  • Page 6: Introduction

    SpectraPure ® INTRODUCTION: The Ultra Precise ATO (Automatic Top Off) unit works as either an ATO (Fill mode) or as a sump pump (Drain mode). It has an integrated peristaltic pump that is capable of pumping approximately 180 ml/min when running at full speed.

  • Page 7: Quick Setup

    SpectraPure ® FAMILIARIZING YOURSELF WITH THE ATO: (CONT.) You can cut the tubes in two and extend them with 1/4" OD x 1/8" ID vinyl tubing to an additional distance of fifteen feet. There are 6 lights, arranged vertically along the left side of the ATO. They are numbered 0, 2, 4, 6, 8 and 10.

  • Page 8: Setup

    SpectraPure ® SETUP: SETTINGS When the ATO is initially plugged in and powered up, the bottom light (0) will blink rapidly for three seconds before engaging the pump. At this time, the pump may be set for FILL or DRAIN mode.

  • Page 9: Duty Cycle Setup

    SpectraPure ® SETUP: (continued) 3. Position the Primary Sensor Tube in the water at the point on the tube where you want to set the “lower limit”. This will be the level where the pump will turn OFF. We recommend that you set this so that it is at least one inch from the open end of the tube.

  • Page 10: Pump Speed Settings

    SpectraPure ® PUMP SPEED SETTINGS The pump has been set at the factory to run at full speed when you first turn it on. At this setting, it will pump at the rate of about 180 ml./min. This may be adjusted in 10 steps. Step “1” is as slow as LEGEND the pump can safely run.

  • Page 11: Duty Cycle Settings

    SpectraPure ® DUTY CYCLE SETTINGS Duty Cycle is a function that will limit the time the pump is on in a 20 -second recurring period. This function adds more precision when controlling the amount of liquid that is being pumped.

  • Page 12: System Startup

    (See diagrams on Page 5.) SERVICING THE PUMP MODULE: These instructions apply to ALL SpectraPure Pump Products. It is recommended that the pump head be inspected and cleaned, or the tubing replaced per the following procedure. (Refer to images on pages 14 -15) 1.
  • Page 13 SpectraPure ® SERVICING THE PUMP MODULE: (continued) 5. If you are replacing the tubing assembly, remove the tubing from the pump head as shown in Fig. B-4. Replace the tubing assembly with a new tubing assembly. Reinstall by firmly inserting the tubing into the outlet port of the pump head as far as possible.
  • Page 14 SpectraPure ® SERVICING THE PUMP MODULE: (continued) Fig. B-1 Fig. B-2 Fig. B-3 Fig. B-4 Fig. B-5 Fig. B-6 SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
  • Page 15 SpectraPure ® SERVICING THE PUMP MODULE: (continued) Fig. B-8 Fig. B-7 Fig. B-10 Fig. B-9 Fig. B-11 Fig. B-12 SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 sales@spectrapure.com www.spectrapure.com...

  • Page 16: Troubleshooting

    FIVE-YEAR LIMITED WARRANTY: SpectraPure, Inc. warrants each new Ultra Precise ATO to the original owner only to be free of defects in material and workmanship for a period of 5 years from the date of receipt.
