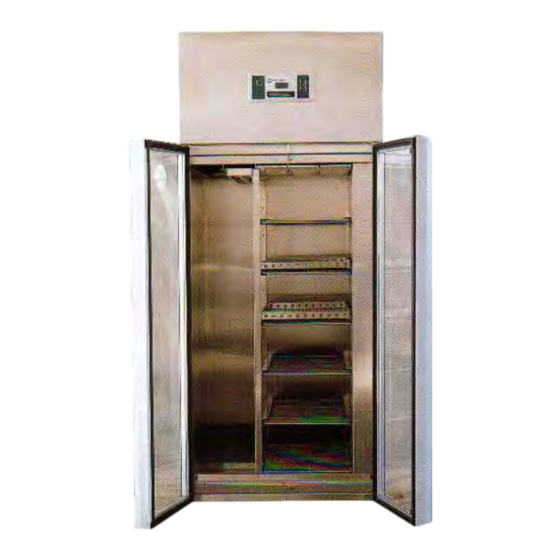

Summary of Contents for Malmet Drying Cabinet
-
Page 2: Table Of Contents
Section A – Unit Operation ................... 5 Section B – Unit Maintenance..................6 Trouble Shooting Guide ..................7 Wiring Diagram ....................8 Section C – Unit Installation ..................9 Unit Specifications ....................10 Malmet Warranty Statement..................11 Issue 15 Page October 2011... -
Page 3: Forward
Operation, Maintenance and Installation Manual Forward In order to obtain maximum life and efficiency from your Malmet Drying Cabinet and aid in the safe operation of the unit, please read and understand this manual thoroughly and follow all instructions before operating the unit. -
Page 5: Section A - Unit Operation
Operation, Maintenance and Installation Manual Section A – Unit Operation NOTE The Drying Cabinet is factory set to 70° C Before starting the Unit The unit should be run initially on a power supply not protected by an earth leakage circuit breaker for approximately three hours. -
Page 6: Section B - Unit Maintenance
Drying Cabinet Operation, Maintenance and Installation Manual Section B – Unit Maintenance Preventative Maintenance Daily Wipe out inside doors and chamber with warm water and detergent. Wipe over outside panels with stainless steel cleaner. Weekly Remove filter on air intake (top right hand side panel) and wash in warm water and replace when dry. -
Page 7: Trouble Shooting Guide
Drying Cabinet Operation, Maintenance and Installation Manual Trouble Shooting Guide Problem Probable Cause Suggested Remedy Display not on or wont turn on. No Mains power supply. Check power supply and lead plugged in. Power point not turned on. Check power switched on. -
Page 8: Wiring Diagram
Drying Cabinet Operation, Maintenance and Installation Manual Wiring Diagram Issue 15 Page October 2011... -
Page 9: Section C - Unit Installation
Cabinet clearance space dimension (eg at least 150mm per side and 500 mm on top) are to be provided for the appliance. Drying cabinet sides are to fit through the wall cavity ensuring that the power cord and filter are not obstructed. Placement should be typically 150mm from the operating panel side doors. There is to be a 5 to10mm gap between the side panel and the timber. -
Page 10: Unit Specifications
Drying Cabinet Operation, Maintenance and Installation Manual Unit Specifications Volts 240V Electrical Rating Phase / Hz 1 ph / 50 Hz Amps 13.8 Amps 15 Amp (into standard GPO 240 Electrical Connection IEC Power Cord with 3 Pin Plug Volt) -
Page 11: Malmet Warranty Statement
(and paid for) by the owner. • It is the owner’s responsibility to provide safe access to the unit. Malmet, or any of its authorised service outlets, may refuse to do maintenance or warranty work if access is unsafe. - Page 12 • All warranties are NOT transferable. • Unauthorised use of non-genuine Malmet Parts in units covered by Warranty will void all warranty and warranty claims. • To the extent permitted by law Warranty labour (service work) shall not include units located outside of city metropolitan areas and costs outside these areas shall be borne by the Customer.
- Page 13 Please attach your proof of purchase. Your receipt/invoice is your warranty and will be required to validate any warranty. E.&O.E. In the interest of continued product improvement, Malmet (Australia) reserves the right to alter specifications without notice. Issue 15 Page...
