E520.30 Programmable Smoke Detector Controller
Mar 25, 2015
1 What you get:
1. Smoke Detector
2. E520.30 Interface with cable for connecting smoke detector
3. CD with software and driver
2 What you need in addition:
1. PC with Windows operating system and USB interface
3 Start of operation:
1. Connect cable from smoke detector to E520.30 Interface
2. Connect USB cable to PC
3. If necessary, install FTDI driver from driver folder on CD, installation guide in doc folder
4. Start smoke.exe in demo folder on CD
4 E520.30 PC driven demonstrator kit:
The E520.30 PC driven demonstrator kit is for demonstration purpose of the smoke-detector device functionality. It supports
communication between PC and smoke detector based on E520.30 using the E520.30 Interface (3 level interface). The E520.30
device inside the smoke detector has a special firmware to communicate with the PC using the same protocol.
The PC demo software provide smoke detector device control and parameter modification with graphical output.
For demonstration purpose it is necessary to establish a communication between smoke detector and PC using physical se-
quential interface on two wire bus (LN24 and GND).
Elmos Semiconductor AG

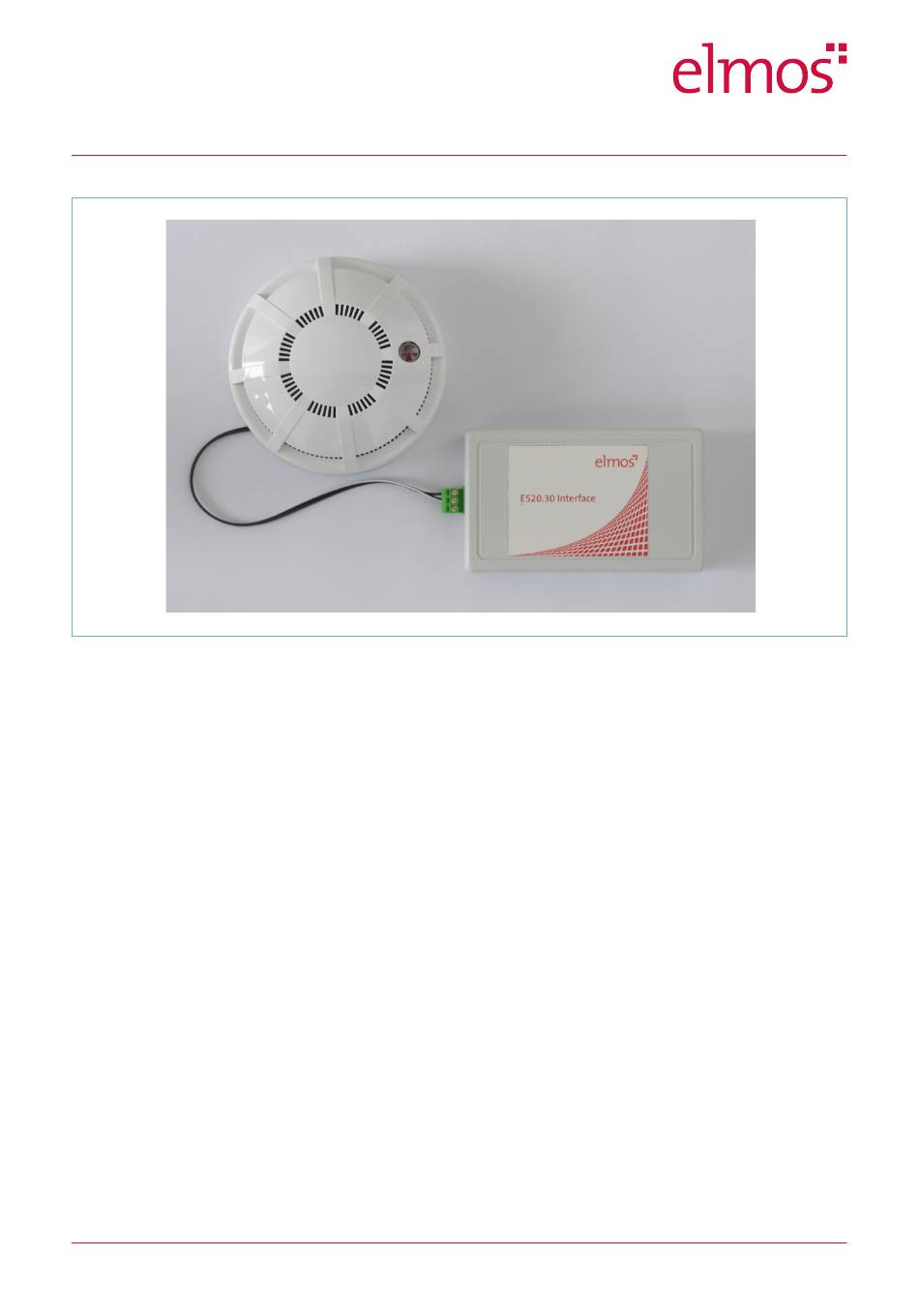

Figure 1. Demoboard
Application Note
1/8
AN 0129
QM-No.: 25DS0129E.00
Advertisement
Table of Contents
Summary of Contents for Elmos E520.30
- Page 1 The E520.30 PC driven demonstrator kit is for demonstration purpose of the smoke-detector device functionality. It supports communication between PC and smoke detector based on E520.30 using the E520.30 Interface (3 level interface). The E520.30 device inside the smoke detector has a special firmware to communicate with the PC using the same protocol.
- Page 2 5 PC based Demo Software: Start the program smoke.exe. The program connects automatically to the smoke detector via E520.30 interface. After connecting the software shows the measured supply voltage and the LN24 supply. The LN24 supply can be set in LN24 Properties window.
- Page 3 Figure 4. Remote Smoke Detector – Smoke and temp The LN24 voltage is measured with the E520.30 interface and can also be displayed. LN24 properties can be inspected with LN24 Properties option in the Menu Bar Functions. The following values must be set for correct communication with the firmware (default at delivery), press “save to EEPROM”...
- Page 4 Mar 25, 2015 The E520.30 register values can be read by pressing the readAllRegs button. To change a value click in the nVal field and fill in a new value in the upcoming window. Confirm with OK. Optionally change more register values and press writeAllRegs to trans- fer new data to the E520.30.
- Page 5 E520.30 interface • open the E520.30 interface, plug in the 14pin ribbon cable into CON4 and connect to 8 pin connector at the bottom of the smoke detector housing – the 8pin to 14pin adapter only fit in one position •...
- Page 6 E520.30 Programmable Smoke Detector Controller AN 0129 Mar 25, 2015 Figure 9. Flash window with Hex File Figure 10. Flash window during programming Figure 11. Successful flash verify This kind of programming is only recommended for testing or lab purpose and it is not intended for production use !
- Page 7 E520.30 Programmable Smoke Detector Controller AN 0129 Mar 25, 2015 CON1 LN24 520.30 COAX_CON LN24 IRLED IO0/TDO IO1/TDI 100uF/6.3V CON2 Photodiode LN24 RED LED MPE156_8 IO2/TMS IO3/TCK DSUP VTDRV VTSEN DTSM31N 100k 100k 100k Figure 12. Schematic of smoke chamber...
- Page 8 While the information in this publication has been checked, no responsibility, however, is assumed for inaccuracies. Elmos does not recommend the use of any of its products in life support applications where the failure or malfunction of the product can reasonably be expected to cause failure of a life-support system or to significantly affect its safety or effectiveness.
