Guidecraft G85702 Assembly Instructions

G85702, G86202
Classic White/Espresso

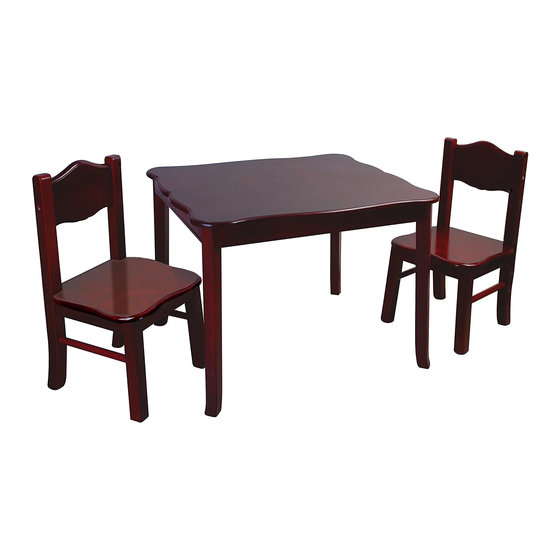

Table and Chair Set
Assembly Instructions
For ages 3 and up.
Adult assembly required.
WARNING
!
Small parts and sharp points may be present
prior to assembly.
1.46"
(37mm)
(16)
1
1.57"
(40mm)
(8)
2
1.18"
(30mm)
(8)
3
(4)
4
(4)
5
You will also
need a Phillips-
head screwdriver
(not included).
G uide cra ft • 5550 9 Highw a y 19 West , W in t hrop , MN 5539 6 • (800 ) 524-355 5 • www.guid e craf t.com
Care Instructions
To clean your product, use mild soap and
water on a damp cloth. Do not use window
cleaners or cleaning abrasives as they will
scratch the surface and could damage the
protective coating.
Customer Service
For questions regarding this product, or to
receive replacement or missing parts,
contact Customer Service at (800) 524-3555.
Please have the model number and part
number(s) located in this Assembly
Instruction sheet available for reference.
Hardware and Parts
(16)
1b
2.44"
(62mm)
Limited Warranty
All Guidecraft products are warranted to
the original purchaser at the time of
purchase and for a period of one (1)
year thereafter. In order to provide you
with timely assistance, please
thoroughly inspect your product for
missing or defective parts immediately
after opening the carton. To receive
replacement or missing parts under this
warranty, contact Customer Service.
You will also need your sales receipt or
other proof of purchase.
(16)
1c
B
B
C
E
D
F
I
G
H
page 1 of 2
B
B
C
D
E
F
H
G
I
