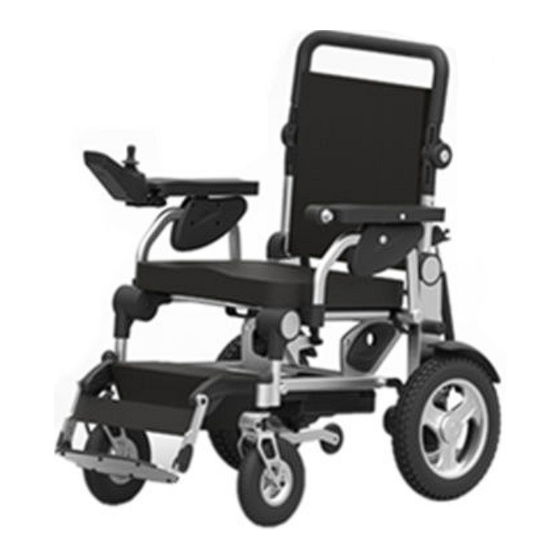

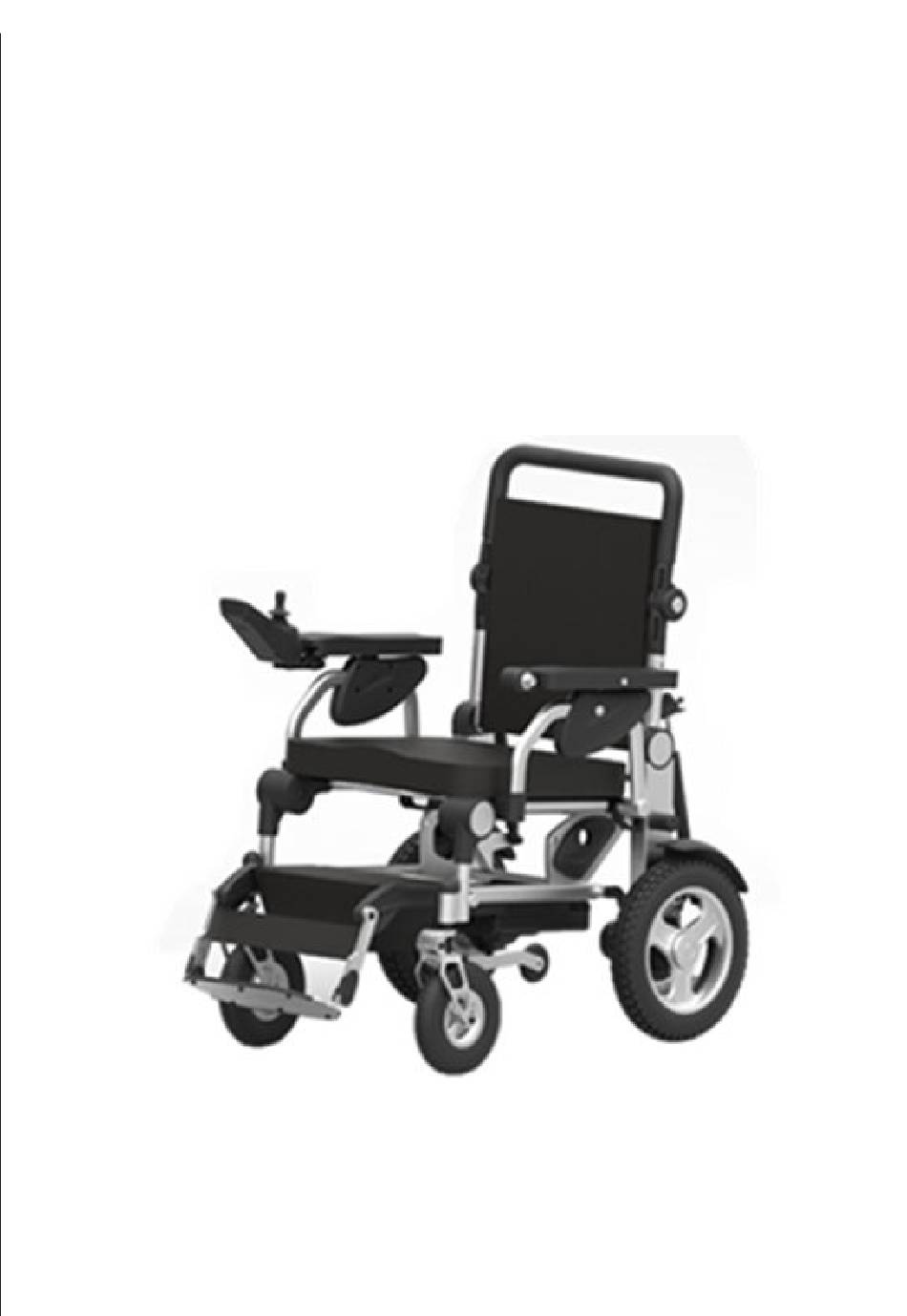

- Page 1 Portable Power Wheelchair Portable Power Wheelchair Owner’s Manual Owner’s Manual Carefully read all instructions prior to use. Special attention needs to be paid on the items Carefully read all instructions prior to use. Special attention needs to be paid on the items marked with★.
-
Page 2: Table Of Contents
Contents Guidance for Use This product is driven by DC motor and can be used both indoors and outdoors. (It is recommended not to use it outside for a long time, and the ambient temperature should range from -5 to 45 ). Used by the elderly and the disabled as a travel tool, the power wheelchair is ultra-compact, light-weight, portable, safe and comfortable. - Page 3 Do not operate the power wheelchair without prior reading and understanding of this owner’s manual. If you have problem in comprehending the warnings, notes and instructions contained in this manual, please contact Suzhou KD Intelligent Device Co., Ltd for professional guidance and help, otherwise the users may cause bodily injury due to the improper use.
-
Page 4: Introduction
The following symbols are used to identify warnings, mandatory actions and prohibited actions. It is essential that you shall fully understand and completely familiarize yourself with these symbols before Thank you for choosing KD’s power wheelchair PL001, which has excellent qualities of safety, comfort and operating. -
Page 5: Features
构 Features Features Upper Backrest Controller Splash Guard Backrest Adjusting Electromagnetic Armrest Adjusting Backrest Folding Seat Cushion Motor Traction Rope Unlocking Valve Button Button Armrest Quick Seat Belt Backrest Adjusting Button Manual Mode Knob Air Spring Lithium Battery Release Button Back Cushion Armrest Limiting Block Footrest... -
Page 6: Technical Specifications
Technical Specifications Electromagnetic Interference Warning Electromagnetic Interference Warning WARNING Model PL001-6001 Dimensions (Unfolded): L x W x H 1026*620*1030mm （ 4 0 x 24.4 x 40.6 ） The power wheelchair may be affected by electromagnetic interference (EMI) wheelchair may be affected by electromagnetic interference (EMI) . Therefore, it’s quite essential Dimensions (Folded): L x W x H 880*620*480mm (34.6 x 24.4 x 18.9) -
Page 7: Safety
Safety Safety Users Control Panel WARNING WARNING WARNING Keep tools and other metal objects away from both ends of the battery. If contacted, short battery. If contacted, short -circuit or electric Please be aware that the control panel of the power wheelchair shall be Please be aware that the control panel of the power wheelchair shall be shock may occur and cause injury. - Page 8 Safety Safety Road Surfaces Driving Balance WARNING WARNING WARNING The power wheelchair is designed optimally for level surfaces; such as concrete, asphalt and indoor level surfaces; such as concrete, asphalt and indoor Keep the balance and stability of the power wheelchair the balance and stability of the power wheelchair to avoid tipping ground flooring.
- Page 9 Safety Safety Leaning or Reaching While Seated Crossing Over Obstacles WARNING WARNING Crossing over obstacles such as doorsills, elevators, doorsills, elevators, slopes, pot holes and rough roads can be hazardous. Reaching out your hands or leaning your body in the power wheel chair may adversely affect chair may adversely affect Improper use may result in damage to the wheel wheel chair or causing bodily harm.
-
Page 10: Installation Guide
Safety Installation Guide Load Limit Positioning Seat belt WARNING WARNING The max load of the wheelchair is 150kg (330lbs) ， d o not exceed the max load while using the wheelchair. The seat belt can be used to prevent the users from falling off Under no circumstances should the users do weight training while using the wheelchair. - Page 11 Installation Guide Operation Guide Mounting the Control Panel Control Panel The Control Panel comprises of the following: Based on the users’ needs, the control panel can be mounted on the right or left armrest. (The control panel is initially mounted on the right armrest, please contact the supplier if you want to change it to the left side As shown in Fig.
-
Page 12: Operation Guide
Operation Guide Operation Guide/Electromagnetic Unlocking Valve Control Joystick Power-On/Off Button WARNING Pressing this button will power on the wheelchair. When operating the wheelchair for the first time, it is recommended to move the wheelchair at a Pressing this button again will power off the wheelchair. low speed gently and gradually pushing the control joystick forward. -
Page 13: Manual Mode Knob
Electromagnetic Unlocking Valve / Manual Mode Knob Electromagnetic Unlocking Valve / Manual Mode Knob Battery Keep tools and other metal objects away from both ends of the battery. If contacted, short-circuit or Keep tools and other metal objects away from electric sho ck may occur and cause injury ck may occur and cause injury 。... -
Page 14: Battery
Battery Battery Mounting/Removing Battery Over-discharge Protector WARNING ★ The lithium battery will be permanently damaged, if the battery’s capacity has been completely discharged. Therefore, wheelchair is equipped with an over-discharge protector. When the lithium battery is running out, the Ensure the wheelchair is powered off before mounting or removing the battery. protector will cut off the circuit automatically and the controller will stop working. -
Page 15: Unfolding
Unfolding Folding Folding Steps Unfolding Steps For storing and transporting the wheelchair, please follow these steps to fold it after using If the wheelchair needs to be unfolded to use after the first unpacking or foldable store, please follow these steps: 1. -
Page 16: Armrest Adjustment
Armrest Adjustment/Backrest Adjustment Backrest Adjustment/Controller Armrest Adjustment The height and position of the armrest can be adjusted as follows: 1. Up and down adjustment: As shown in Fig. H1 and Fig. H2, press the adjusting button, then you can move the armrest up and down. -
Page 17: Troubleshooting
Troubleshooting Troubleshooting Troubleshooting Table Problem Cause Solution 1. Faulty connection of the control panel and Re-plug the 5 – pin plug into the socket at the the connector. side of the wheelchair. If the power is off automatically, the batteries 2. -
Page 18: Warranty
Warranty Packing List Warranty ： Packing List Items Incorrect use, damaged or modified by the Items Main Frame 5 years user will void the warranty and the repair costs will be charged. Main Frame Damaged due to overload or disassembled Lithium Battery Motor 1 year...
