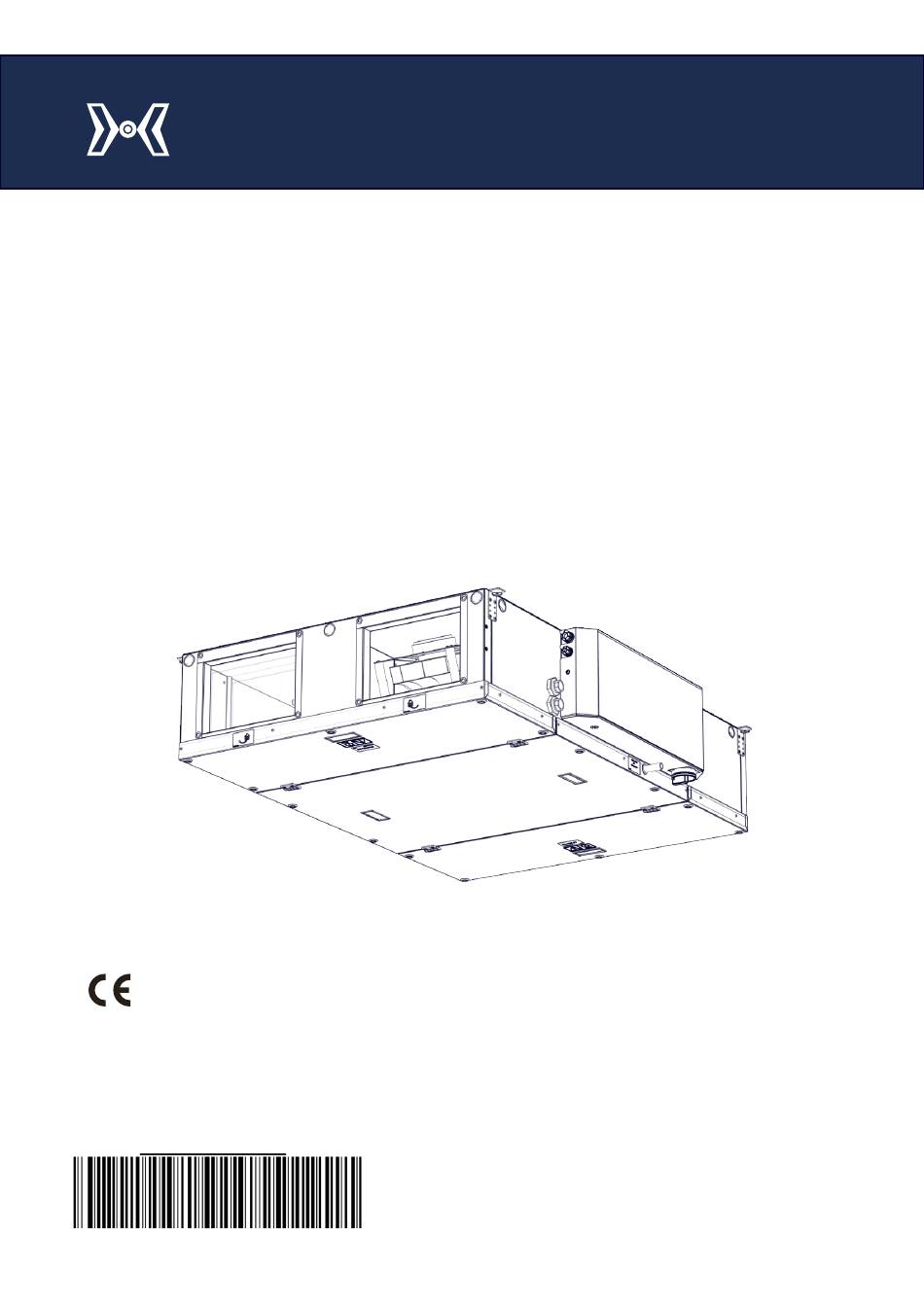

  • Page 1 BARKELL A I R H A N D L I N G U N I T S THERM-X HRFL II Installation Operation & Maintenance Manual P02-0329-1117-UK...
  • Page 2: Before You Begin

    1. BEFORE YOU BEGIN Symbol Meaning ATTENTION! Warning or notice IMPORTANT NOTICE! Important instructions YOU WILL NEED Practical tips and information TECHNICAL INFORMATION More technical information Link to another part of the manual Before installation of the unit, properly read the manual Safe operation of the ventilation unit.
  • Page 3 En cas de constatation d'une report this to Barkell. différence, ne déballez pas le récupérateur et t r a n s p o r t , l a i s s e z l ' u n i t é d é b a l l é e à l a de tous ses éléments.
  • Page 4: Major Parts

    3. MAJOR PARTS THERM-X HRFL II 040/070/150/200 Delivered with the product: 1 x Touchscreen Controller Note: Cabling included, cable recommended The cable length should not exceed 50 m (0.5 mm2) 1 x Room Temperature Sensor Note: Sensor supplied loose, cabling not included AV &...
  • Page 5 4. DIMENSIONS THERM-X HRFL II 040/070/150/200 INDOOR ENVIROMENT OUTDOOR ENVIROMENT OTA - Outside air SUP - Supply air ETA - Extract air INDOOR ENVIROMENT OUTDOOR ENVIROMENT EHA - Exhaust air Type condensate ø HRFL2-040 1190 1120 HRFL2-070 1080 1400 1330 1000 HRFL2-150 1385...
  • Page 6: Technical Specifications

    5. TECHNICAL SPECIFICATIONS Model without electric pre-heating coil and..without coil / with water heating coil / with WCO coil / with DX coil Type Voltage [V] Frequency [Hz] Rated power [kW] Rated current [A] HRFL2-040 0.34 HRFL2-070 0.33 HRFL2-150 HRFL2-200 ...electric post heating coil Type...
  • Page 7 Characteristics of water changeover cooling / heating coil (WCO) - Heating Type Rated capacity [kW]* Water pressure loss [kPa] Air pressure loss [Pa] Connection diameter Air fl w [m³/h] HRFL2-040 2.51 0.29 3/4“ HRFL2-070 0.59 3/4“ HRFL2-150 9.41 0.69 3/4“ 1500 HRFL2-200 15.7...
  • Page 8: Installation

    6. INSTALLATION CHOOSE THE PLACE OF INSTALLATION TECHNICAL INFORMATION • The unit has to be operated only in a dry environment and protected against external atmospheric conditions with an ambient temperature from +5 °C to +35 °C. • The unit is not designed for air containing flam mable or explosive mixtures, chemical vapours, heavy dust, soot, grease, toxins, pathogenic or ganism, etc. •...
  • Page 9 6. INSTALLATION 6.1-2 Safe installation distance TECHNICAL INFORMATION ● All the HRFL II units must be placed in the hori- ATTENTION! zontal position. Any other position is prohibited. ● The unit must be installed in such a way so that the direction of the air inlet and outlets corre- ● All materials used at a distance less than 100 mm sponds with the air circulation in the distribution from the ventilation unit have to be non-flam- ductwork. mable (do not burn, flame up, burn down) or ●...
  • Page 10: Hanging The Unit

    6. INSTALLATION 6.1-3 Hanging the unit ATTENTION! For location of the anchorage points, use the drill- • Due to the weight of the unit, it is necessary to ing template listed below. use an appropriate lifting device when assem- The units are equipped with mounting brackets bling (e. g. a forklift, scissor lift, etc...) which should be used in conjunction with threaded •...
  • Page 11 • Flexible corrugated ducting can impose high re- sistances if formed into tight bends and should therefore be avoided. NOTE: Barkell does not supply the accessories portrayed Example of possible connection with flexible connectors. above as standard NOTE: Barkell does not supply the accessories portrayed above as standard...
  • Page 12 Adjust the damper in such a way that it is fully closed when the unit is turned off and fully opened when the NOTE: Barkell does not supply the accessories unit is in operation. Other arrangements may damage portrayed above as standard the unit.
  • Page 13: Primary Parameters

    об 6. INSTALLATION PRIMARY PARAMETERS 10mm Technical details of the KRTK-A Shut-Off damper • The damper housing is manufactured of galvanized OBSOLETE steel. • The damper may be fitted with a actuator after removing the manual control lever. NOTE: Damper actuators Dimensions [mm] Unit type...
  • Page 14 ● If the product is connected to another control 6.4. CONNECTION OF THE system than the original control system, contact ELECTRICAL WIRING AND the company that supplied this system for in- THE ELECTRICAL formation regarding the electrical wiring of the measuring sensors and controls. ACCESSORIES ● The unit must be connected to the power supply line using a rigid heat resistant isolated cable of ATTENTION! a diameter that corresponds to the valid local regulations. ● For preservation of the electrical protection, all ● The main isolator switch of the electric the cables must pass through the side openings power supply must be turned off before of the control housing.
  • Page 15: The Power Supply Cable

    6. INSTALLATION 6.4-1 The power supply cable The connecting terminal for the power supply ca- ble is placed in the control device housing. Product type data ATTENTION! U = voltage = current Minimum size of the protective grounding lead power/ F = frequency must be in compliance with local safety regula- absorber power...
  • Page 16: - Electrical Accessories

    6. INSTALLATION 6.4-2 – Electrical accessories Electrical accessories must be connected to the terminals located in the control panel according to the wiring diagram and the markings on the terminals. NOTE: The wiring diagrams present on the units control box take precedence over the provided wiring diagrams.
  • Page 17 6. INSTALLATION READ CAREFULLY! ● The wiring diagrams present on the units control box take precedence over the provided wiring diagrams. ● Accessories must be connected with a cable we provide or with a cable appropriate to the specifications of the component. 2 2. 1 1. B (1-2) WATER PUMP (1 - Lint, 2 - Lout) B (3-4) HEAT PUMP CONTROL adjustable (output ON/OFF) КА...
  • Page 18 6. INSTALLATION 6.5-2.1 External Control TECHNICAL DATA Contact for external ON/OFF control of the unit. Location of the 24 V outlet to supply accesso- NOTE: Barkell does not supply the above accessory. ries TECHNICAL DATA ● Low voltage switching contact - maximum possible load 12 V, 0.4 A. ● Cable with two conductors of cross sec-tion min. 0.5 , maximum length 50 m. ● The contact is normally closed. When the contact is open, the unit turns off. This setting can be changed in the service menu 1616 on the controller.
  • Page 19 ÇáêÉÅíáçåë= ~ åÇ= Çá~Öê~ãë= ~ÑÑáñÉÇ= ÇáêÉÅíäó= íç= íÜÉ= ÇÉå=pÅÜáäÇïÉêíÉå= ìåÇ= pÅÜ~äíÄáäÇÉêåI= ÇáÉ= ÉåíïÉÇÉê= éêçÇìÅí= çê= ÉåÅäçëÉÇ= íç= íÜÉ= éêçÇìÅíK ~ìÑ=ÇÉã= mêçÇìâí= ~åÖÉÄê~ÅÜí= = çÇÉê=òìã= mêçÇìâí= ÄÉáÖÉäÉÖí= ëáåÇK NOTE: Barkell does supply above accessory as standard, it must be ordered separately. 6.5-3 Touchscreen controller To start the unit, connect the remote control to the unit with the control cable (data cable).
  • Page 20: Condensate Drain Connection

    Connect the other end to the main control unit. YOU WILL NEED protocols details (ModBUS) contact Barkell. • 1 siphon • PVC discharge pipework • seal to the discharge pipework IMPORTANT NOTICE! Siphon with a ball It is possible to connect the unit to the BMS control system and the unit controller at the same time.
  • Page 21: Main Parts

    6. INSTALLATION 6.5.1 CONDENSATE PUMP (Aspen Maxi Orange) Main parts: (1) Pump body (3) Liquid reservoir (2) Connection cable (6) Plastic clamp (7) Reservoir holding bracket (5) Plastic piping (4) 16mm rubber bend (part of unit delivery) 1) Installation of the the reservoir holding bracket (part of unit delivery) a) Fold the bracket as indicated on the illustration b) Using 2 M4 screws fix the bracket to the service side of the unit as indicated on the illustration.
  • Page 22 6. INSTALLATION 3) Condensate pump wiring 2 2. a) Wire the power cable (2) to the control panel as indicated on the diagram PUMP Control panel 1 1. A (5-6) LF1 - FLAP INLET (output L-open), LF2 - FLAP OUTLET ( output L-open) LF1 ЗАСЛОНКА ВПУСК (выход L-открыт), LF2 - ЗАСЛОНКА ВЫПУСК (выход L-открыт) LF1 - KLAPKA PŘÍVOD (výstup L-open), LF2 - KLAPKA ODVOD ( výstup L-open) A (7-8) RUN CONTACT (output -NO/NC settable)
  • Page 23 IMPORTANT NOTICE! • As long as there are conditions favourable for the creation of condensate ensure the unit condensate outlet is connected to an appropriate waste system. • The use of a condensate siphon is only recommended where gravity assisted drainage is achievable. • Ensure the condensate syphon is installed with sufficient height difference from the unit so that the conden- sate can drain freely by gravity. • Ensure that the condensate is routed to a suitable outlet. • If the pipework connecting the outlet from the unit to the condensate drainage system is installed on a loca- tion that can freeze the pipe must be insulated or equipped with a frost pipe heater. • Ensure that the condensate discharge point height does not exceed the maximum head of 12 m for the con- densate pump. • If the condensate pumps is fitted ensure it is properly mounted so pipes and hoses will not kink or become detached in operation. Pipe clips should always be used. • For additional information on the pump installation, operation and maintenance please refer to the IOM pro- vided with the pump.
  • Page 24: Initial Commissioning

    Display current temperature, air flow, CO2 ● We recommend using the accessories we supply. In concentration, date and ventilation mode case of doubt regarding the use non-original accesso- Turn the unit on/off ries, contact Barkell. (only on stand-by) Air flow settings START-UP BOOST mode Required tem- perature settings Turn on the unit (stand-by) turning the main switch to I (on).
  • Page 25: Airflow Settings

    7. INITIAL COMMISSIONING INFORMATION ON THE UNIT’S CURRENT AIRFLOW SETTINGS CONDITION Display required air flow This screen shows the detailed status of the unit and the sensor values: The current air flow of both fans • Reduce or Air temperature at intake and exhaust of the supply and •...
  • Page 26 7. INITIAL COMMISSIONING TIMER Start of time interval Activate/deactivate timer End of time interval chedule Weekly mode nAble Setting manual or utomAt eekly mode automatic mode nnuAl mode Return Disable time interval Annual mode In addition to the temperature, in manual mode you can also set the ventilation rate.
  • Page 27: Time And Date Settings

    7. INITIAL COMMISSIONING TIME AND DATE SETTINGS Ventilation ac- Manual venti- cording to the lation mode requirements of the air qual- ity sensor DCV: DCV: the unit ventilates to the requirements of the air quality sensor, e.g.: CO , RH, 0-10V control signal COMISSIONING MENU CAV: The unit ventilates according to the selected air-flow and temperature...
  • Page 28 7. INITIAL COMMISSIONING MENU 03 - ACCESSORIES MENU 05 - FILTER CALIBRATION Select optional accessories MENU 04 - FAN CALIBRATION The calibration has to be carried out during the first commissioning and after every filter change. MENU 07 - EXTERNAL EXCHANGERS Start cali- bration The calibration takes several minutes.
  • Page 29 7. INITIAL COMMISSIONING MENU 09 - TEMPERATURE SENSOR Preheating: Reheating: Temperature probe Electric Electric Blowing Water Water Suction Change over Direct vaporizer Select the main temperature sensor for setpoint Supply duct: MENU 08 - AQS SENSOR Supply air temperature sensor Extract duct: Extract air temperature sensor Room:...
  • Page 30 7. INITIAL COMMISSIONING MENU 11 - BYPASS TEMPERATURE MENU 13 - FIRE FLOW 10 - Blowing limits 12 - Flow shift Flow shift Drain 0 % Flow in fire mode Drain 100 % Setting the unit's rate when MIN = 0°C ~ 20°C the FIRE contact opens (input ter- minals 15/16)
  • Page 31 7. INITIAL COMMISSIONING Permission to use the FREE- Setting the COOLING mode Setting the time required flow interval after which the mode is acti- Date vated when the PIR (assessing the activation sensor is activated of FREECOOLING mode) 30 minutes (input terminals 15/16) Drain 20 %...
  • Page 32 7. INITIAL COMMISSIONING MENU 18 - HW TEST MENU 19 - DX EXCHANGER 16 - Freecooling 17 - PID parameters 18 - Test mode 17 - PID parameters 20 - Modbus RTU 18 - Test mode 21 - Network parameters 20 - Modbus RTU 21 - Network parameters 16 - Freecooling...
  • Page 33 7. INITIAL COMMISSIONING Lock screen Protection level without Security level Password Several security levels can be chosen: Users may make the following settings without the password: ON/OFF – allows to turn the unit on or off. ON/OFF, Temp., Flow - Allows to turn the unit on or off, set the The MODBUS menu is used to set the Modbus communication.
  • Page 34: Maintenance

    8. MAINTENANCE 8.1 FILTER REPLACEMENT 8.2 MAINTENANCE SCHEDULE OF THE UNIT YOU WILL NEED • 6 mm Allen wrench • vacuum cleaner • brush • cloth • not aggressive cleanser (soapy water) We recommend checking and cleaning the unit every six months, though this interval should be adapted to the operating conditions.
  • Page 35: Troubleshooting

    9. TROUBLESHOOTING ATTENTION! TECHNICAL DATA ● Malfunctions are usually signalled with a mes- ● Before and during maintenance and repairs, sage on the display. See table below. the unit must be disconnected from the power supply, which must be locked, and the service switch in 0 position (off). ● Do not perform repairs if you aren’t sure or don’t know the exact procedure; contact a specialised service! Unit's be-...
  • Page 36 9. TROUBLESHOOTING Unit's be- Description Likely problem Solution haviour 12 – CO2 sensor Unit is venti- Defective air quality sen- Check that the CO2 sensor is connected correct- failure lating ly or check that it is operating correctly (output signal value). 13 - Failure of rotary Unit is not Failure of rotary heat ex-...
  • Page 37 9. TROUBLESHOOTING Unit's be- Description Likely problem Solution haviour 26 - Failure in the Unit is venti- Pressure sensor failure Check the supply point for mechanical damage pressure sensor of lating or whether it is clogged by dirt, or whether the the exhaust filter.
  • Page 38: Fuse Location

    READ CAREFULLY! ● When the power supply is resumed after an out- age, the unit returns to the status it was before Fuse location on the electronic board the outage. The unit always remembers its T2A 5x20 mm 250 V oper-ational status and settings. Motor fuses: The information can be found on the If you aren’t able to find or remove the cause of label next to the the malfunction, or if the repairs require an in- fuse or directly on the fuse. tervention on the device, contact Barkell.
  • Page 39 The location of the safety thermostat is indicated with the marking: RESET located in each unit. 10. SERVICING 10.1 IF THE FAULT PERSISTS If you have not managed to fix the problem on your own, please contact Barkell. IMPORTANT NOTICE! ● For fast troubleshooting, have this data at...
  • Page 40: Printed Circuit Boards

    10.3 DISSASEMBLY AND DISPOSAL Contact: Disassembly of motors Release the hold from setup – square bit No. 2 Barkell Ltd Unit 22 Release the motor from the hold – allen bit No. 2.5 No. 1 Industrial Estate Printed circuit boards Consett Opening the board –...
