Summary of Contents for Alentec & Orion 29405

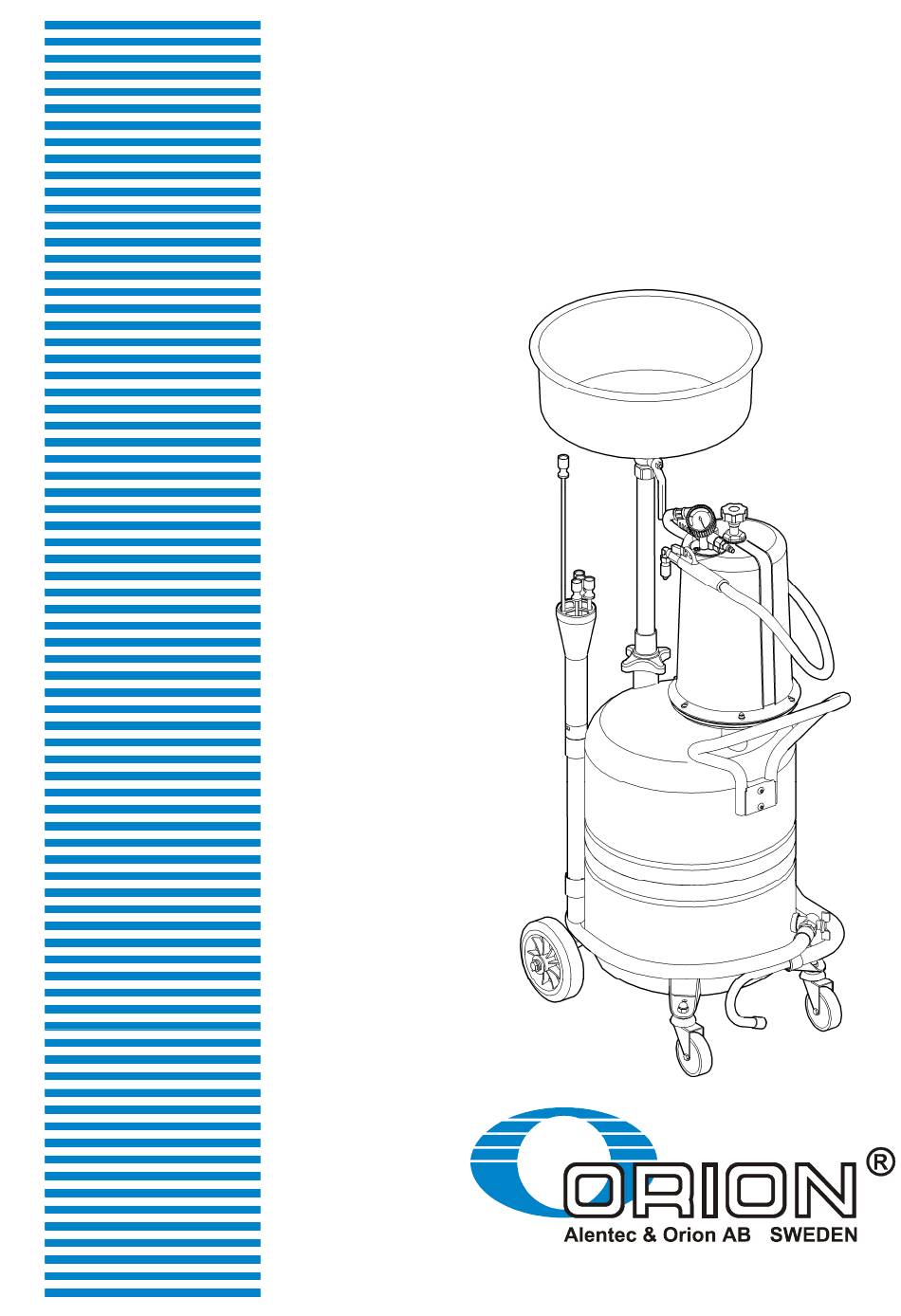

- Page 1 Waste Oil Collector Spilloljeuppsamlare Récuperateur d’huile usée Users manual Bruksanvisning Guide d’instructions 29405 29407 29408 1(12) Manual for waste oil collector 29505, -7,-8, Rev b, 12-03-21...
- Page 2 Dimension and technical data / Dimension och tekniska data / Dimensions et caractéristiques techniques Data Capacité du réservoir Tank capacity Tankvolym 65 litre Capacité du bol de Transparent tank capacity Transparent sugtank volym 10 litre pré-vidange Tid för att uppnå max. Temps nécessaire pour Time to reach max.
- Page 3 Assembly / Montering / Montage (GB) Fasten the handle with the enclosed screws Fig.1. (SE) Montera handtaget med hjälp av skruvarna. Fig.1. (FR) Monter le guidon et le visser. Fig 1 Fig 1 (GB) Mount the probe holster into the support on the container.Fig.2. (SE) Montera sugsondshölstret i sina fästen till vänster på...
- Page 4 (GB) Mount transparent inspection chamber on top of the container and orientate it as shown in the picture. Tight it properly with the flange nut. Do NOT use any kind of sealant! (SE) Montera den transparenta behållaren på sin plats. Se till att den vrids rätt enligt bilden. Täta och lås den med flänsmuttern.
- Page 5 (GB) Connect compressed air to the vacuum pump. Rec. pressure. 5-7 bar. Max 10 bar. When the gauge indicates enough vacuum is the needle in the middle of the green zone. Disconnect the airline hose for independent mode. For suction with line connection, maintain the air hose connected.
- Page 6 (GB) For gravity collection. Place the unit under the vehicle and adjust the funnel to a suitable height. Open the funnel ball valve. Open the air-breathing valve. See fig 11 Unscrew the crank case plug and start to collect waste oil. Let it pour until the engine or gearbox is empty.
- Page 7 Trouble shooting / Felsökning / Anomalies et solutions Symptom Possible Causes Solution Vacuum gauge needle does not move Damaged or obstructed vacuum gauge Replace the vacuum gauge during the depressurising The vacuum gauge does not reach the Not enough air pressure in the line Increase the air pressure green zone Insufficient air delivery...
- Page 8 Spare part drawing / Reservdelsritning / Vue écatlée 8(12)
- Page 9 Spare part list / Reservdelslista / Pièces de rechange Part no/ Description Beskrivning Description Art.nr/ Réf. 2295015 Vacuum chamber with Vakuumbehållare med pump Bol de pré-vidange avec pump and complete och komplett sugslang pompe à vide et flexible suction hose d’aspiration 2395102 Vacuum chamber...
- Page 10 Emptying of the unit with a wall mounted pump / Tömning av enheten med väggmonterad pump (GB) To use a wall mounted oil pump for emptying the waste oil unit and pump it to a remote storage waste oil tank can this quick coupling kit be very useful. Mount the quick coupling kit 2295017 with same screws which are used for the handle bar.
- Page 11 (GB) The design and manufacturing of the equipment WASTE OIL DRAINER, 29405, 29407 and 29408 as well as the tests carried out on the said model follow, by Alentec&Orion AB’s own will, the recommendations stated in the part 1 of the UNE EN-286 Directive, «Simple unfired pressure vessels designed to contain air», and more specifically in the Class 3...
- Page 12 SPILOLJEUPPSAMLARE 29405, 29407 och 29408 har blivit deklarerade i enlighet med EC Direktiv (2006/42/EEC). (FR) Alentec&Orion AB, Grustagsvägen 4, 13840 Älta, Sweden, déclare par la présente que les RECUPERATEURS D’HUILE USÉE 29405, 29407 et 29408 sont conforme aux dispositions de la directive du Conseil des Communautés Européennes (2006/42/CEE) Älta 2012-05-10 Alentec&Orion AB...
