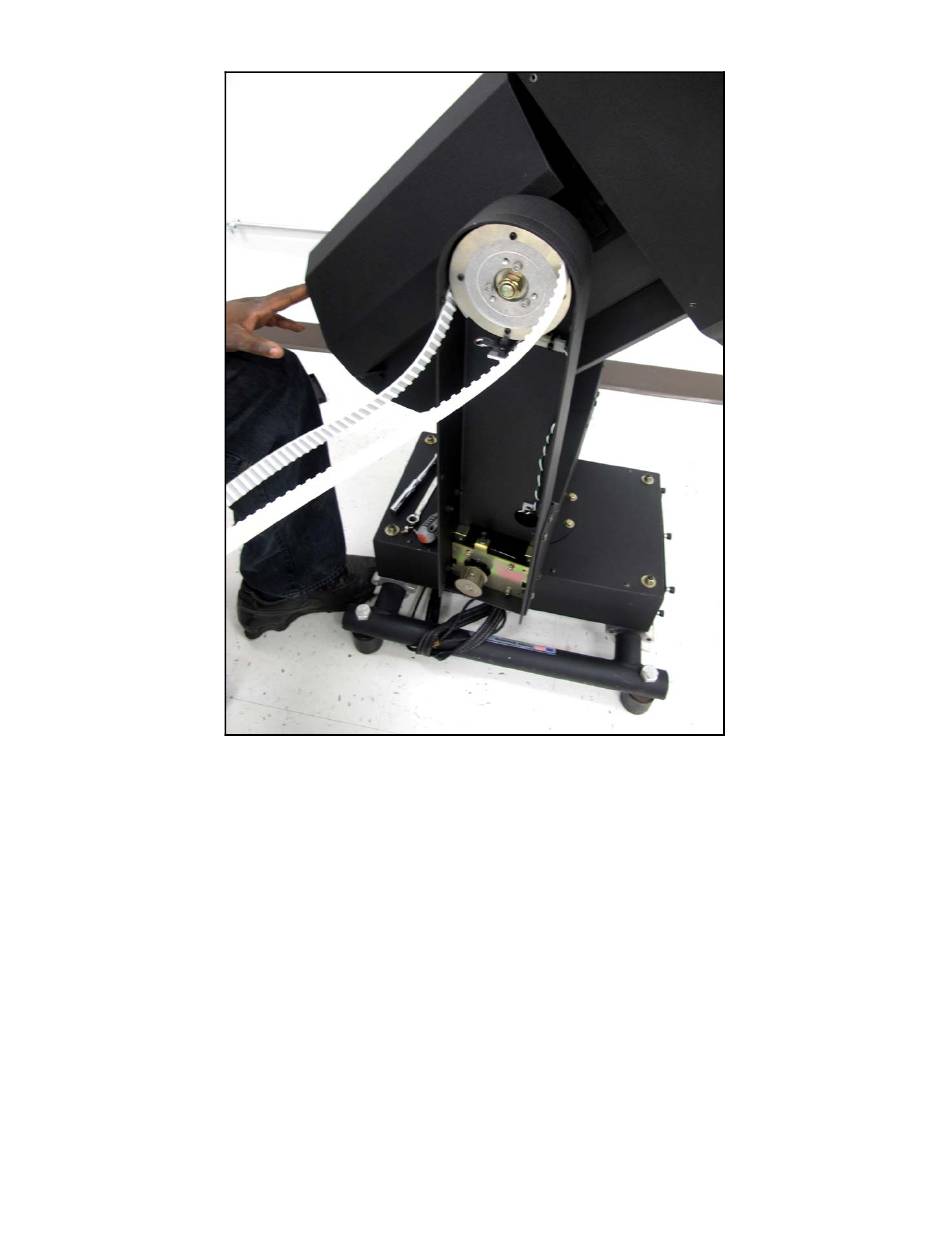

Unplug the motor from the red and black DC motor power cable, which is attached via a mini‐fit
junior 2‐position modular connector, and the blue, brown, green and yellow encoder cable,
which attaches via a mini‐fit junior 4‐position cable to the rear of the motor assembly.
