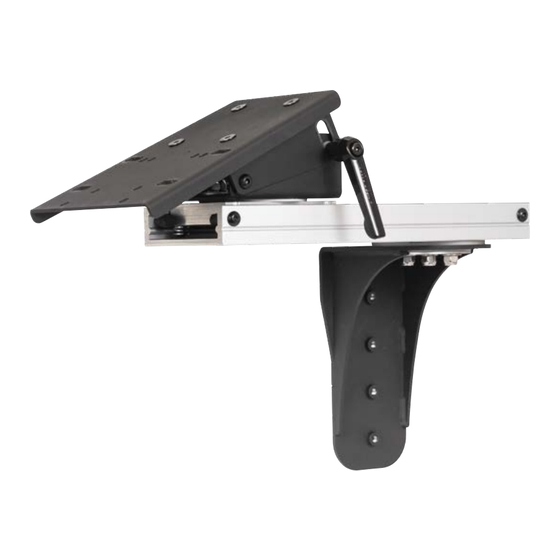

ASSEMBLED Jotto Desk Mamba Mount Installation Instructions

Universal console side mount

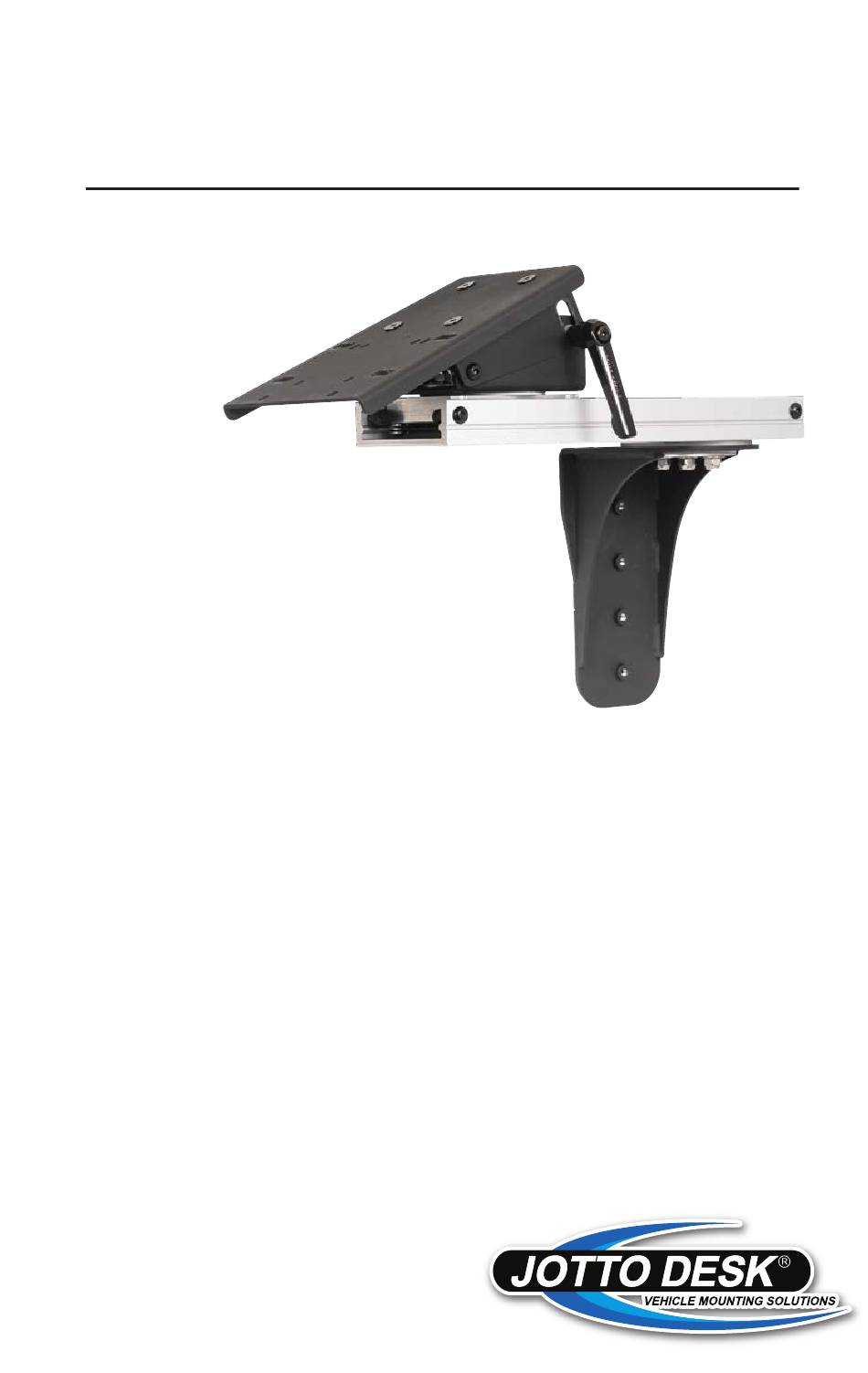

The

Mamba Mount

Universal Console Side Mount

Installation Instructions

WARNING:

Do not install or use this product in any manner which would interfere with any of the ve-

hicles controls, air bags or safety devices. Do not install or use this product in any manner

which causes a safety hazard for vehicle and/or occupants.

To avoid serious injury do not place this device or any objects between the air bags and yourself

or any passengers.

We recommend that you do not operate a computer while driving!

Park safely, then use. Remember, driving safely comes first.

WARNING:

Make sure of and check on a regular basis that all knobs, fastening devices and handles are

tight and secure. Repair or replace any faulty or worn parts. All equipment, such as computers,

printers, phones, etc. must be safely secured when vehicle is in motion.

DISCLAIMER:

The manufacturer of this product may not be held liable for any accidents, injuries or problems

caused by the use or installation of this product.

Specifications subject to change without notice.

425-0150

Table of Contents

Need help?

Do you have a question about the Jotto Desk Mamba Mount and is the answer not in the manual?

Page 1 Mamba Mount Universal Console Side Mount 425-0150 Installation Instructions WARNING: Do not install or use this product in any manner which would interfere with any of the ve- hicles controls, air bags or safety devices. Do not install or use this product in any manner which causes a safety hazard for vehicle and/or occupants.
Page 2 INSTALLATION PROCEDURE READ INSTRUCTIONS BEFORE BEGINNING INSTALLATION TOOLS NEEDED: • ⁄ " wrench or ⁄ " drive ratchet with ⁄ " socket PARTS INCLUDED: • Hardware Bag with necessary nuts, bolts, etc. 1. Position the mounting base at the right height (allow clearance for radio equipment) to the right side of the console.
Page 3 TOP ASSEMBLY & ADJUSTMENT ATTACH A-MOD:Bottom View 3. Pull the rear knob to release and move the top assembly. Slide it forward to the front locating knob and it will automatically lock in position. From this point you will be able to mount A-MOD Desktop/docking equipment to the top plate via holes and slots from the underside with provided ¼"-20 bolts and washers.
Page 4 It attaches directly to the A-MOD Desktop and adjusts in height and tilt angle. 209 W. EASY ST., ROGERS, AR 72756 • www.EVERYTHINGBUTLIGHTS.com • 6/20 Jotto Desk ® is a patented product and Registered Trademark of Assembled Products ™ Corporation. Specifications subject to change without notice.

425-0150
