Summary of Contents for AQ M-TECH HJCU-COM

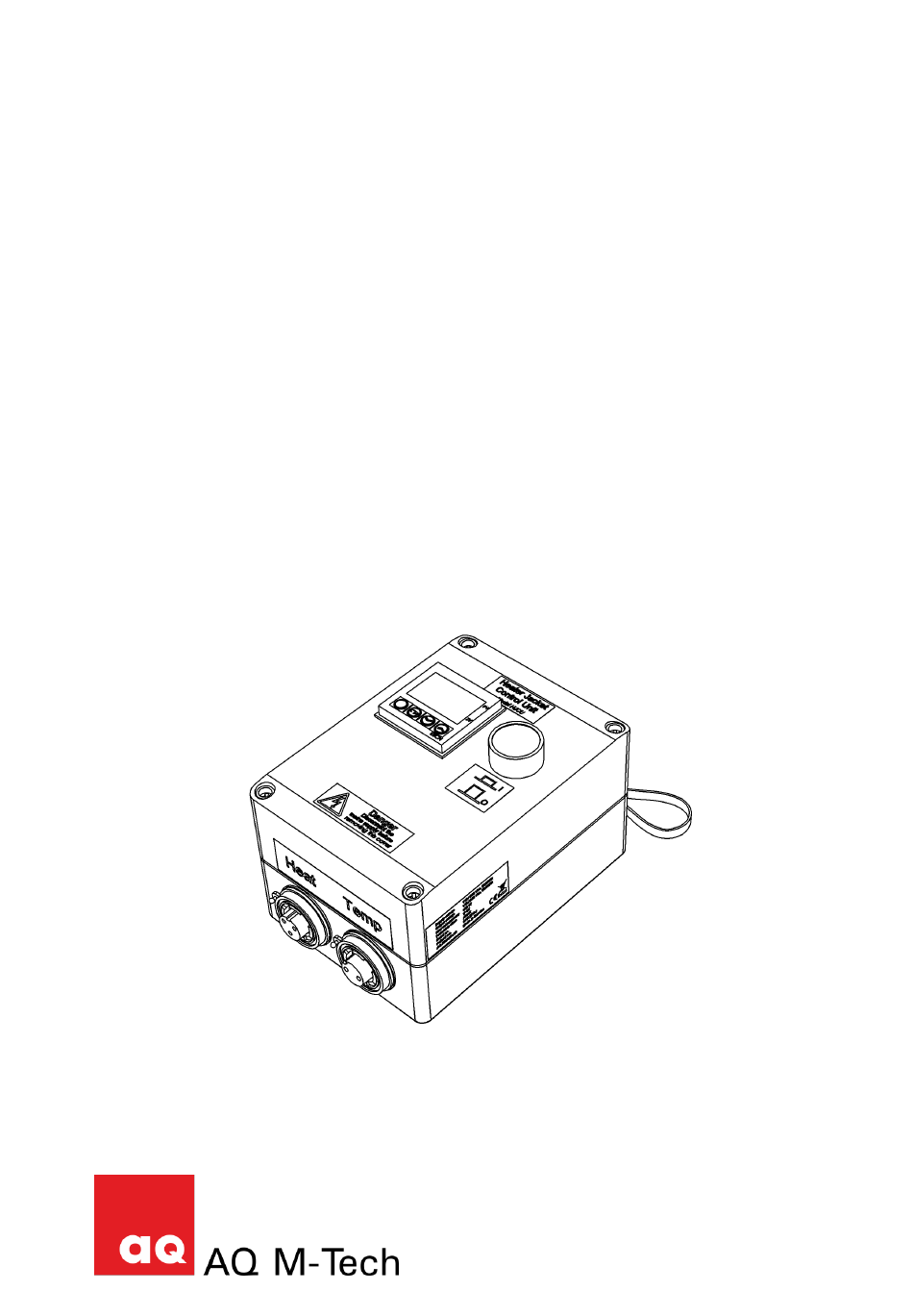

- Page 1 Heater Jacket Control unit Model HJCU-COM Manual 1/12...
- Page 2 Heater Jacket CONTROL UNIT Model HJCU-COM Manual version 2.5 April 2020 AQ M-Tech AB 2/12...
-
Page 3: Table Of Contents
Table of contents 1. Manufactor information CE Declaration of conformity Limited Warranty Warning Manufacturer information 2. Check list 3. Introduction Heater Jacket Control Unit 4. Installing Heater Jacket Control Unit 5. Rating signs 6. Connections Connector connections Alarm description Replacing the supply cable 7. -
Page 4: Manufactor Information
The repair or replacement of other equipment in addition to the Heater Jacket Control Unit can not be provided under the terms of this warranty. The purchaser pays the carriage charges to AQ M-Tech AB. AQ M-Tech AB can in no way be held liable by the purchaser for damage caused to any other equipment. -
Page 5: Check List
One “Communication” connector, Communication RS-485 4-way male Two Spare fuses 5X20mm, one T 4,0A L/250VAC and one T 8,0A L/250VAC One “Heater Jacket Control Unit” manual, model HJCU-COM One “Heater Jacket” manual, model HJSA & HJSB Three “E5CN Temperature Controller” manuals, six languages ( ENG - JPN, DE - IT, FR - ES One “E5CN Temperature Controller Communication Event Input”... -
Page 6: Rating Signs
Rating signs Rating sign Connector Explanation Heater 3-way female Supply to the Heater Jacket Temp 2-way female Temperature detection on Heater Jacket Alarm 4-way male Alarm 1 (HT) and Alarm 2 (LT) Mains 3-way male Supply voltage to the Heater Jacket Control Unit ... -
Page 7: Replacing The Main Fuse
The communication connector on HJCU-COM can be connected to a PC (Personal Computer) via a PC-Transformer . TCViews is a logging program that gives the user a possibility to view 32 HJCU-COM at the same time on a PC screen. TCViews provides you with a possibility to operate, monitor and change temperature controller parameters. -
Page 8: Technical Specification
5. PC-Transformer = Transforms Communication signal from HJCU-COM RS-485 to RS-232 for PC connection. 10. Technical specification Connection voltage 115 VAC (100-120 VAC) 50/60 Hz 230 VAC (220-240 VAC) 50 Hz Maximum power consumption 800 Watt 800 Watt 30C – 140C 30C –... -
Page 9: Accessories/ Spare Parts
Model Size (WxLxH) Item no. Control Unit 230/115 VAC 125x175x110 mm HJCU Control Unit Communication 230/115 VAC 125x175x110 mm HJCU-COM Control Unit Current Com. 230/115 VAC 125x175x110 mm HJCU-COM-S Supply and alarm connector without cable is included. Fuses Item Model... -
Page 10: Dealer
9. HJCU-COM – Communication with RS-485 10. HJCU-COM-S – Communication with 4-20mA DC 11. The cable kit includes 2 cables (Temp & Heater cables). 14. Dealer Sweden AQ M-Tech AB Dealer: Adress: Bolandsgatan 10 SE-753 23 Uppsala Sweden Phone: +46 (0)18-470 29 00... -
Page 11: Fault Tracing
15. Fault tracing Problem Probable cause Corrective action The E5CN regulator on the Power switch not pressed in Press the power switch HJCU does not start No voltage Check the incoming voltage Fuse blown in the HJCU Change the main fuse in the HJCU (F1) Faulty regulator Contact the dealer... - Page 12 12. The Heater Jacket Control Unit must be disconnected from the main supply when working inside the enclosure. 12/12...
