Summary of Contents for WSG Axis Proton
- Page 1 Waves Axis Proton Computer for Waves Applications Getting Started Guide Axis Proton / User Guide...

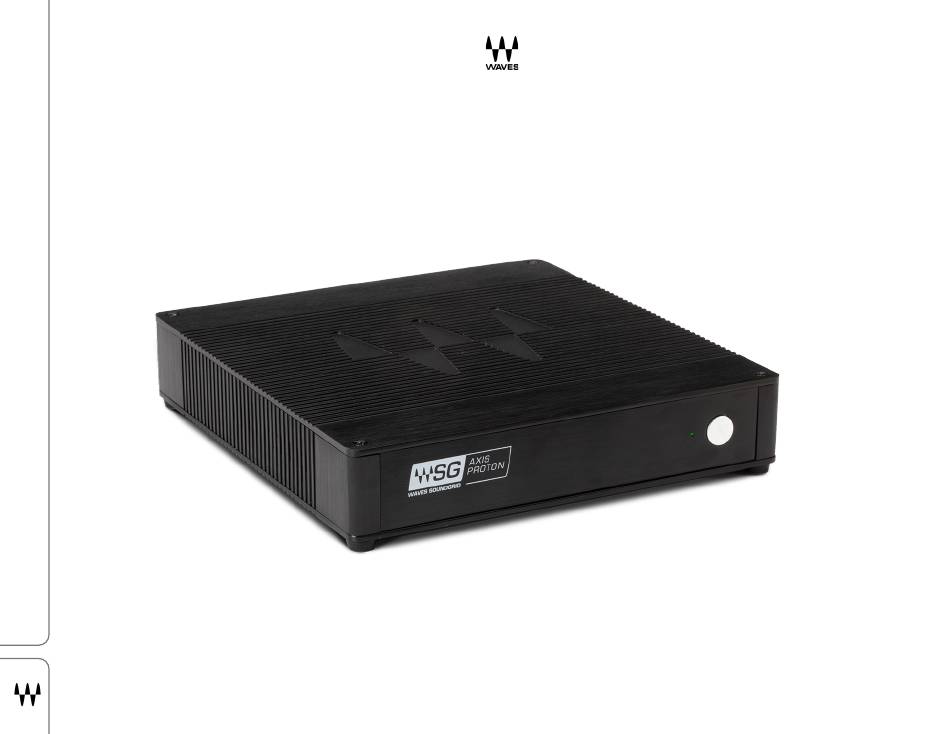

- Page 2 Axis Proton Axis Proton is a Windows-based computer designed to meet the specific needs of Waves applications. It’s physically rugged and operationally robust, and it perfectly conforms to the processing profile of Waves applications. Its small footprint lets you place it anywhere on your desk or next to a half-rack server on a rack shelf.
-
Page 3: Connections And Controls
Connections and Controls Front Panel Power switch and light Hold for five seconds to shut down. Axis Proton / User Guide... -
Page 4: Real Panel
RJ-45 Gb Ethernet connector. Use this 1 Gb port for all non-SoundGrid networks, including internet. Waves SoundGrid network port This 1 Gb port connects to the SoundGrid network switch. Do not use for other purposes. Axis Proton / User Guide... - Page 5 3. Use the LAN Ethernet port to connect to your LAN. 4. Connect the WSG port to the SoundGrid network 1Gb switch. Reserve this port for SoundGrid only. 5. Connect up to two displays to the video ports. There are one HDMI port and one DisplayPort.
-
Page 6: Display Setup
ISPLAY ETUP In this example, we will configure an Axis Proton computer with an eMotion LV1 mixer. Set monitors to the recommended resolution for multi-touch: 1280x768. When multiple displays are set to this resolution, an unexpected aspect ratio may appear in some displays. - Page 7 AVES OFTWARE Axis Proton comes with Waves v10 software preinstalled. If your Waves licenses are stored on a disk on key, simply insert it and open LV1 or other Waves applications. That ought to get you up and running. We suggest that you check to see if the installed software is up to date.
- Page 8 Launch LV1 and open the Setup window. Go to the System Inventory page. Start Auto-Configure. This function locates the Axis Proton Ethernet port that’s connected to the SoundGrid network, discovers and assigns devices, and patches audio. If Auto-Configure cannot locate the correct port, use the Port drop-down menu to assign it manually.
-
Page 9: Specifications
Length (front to back): 20.5 cm / 8 in switching Waves Central application Height: 3.8 cm / 1.5 in 12V DC, 3A Rubber Feet: Height: 4 mm / 0.15 in Weight: 1.06 Kg / 2.34 lbs. 1.06 Kg / Axis Proton / User Guide...
