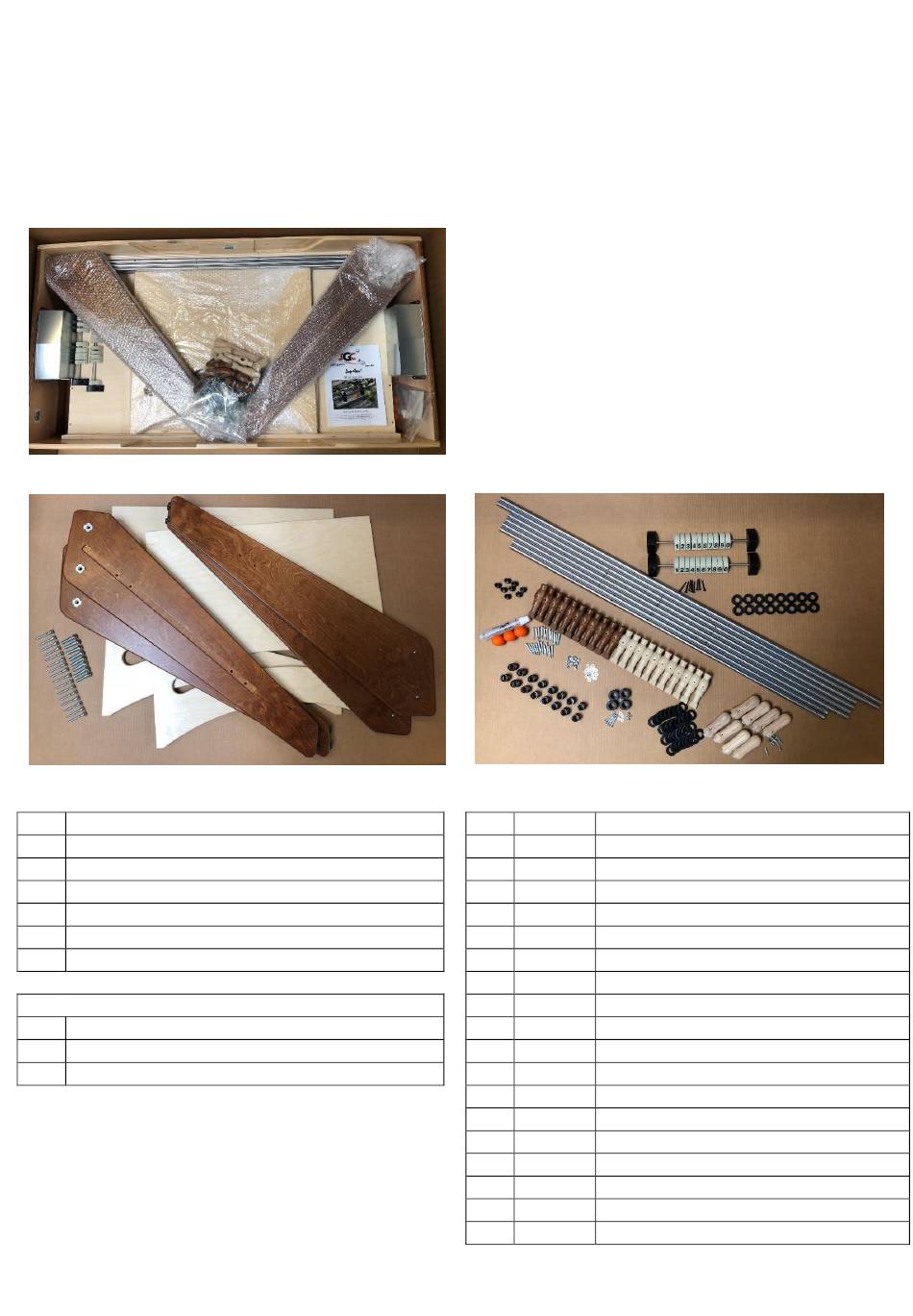

Remove packaging material till you see the condition like shown on the following picture:
Remove bubble protection till you have the following:
This package contains:
QTY DESCRIPTION
1
BODY OF FOOTBALL TABLE
2
LEG LEFT
2
LEG RIGHT
2
INTERCONNECTION PLATE FOR LEGS
16
ASSEMBLY SCREW FOR LEGS
8
MOUNTING SCREW FOR LEGS
OPTIONAL (PART# 0101720)
1
LIGHTING SUPPORT WITH CABLE TIE HOLES
1
LIGHTING SUPPORT WITHOUT CABLE TIE HOLES
1
LIGHTING FIXTURE
Assembly guidelines
Jupiter
®
Football table
(PART# 0102100)
Star
QTY
PART#
DESCRIPTION
2
0100359 NUMBER SET
2
0100105 ROD FOR NUMBERS
2
0100111 MOUNTING BLOCK SET FOR NUMBERS
8
0100117 MOUNTING SCREW COUNTER UNIT
2
0101125 2 PLAYER ROD
4
0101124 1/3 PLAYER ROD
2
0101123 5 PLAYER ROD
8
0100163 END PLUG FOR ROD
16
0100176 RUBBER
11
0100915 PLAYER DARK
11
0100914 PLAYER LIGHT
4
0100422 STOPPER RING FOR GOALIE ROD
32
0100112 FIBRE
16
0100134 SPRING
8
0100348 HANDLE SET + MOUNTING SCREW
26
0101066 MOUNTING SET PLAYER/STOPPER RING
1
0101067 SUPER OIL
3
0100404 BALL
Advertisement
Table of Contents
Summary of Contents for Jupiter Star 0102100
- Page 1 Assembly guidelines Jupiter Star ® Football table (PART# 0102100) Remove packaging material till you see the condition like shown on the following picture: Remove bubble protection till you have the following: This package contains: QTY DESCRIPTION PART# DESCRIPTION BODY OF FOOTBALL TABLE...
- Page 2 Tighten the 8 screws to assemble a left and right leg with the interconnection plate Place the leg assembly into the body of the football table and fasten it with the 4 provided screws Repeat this for the other leg assembly and turn the table over. Now you can insert the rods. From left to right on this picture: ‘TEAM 2’- side 3 player rod with handle hole on ‘TEAM 1’- side...
- Page 3 Shift all the parts onto the rod without using the bolts! Follow order parts on a goalie rod from left to right Fibre (flat side pointing outward) Spring (non clamping side of spring pointing to just placed fibre) Fibre (rounded side touching the spring) Rubber Stopper ring (flat side touching rubber) Player...
- Page 4 Mount the score unit with the provided screws Now your table should look like the following pictures: Oil the rods like described in the maintenance instructions and you are ready to enjoy your Jupiter Star!
