1.

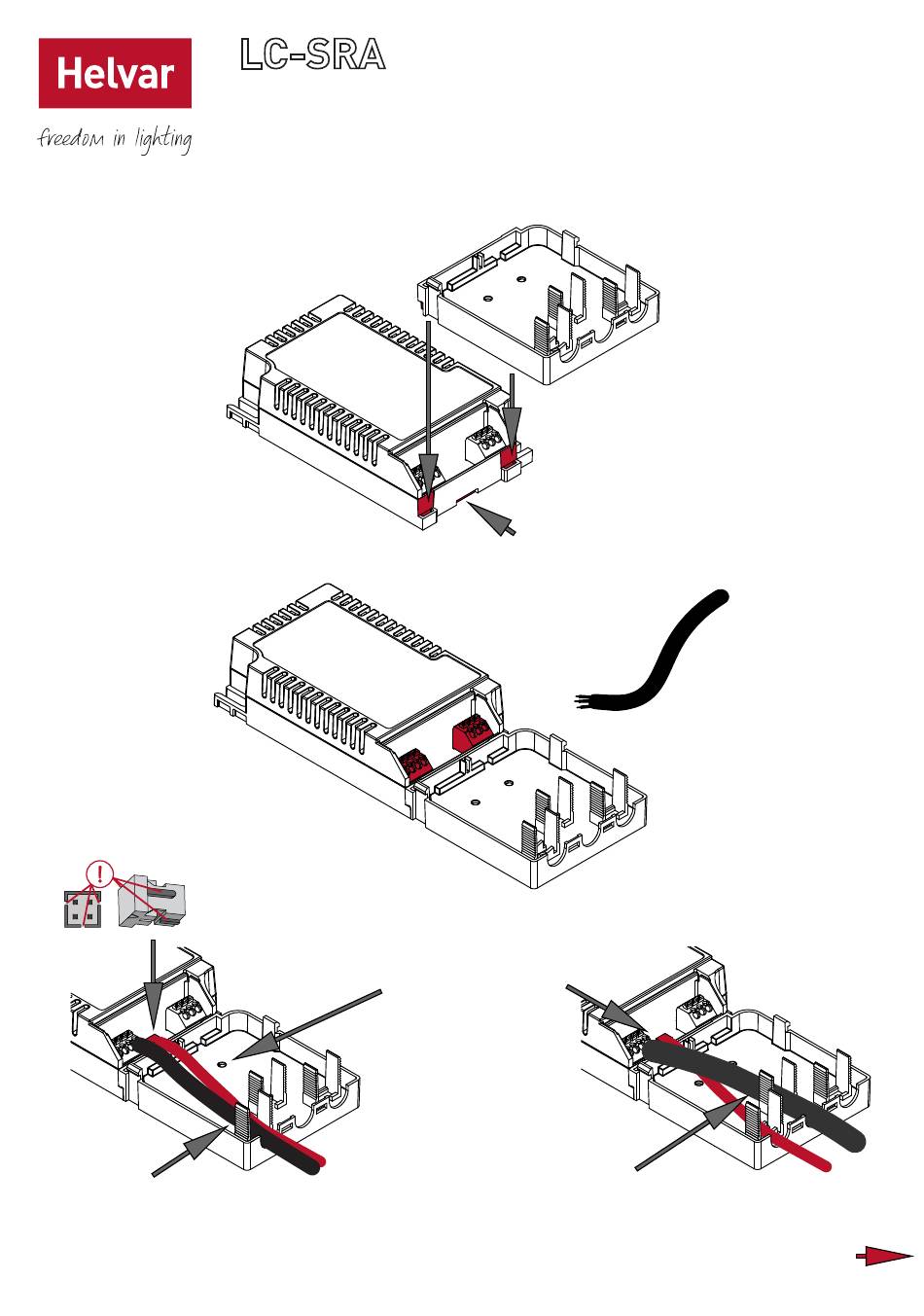

Lock the bottom part to the driver so that it clicks into place.
2.
Connect wires into correct terminals according to driver datasheet instructions.
NOTE for Active+ drivers
Ensure that the connector is properly inserted
Option 1.
Sensor / Control unit cable in the same slot with load cable
Helvar | Data is subject to change without notice.
LC-SRA
Strain Relief Installation Guide
and pushed firmly into place.
Avoid tension to the connector,
no pushing or pulling force.
Option 2.
Load cable separately in the center slot
(if load cable diameter > 4,8 mm)
Continues on the next page
I28 008 1 B 8.5.2019
Advertisement
Table of Contents
Summary of Contents for HELVAR LC-SRA
- Page 1 Sensor / Control unit cable in the same slot with load cable Load cable separately in the center slot (if load cable diameter > 4,8 mm) Continues on the next page Helvar | Data is subject to change without notice. I28 008 1 B 8.5.2019...
- Page 2 Check connections once more after locking the clamps! Lock the cover on the bottom part. Pay attention that the cover clicks into place properly! Helvar | Data is subject to change without notice. I28 008 1 B 8.5.2019...
