Battery charger &
Emergency LED light backup
Page 3 General Description
Functional Description
Specifications
Page 4 Connection diagram
Please read carefully the instructions in order to
get all the benefits of this device.
INTD0883
Reference Manual
www.pelekis.tech
Rev. 1.0 August 2017
Advertisement
Summary of Contents for INTELCO INTD0883

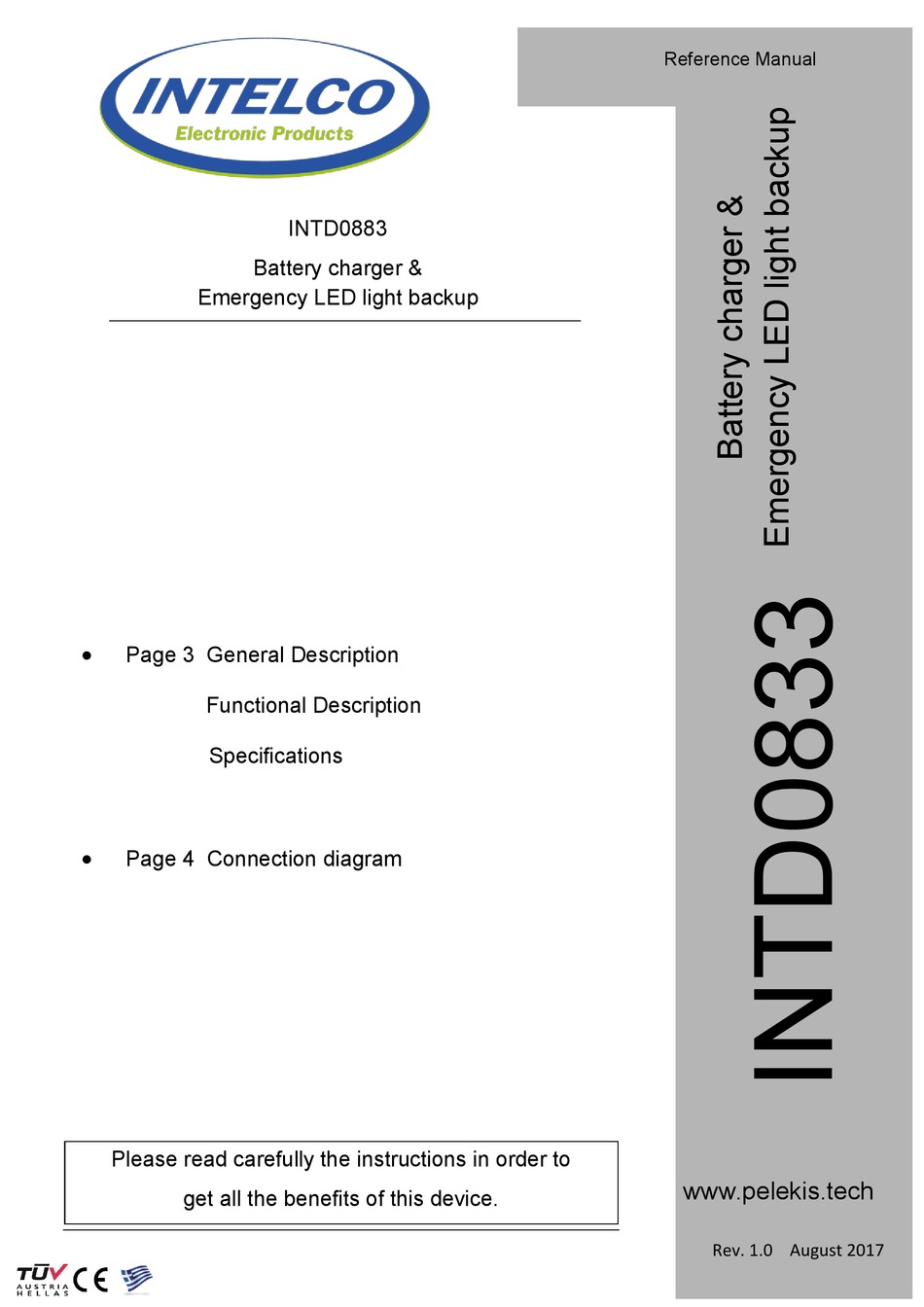

- Page 1 Reference Manual INTD0883 Battery charger & Emergency LED light backup Page 3 General Description Functional Description Specifications Page 4 Connection diagram Please read carefully the instructions in order to www.pelekis.tech get all the benefits of this device. Rev. 1.0 August 2017...
- Page 2 Version history v1.0 8/2017 Initial release INTELCO ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
- Page 3 DC Charging current (peak limited) 0.3A Mains fuse, Charging current limiter (battery short), Protection Temperature current limiter Sealed lead acid, Battery type 12V/3.2Ah Max continuous LED light power 5A (Contact rating) rating during battery backup INTELCO ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
- Page 4 Connection diagram A typical connection diagram for the INTD0883 Shaft light battery charger & Emergency light backup, is shown in figure 1. Figure 1 SLA BATTERY 12V LED LIGHT MAINS AC INPUT 230V INTELCO ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
