Home Easy HE-106 Manual

HOME
easy
The HE-106 Remote control Door Release allows
to you unlock and allow access control to a
variety of aluminium, timber and steel doors.
Simply press the button to unlock your door
Compatible with HE100, HE,101, HE301
-HE300, H301, HE303, HE307 & HE308
Suitable for right, left, inward and
outward opening doors.
-Fail Lock Operation
-30 Metre Range
-Automatic Relock
The HE-106 is an accessory product for the HomeEasy
range of products, additional units are required for the
unit to operate.

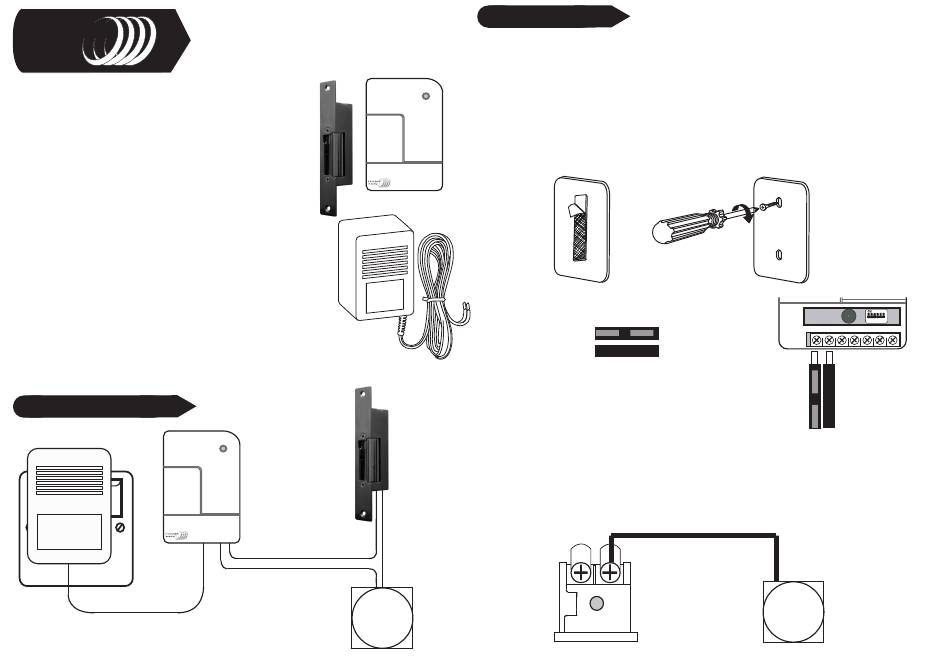

Set-Up Diagram:

ON
SX37
12V DC Power
HE-106 Remote Control
Door Release
HE-106
Door
Lock
SX37
T
12V AC~300mA (Not Included)
V1.0

Installation:

HE106 Door Release:
First select a suitable location for the HE-106 door release unit, it's recommended
that HE-106 is not placed in direct sources of sunlight, heat and onto metallic
surfaces, as this will the effect the operating performance.
Before fitting the door release unit, test the unit to make sure the location is suitable
e.g. operating the unit through an external wall will reduce the operating range, if
required move the unit close to the external wall. The HE-106 is an accessory product
1: The HE-106 base plate, can be attached using either the self adhesive strip or screws.
3: Connect the power adapter into the terminal
connection "1" and "2" as per the diagram.
Terminal 1 + wire
- wire
Terminal 2
4: Plug the SX37 power adapter into a standard 13amp
socket, the HE-106 will beep twice and the LED will flash to
indicate that the power is connected. Now program a
HomeEasy remote control to the HE-106 unit (Remote
Control Not Included).
-See Pairing/Deleting Remote Control

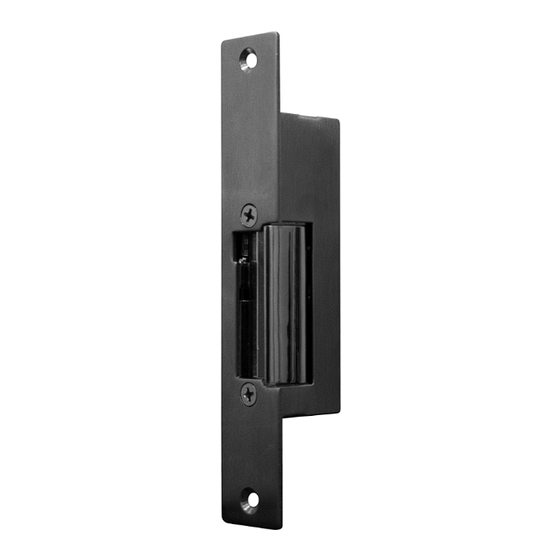

5: Install the HomeEasy Door Lock into the door frame, making sure the location
and orientation is correct for the door. The HomeEasy Door lock is powered by a
12VAC -300mA transformer, connect one terminal from the transformer to one of
the terminals on the door lock.
2: Clip the HE-106 on
the base plate using
the key-hole slots.
1 2 3 4 5 6
1 2 3 4 5 6 7
Posative Negative
T
12V AC~300mA (Not Included)
