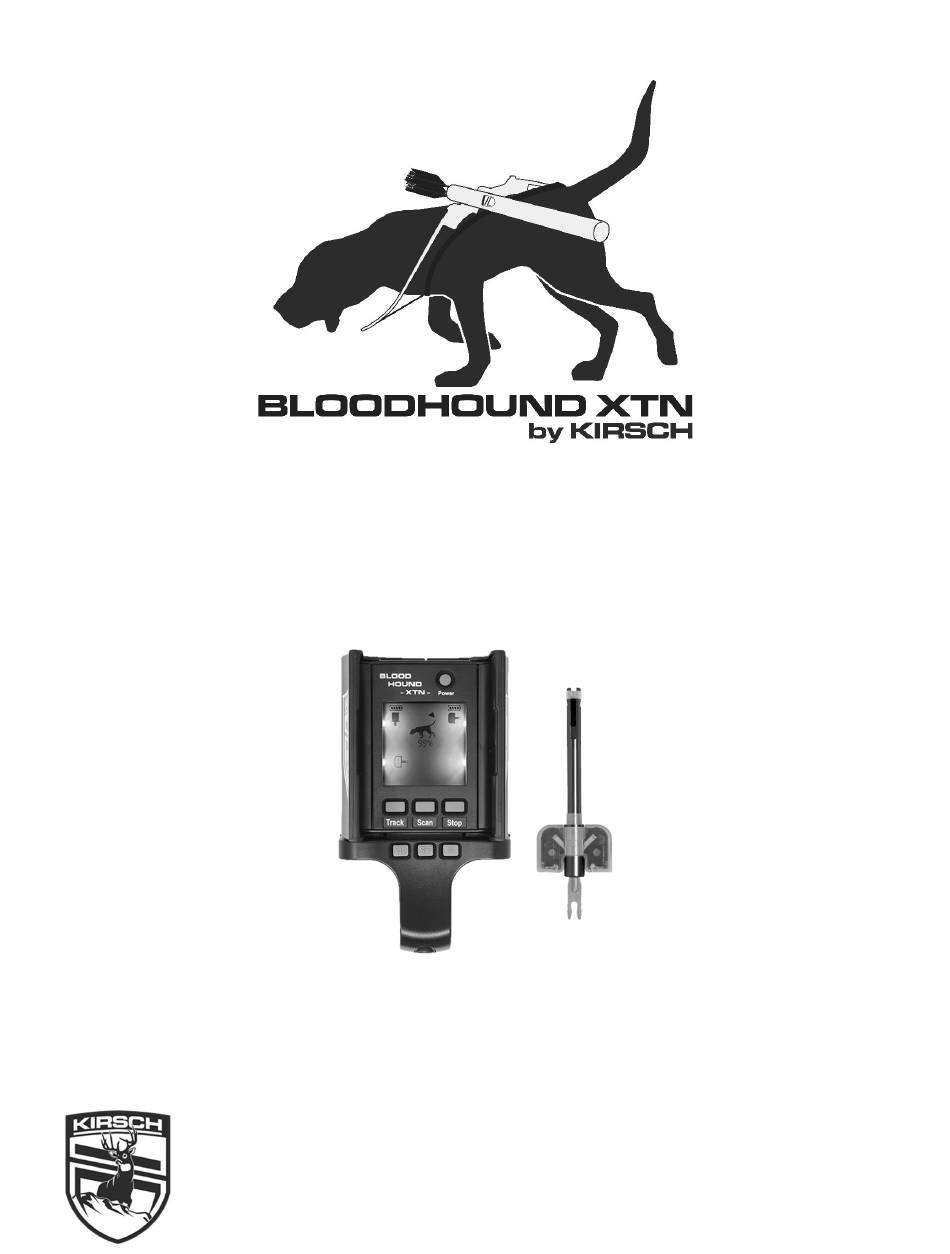

- Page 1 Tracking Nock System Operating Manual Rev F Copyright © 2020 Kirsch, LLC ALL RIGHTS RESERVED Kirsch, LLC 800.970.8041 33130 73rd St. CustomerService@KirschHunting.com Burlington, WI 53105 www.KirschHunting.com...
- Page 2 The Bloodhound XTN tracking system consists of 2 parts, the handheld Tracker and one or more XTN tracking nocks. The Tracker can be used with up to 6 different tracking nocks which are identified on the nock and on the Tracker’s display as numbers 1 through 6.
- Page 3 Bloodhound XTN Operating Instructions Inserting the XTN into the charger will show the status flash as described below in Battery Status section. If the battery needs charging, then the XTN will emit the charging flash which is a quick double flash once per second.
- Page 4 Bloodhound XTN Operating Instructions Crossbow bolts with 285”, .297”, and .300” inside diameters, in addition to a front bushing as in the above, require a second bushing on the rear of the battery holder shaft for snug fit with the bolt.
- Page 5 Bloodhound XTN Operating Instructions Crossbow: Component part number XTN-00007 flat pin nock Component part number XTN-00008 half-moon pin nock Component part number XTN-00009 capture pin nock 1. While rotating, press the pin nock onto the pin bushing until it is fully seated against the base of the pin bushing.
- Page 6 Note: As with any sporting equipment, it is very important that you read and follow all of the instructions provided with your Bloodhound XTN system. Particularly those pertaining to the mounting and use of the tracking nocks with...
- Page 7 Bloodhound XTN Operating Instructions Functions of the XTN Tracking Nocks Battery status. To see the state of charge, plug the XTN tracking nock into the charger. The LED’s will flash from 1 to 4 times to indicate the charge level. The chart below shows the levels for each of the 4 zones.
- Page 8 Bloodhound XTN Operating Instructions already active, launching the XTN again will repeat the 3-second LED flash and resume transmissions again. Note that it is not transmitting during the 3-second interval. The Tracker will probably lose sync with the XTN if it is tracking the XTN during a second launch. If scanning, the tracker will pick up the XTN in the scan as soon as it starts transmitting again, and if tracking it will automatically reacquire the XTN 4-5 seconds after transmissions resume.
- Page 9 Bloodhound XTN Operating Instructions System Operation Controls The Bloodhound XTN Tracker has a power button and 6 control buttons as shown above. Control Functions: Power: The power button is pressed for 3 seconds to toggle the Tracker on and off ...
- Page 10 Bloodhound XTN Operating Instructions Powering on the Tracker To power on the Tracker, hold the round power button down for 2-3 seconds until the display comes on. Initially the display will show all available icons and then will present the idle display as shown below.
- Page 11 Bloodhound XTN Operating Instructions As the scan progresses, each activated nock type found to be within range will have its number displayed on the screen. If more than one tracking nock is found, then an up-arrow will indicate which one has the highest signal level and therefore is likely to be the closest one to your location. Note that...
- Page 12 Bloodhound XTN Operating Instructions accidentally pass over the desired number, then you can continue pressing track and rotate through all the available numbers again. Tracking Screen when First Selecting a Tracking Nock Number If entering the track mode from the Scan mode, the process is the same as shown above but the results of the scan operation will be shown on the display.
- Page 13 Bloodhound XTN Operating Instructions Once the tracking nock is within range, the Searching indication will disappear, and the Tracker’s display will appear as shown below. Once tracking is started, the display will be updated once every 1.5 seconds. Directional Arrow (One of 16 arrows) Tracker’s...
- Page 14 In situations like this, you need to use some techniques to get the most out of the Bloodhound XTN system. Here are some tips on tracking that will help you track more effectively: 1.
- Page 15 Bloodhound XTN Operating Instructions arrow points straight ahead, now turn 90 degrees and check to see if the arrow still points in the same general direction. If it does, then that direction is likely to be correct. If the arrow now points in the opposite direction of what it did originally, turn your body to face that direction, if the arrow confirms that direction then it is likely the correct path to the tracking nock.
-
Page 16: Safety Information
SAFETY INFORMATION ARROW REST WARNING: Before shooting any Kirsch tracking nocks it is extremely important to inspect the arrow rest to ensure that it is a proper choice and properly adjusted to clear the diameter and width of the tracking nock being used. FAILURE TO PROPERLY SELECT AND ADJUST THE ARROW REST TO CLEAR THE TRACKING NOCK WINGS SIGNIFICANTLY INCREASES THE RISK OF INJURY TO THE SHOOTER AND DAMAGE TO THE EQUIPMENT. - Page 17 Bloodhound XTN Operating Instructions Selecting the correct arrow length is the responsibility of the shooter and failure to do so could result in severe injury, and/or damage to shooting equipment. TRACKING NOCK INSPECTION WARNING: INSPECT EACH ARROW AND TRACKING NOCK FOR DAMAGE PRIOR TO EVERY SHOT.
- Page 18 Customer Service using the number or email address on the Kirsch support page. Items sent back without an RMA number will be refused and returned to the sender. Kirsch, LLC will not be liable for any injuries or damages to any person, property, or equipment that is caused by improper use/installation/maintenance, modification, or alteration of this product or any use other than normal personal archery use.
- Page 19 (including minimum age requirements) in regard to the possession, use and sale of any item purchased from Kirsch. By placing an order, you represent that the order is lawful and will be used in a lawful and appropriate manner. In addition, you acknowledge that any goods sold in the U.S. may be subject to the import or export laws of the country in which the goods are sold.
- Page 20 Bloodhound XTN Operating Instructions Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
