Summary of Contents for Labtech VP30

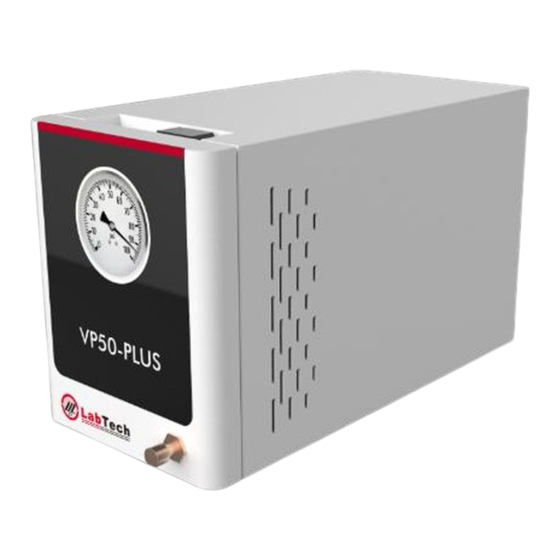

- Page 1 VP30 - VP18 Plus - VP50 Plus VACUUM PUMPS USER MANUAL...
- Page 2 For any possible clarification or any request for assistance please contact either our local Representative or: LabTech Srl Via Fatebenefratelli, 1/5 24010 Sorisole (BG) Italy...
-
Page 3: Table Of Contents
5. SOLVENTS TABLE ................11 6. SERVICE ..................12 The information contained in this document may be the object of patent applications by LABTECH. The possession of this document does not confer any license rights in and to such patents. -
Page 4: Introduction
VP SERIES – User Manual 1. INTRODUCTION Model VP30 VP18 PLUS VP50 PLUS 230V 50/60HZ 230V 50/60HZ 230V 50/60HZ Voltage (V) Power (W) Pumping speed (L/min) Vacuum Pressure (mbar) 315×180×240 315×180×240 315×180×240 Dimension (mm) (W×L×H) Weight (kg) - Page 5 VP SERIES – User Manual...
- Page 6 VP SERIES – User Manual FILTER FLASK (ACCESSORY) Beaker Clamp Funnel Filter Flask...
-
Page 7: Safety Rules
Always turn off the unit and disconnect the power cord from the plug source before performing any service or maintenance procedure or before moving the unit. It’s better to consult the Labtech Service Team before performing installation, operation, maintenance, procedures other than those described in this manual may result in a hazardous... - Page 8 Regular check of liquid waste barrels as well as working conditions of the vent fan are required to avoid the risk of leakage caused by corrosion and to avoid the formation of organic solvent vapors affecting operators’ health. If there is a fault, please contact the Labtech Service Team.
-
Page 9: Operation Procedure
VP SERIES – User Manual 3. OPERATION PROCEDURE Step 1: Use a rubber pipe to connect the instrument to the vacuum pump tightly after making sure the in and out connectors are connected. Please make sure the whole system does not leak and it is tightly connected. -
Page 10: Troubleshooting
VP SERIES – User Manual 4. TROUBLESHOOTING The Pump Does Not Start After Switching The Power On Check the power cord and ensure it is plugged in. Check whether or not the system has higher negative pressure. This can be judged from the vacuum gauge. -
Page 11: Solvents Table
VP SERIES – User Manual 5. SOLVENTS TABLE... -
Page 12: Service
VP SERIES – User Manual 8. SERVICE The LABTECH worldwide technical support network consists of highly trained Field Service Engineers, Technical Support Specialists and Service Coordinators who are ready to quickly assist customers with answers and solutions to service needs and application questions.
