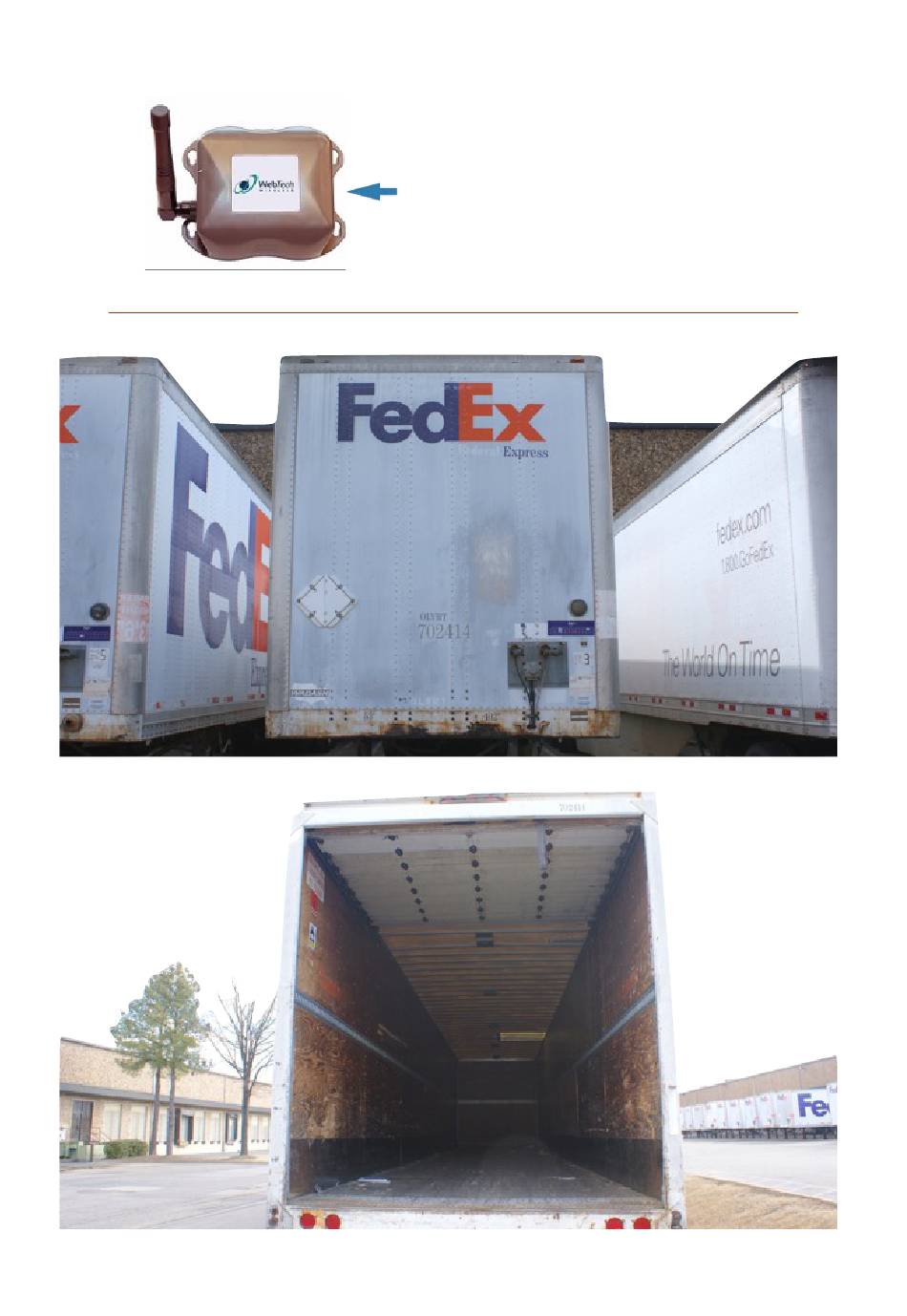

FedEx 2G/3G Migration Installation Document
Trailers
UPDATE THIS LOCATOR TYPE ONLY.
(WT5000)
CAUTION! Assure power to trailer is disconnected before continuing.
1
Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf
Advertisement
Summary of Contents for Cetacea Sound WT5000
- Page 1 FedEx 2G/3G Migration Installation Document Trailers UPDATE THIS LOCATOR TYPE ONLY. (WT5000) CAUTION! Assure power to trailer is disconnected before continuing. Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf...
-
Page 2: Wiring Diagram
Pos. 1 (white) Pos. 7 (blue) Stubby Cellular Antenna Short Cabled GPS Antenna Trailer Door Sensor Kit 7-Way Trailer Door Sensor Cable Power Cable Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf... - Page 3 FedEx 2G/3G Migration Trailers Installation Document Trailers Remove 2 screws from Locator/plate. Carefully remove antennas and disconnect cables from Locator. Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf...
- Page 4 FedEx 2G/3G Migration Trailers Installation Document Trailers Gently pull tabs to release new Locator from mounting plate. Mark locations for new holes using new mounting plate. Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf...
- Page 5 FedEx 2G/3G Migration Trailers Installation Document Trailers Drill holes using 3/16” drill bit. Mount plate as shown. Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf...
- Page 6 Reattach antenna and secure with dab of RTV 100% silicone to secure. Reconnect Locator and secure plugs. Note adapter. Mount new Locator into bracket. Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf...
- Page 7 FedEx 2G/3G Migration Trailers Installation Document Trailers Secure cables as shown. *CALL 888-FDX-TECH WITH OLD/NEW LOCATOR SERIAL AND TRAILER NUMBERS Property of Cetacea Sound Inc. 800-489-1759 cetacea.com CONFIDENTIAL DOCUMENT Not for reproduction without expressed written permission. 07/15-csi/jlf-jw-jf...
