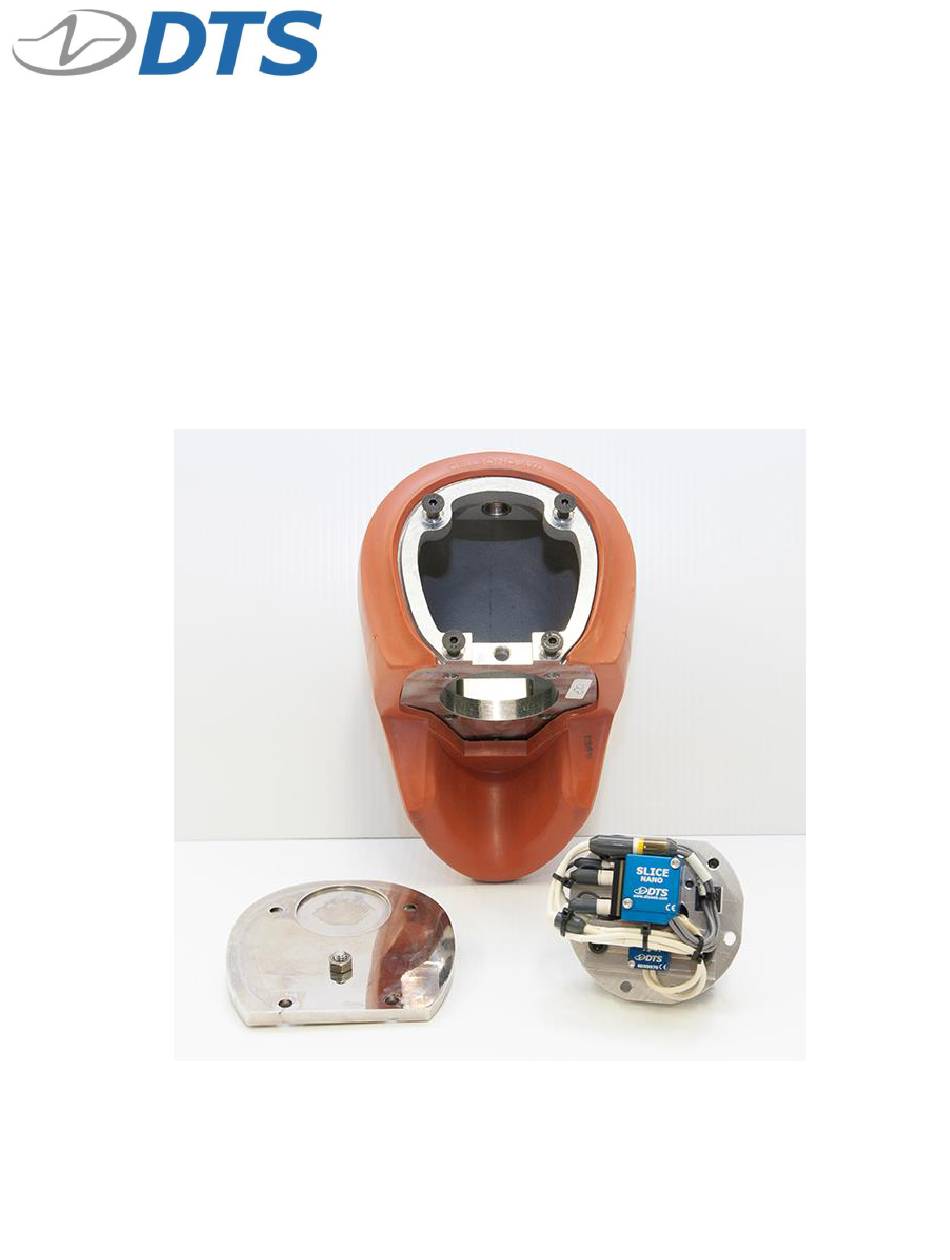

SLICE Free Motion Headform (FMH)
User's Manual
January 2018
© Diversified Technical Systems, Inc. - All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLICE Free Motion Headform and is the answer not in the manual?

Questions and answers

Lee Edwards
February 5, 2025

Is it possible to record multiple tests before downloading the test in SLICEWare? Or do I have to reconnect the FMH to SLICEWare after every single test and download each test individually? Asking because I want to conduct multiple tests while being disconnected from software.

0
1 comments:
Mr. Anderson
May 14, 2025

Yes, multiple tests can be recorded on the DTS SLICE Free Motion Headform before reconnecting to SLICEWare for downloading. The SLICE system autonomously collects and stores data to flash memory after being armed and receiving a Start Record or Trigger signal, without needing a PC connection during data collection.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Summary of Contents for DTS SLICE Free Motion Headform

  • Page 1 SLICE Free Motion Headform (FMH) User’s Manual January 2018 © Diversified Technical Systems, Inc. - All Rights Reserved...

  • Page 2: Table Of Contents

    SLICE Free Motion Headform User’s Manual January 2018 Table of Contents DTS Support ....................3 Introducing the SLICE FMH Headform System ..........4 Overview of SLICE FMH Headform System ............4 Customer Provided: FMH Headform Skin & Skull ..........4 24000-00341: FMH Upper Neck Integration Kit ..........

  • Page 3: Dts Support

    DTS has support engineers worldwide with extensive product knowledge and test experience ready to help via telephone, e-mail or on-site visits. The best way to contact a DTS support engineer is to submit a request through the DTS Help...

  • Page 4: Introducing The Slice Fmh Headform System

    SLICE FMH Headform Assembly Procedure. The FMH Headform is integrated with DTS’s SLICE NANO Base+, SLICE NANO Bridge, and SLICE NANO FMH Headform Battery. Detailed specifications for the SLICE Base+ and Bridge can be found on page 18 (Appendix A: SLICE Hardware Specifications) or at support.dtsweb.com.

  • Page 5: 24000-00341: Fmh Upper Neck Integration Kit

    SLICE Free Motion Headform User’s Manual January 2018 24000-00341: FMH Upper Neck Integration Kit This kit is required for every SLICE FMH. This kit is used to integrate the SLICE Data Acquisition and sensors into the FMH Headform. The replaces the standard FMH / H3 upper neck load cell structural replacement.

  • Page 6: 13000-40760: Free Motion Headform (Fmh) Usb Interface Kit

    SLICE Free Motion Headform User’s Manual January 2018 13000-40760: Free Motion Headform (FMH) USB Interface Kit This Free Motion Headform (FMH) USB Interface Kit connects the USB port on your PC and a power supply provided with your system to the FMH Headform via the upper neck structural replacement connector.

  • Page 7: Power/Charging Requirements

    SLICE Free Motion Headform User’s Manual January 2018 Power/Charging Requirements The SLICE NANO FMH Headform Battery contains an integrated, 8.4 V, 80 mAh, rechargeable lithium battery sufficient to operate the system for cable-free testing. When the 12 V, 2.5 A power supply is connected to your system, it will simultaneously charge the battery and power the SLICE FMH Headform system until it is disconnected prior to the test.

  • Page 8: Status Led

    SLICE Free Motion Headform User’s Manual January 2018 Status LED This LED is green and provides information on arming and recording status. It is on, off or blinking. After unit is turned on, LED will blink during sensor warm-up and system arming.

  • Page 9: Basic Care And Handling

    The SLICE NANO Base, Bridge and FMH Headform Battery are supplied with calibration data from the factory. DTS recommends annual recalibration to ensure that the system is performing within factory specifications. SLICE hardware is not user-serviceable and should be returned to DTS for service or repair.

  • Page 10: Sliceware Software

    SLICE Free Motion Headform User’s Manual January 2018 SLICEWare Software Software Installation 1. Locate the set-up.exe file on the CD or USB drive provided. Double-click the file to begin the installation and follow the prompts on your screen. 2. When installation is complete, copy the XML file found in the folder “copy contents to SLICEWare directory after software install”...

  • Page 11: Level Trigger Setup

    SLICE Free Motion Headform User’s Manual January 2018 Level Trigger Setup The SLICE FMH Headform system works best when a “level trigger” is set on one or multiple channels. This will trigger the system and record data when the sensors see g- levels outside of a specified range.
  • Page 12 SLICE Free Motion Headform User’s Manual January 2018 9. Open the tab. Complete the test set-up information (data collection mode, length of time, sample rate, etc.). 10. Click the Auto-Arm button. Click OK. 11. Close SLICEWare and disconnect cable from the backplate.

  • Page 13: Troubleshooting

    SLICE Free Motion Headform User’s Manual January 2018 Troubleshooting If the LED continues to blink after 45 sec, the system did not initialize properly. To clear the fault, reconnect the system to the power supply and PC (step 4 above), then start SLICEWare.
  • Page 14 SLICE Free Motion Headform User’s Manual January 2018 2. Selecting a test will load it in the viewing area. 3. To calculate the resultant, Select the Calculate button . Select “Resultant” from the type drop-down list, give this new calculated channel a name, and add the three accelerometer channels.
  • Page 15 SLICE Free Motion Headform User’s Manual January 2018 4. Multiple data channels can be viewed on the graph at one time. You can choose which channels to view using 5. You can zoom by drawing a window around a region-of-interest.

  • Page 16: Exporting Data

    SLICE Free Motion Headform User’s Manual January 2018 Exporting Data 1. Open the tab and select the data set you wish to export from the tests available. 2. Select an export format for the data. 3. Select whether the exported data should be filtered or unfiltered. If filtered is selected, SLICEWare will apply the software filter associated with each sensor in the test.

  • Page 17: Real-Time Mode

    SLICE Free Motion Headform User’s Manual January 2018 Real-Time Mode To view data from the channels real-time, click the tab. You can view individual channels, all three channels. Note that the data is being sampled continuously at a relatively low sample rate. For example, you may not see a short duration data pulse when hitting the SLICE against a surface.

  • Page 18: Appendix A: Slice Hardware Specifications

    SLICE Free Motion Headform User’s Manual January 2018 Appendix A: SLICE Hardware Specifications The details below outline the basic specifications of the SLICE system. The SLICE FMH Headform System uses SLICE NANO. support.dtsweb.com (Rev. 0)

  • Page 19: Appendix B: Pin Assignments

    SLICE Free Motion Headform User’s Manual January 2018 Appendix B: Pin Assignments 13000-30131 Termination Specifications (looking into the connector) Wire color Function Notes Green +Sig White -Sig Yellow Black Shield -ID/Shield Solder bridge on pins 6 and 7 12-pin Interface Connector (LEMO ECG.2B.312.CLL)

  • Page 20: 5-Socket Fmh Head Interface Connector

    SLICE Free Motion Headform User’s Manual January 2018 5-socket FMH Head Interface Connector (looking into the connector) Function −Status Ground +Status Event 12-socket FMH Head Interface Connector* (looking into the connector) Function On (contact closure input to ground) Start (contact closure input to ground)

  • Page 21: Appendix C: Slice Fmh Headform Das Kit Contents

    SLICE Free Motion Headform User’s Manual January 2018 Appendix C: SLICE FMH Headform DAS Kit Contents Figure 6: SLICE FMH Headform DAS Kit 13000-30701: Cable, SLICE FMH PC Comm Interface 13000-30681: Cable, SLICE FMH LED Pushbutton 13000-20090: SLICE FMH Stack Battery The 12-socket connectors are functionally identical.

  • Page 22: Appendix D: Slice Fmh Headform Assembly Procedure

    SLICE Free Motion Headform User’s Manual January 2018 Appendix D: SLICE FMH Headform Assembly Procedure Note: If Loctite is called out in this procedure, use a small amount of Loctite 222MS Low Strength. Use standard bolt torques unless specifically called out for in these procedures.
  • Page 23 SLICE Free Motion Headform User’s Manual January 2018 3. Install Switch LED Assembly: Carefully insert the Switch LED connector of the Switch LED Assembly through the hole. The Switch LED will audibly snap into place with a small amount of force.
  • Page 24 SLICE Free Motion Headform User’s Manual January 2018 5. Install Sensor Mount: Use 2X ¼-28 x 1/2” Alloy Steel Socket Cap Screws to secure sensor mount to plate. Install the proper accelerometer mount depending on the type of sensor used. The 7264 style accelerometer mount is shown below.
  • Page 25 SLICE Free Motion Headform User’s Manual January 2018 6. SLICE Stack Assembly: First, plug the SLICE NANO Bridge to the top of the SLICE NANO Base. Next, carefully plug the SLICE NANO FMH Headform Battery to the bottom of the SLICE NANO Base. Lastly, add the SLICE Stack Cover and install 2X M3 x XX mm Stainless Steel Socket Head Cap Screws.
  • Page 26 January 2018 1. DAS and Sensor Mounting: Mount accelerometers or 6DX PRO or ACC3 PRO to manufacturer’s instructions and torque. When using the DTS ACC3 PRO or 6DX PRO sensors, do not forget to use the included spacer (89100-19440) to bring the sensor to the correct height.
  • Page 27 SLICE Free Motion Headform User’s Manual January 2018 Install Skull and Skin Assembly: Insert the SLICE FMH neck assembly into the headform by rotating 90 degrees once inside the skull. Install all fasteners. Assembly Compete! support.dtsweb.com (Rev. 0)

  • Page 28: Appendix E: Minimizing System Self-Heating

    SLICE Free Motion Headform User’s Manual January 2018 Appendix E: Minimizing System Self-Heating Follow the procedure outlined below to avoid any unnecessary heat generation in excess of ~1°C. 1. Charge the system using a 12 V power supply. 12 V is the minimum required by the SLICE system;...
  • Page 29 SLICE Free Motion Headform User’s Manual January 2018 Revision History Date Description 22 Jan 2019 Initial release. support.dtsweb.com (Rev. 0)
