Summary of Contents for Marlon 350

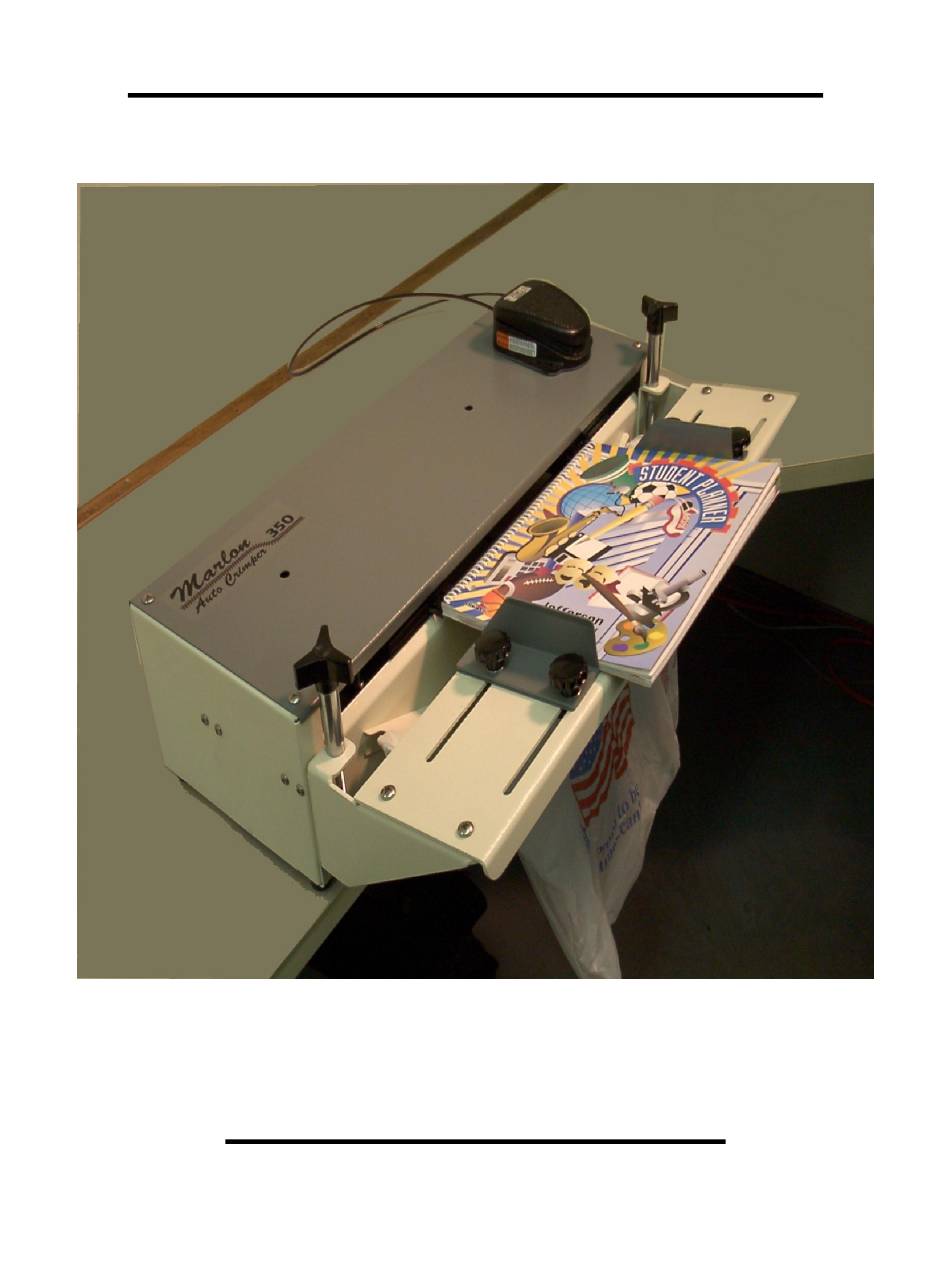

- Page 1 MARLON 350A AUTO CRIMPER OPERATORS MANUAL...
- Page 2 6mm through 50mm coil, with an adjustable binding length from 3.5-inches to 14-inches. The Marlon 350 is capable of 50 cycles per minute, and features a coil waste chute that uses standard plastic grocery bags for clipping waste containment. The...
- Page 3 MARLON 350 AIR CONNECTIONS QUICK CONNECT ADAPTER PICTURED IS NOT INCLUDED WITH MACHINE. CONNECT THE FOOT USE A SIMILAR ADAPTER SWITCH TO THE CRIMPER THAT MATCHES YOUR BY INSERTING THE CLEAR AIR SUPPLY. TUBE INTO THE TOP PUSH LOCK FITTING AND THE MAIN AIR INPUT ¼”...
-
Page 4: Blade Selection
BLADE SELECTION The Marlon 350 Auto Crimper features interchangeable cutter blades. Your Marlon 350 is shipped with the B-size cutter blades installed. Use the following chart to determine what blade size is required for the coil diameter you are crimping. -
Page 5: Cutter Head Assembly
CUTTER HEAD ASSEMBLY Air Cylinder Clamp blade spring Clevis Cutter blade assembly Clevis Pin Air cylinder mounting bolt... - Page 6 B-SIZE CUTTER BLADE ASSEMBLY LEFT CUTTER HEAD RIGHT CUTTER HEAD LEFT BASE PLATE RIGHT BASE PLATE A, B & C – SIZE ANVIL BLADE CLAMP SPRING B – SIZE .126” SPACERS B & C – SIZE CLAMP B – SIZE CUTTER BLADE BLADE CLEVIS PIN &...
- Page 7 Refer to pages five and six for part descriptions. Changing from B to A-size blades: 1.) Disconnect the air supply from Marlon 350. 2.) Remove the top cover from the machine. 3.) Unhook the springs from the studs on both sides.
- Page 8 A-KIT COIL GUIDE INSTALLATION PICTURED ABOVE ARE THE COIL GUIDES INSTALLED ON THE CUTTER ASSEMBLY. THESE GUIDES ARE ONLY USED WITH THE A-SIZE BLADE CONFIGURATION. THE COIL GUIDES ARE STAMPED “L” FOR LEFT AND “R” FOR RIGHT AND ARE ALWAYS INSTALLED WITH THE LETTERS UP. YOU HAVE TWO “L”...
- Page 9 CHANGING FROM “B” to “C” size blades 1.) Disconnect the air supply from Marlon 350. 2.) Remove top cover from machine. 3.) Unhook the springs from the studs on both sides. 4.) Remove the three 10-24 nylock nuts from each side.
- Page 10 C-CUTTER BLADE INSTALLATION CONNECT THE AIR CYLINDER TO THE HOLE AT THE REAR OF C-CUT BLADES. THE TWO CLEVIS PINS INSTALLED ON THESE BLADES ARE USED TO ACTIVATE THE CLAMP BLADES. PICTURED ABOVE ARE THE C-SIZE CUTTER BLADES. THE CLEVIS PINS INSTALLED ON THE C-CUTTER BLADES ARE NEEDED TO PUSH THE CLAMP BLADES.
- Page 11 AIR CYLINDER MOUNTING POSITIONS Mount the air cylinders in the top inside holes for C-size blade configuration. Mount the air cylinders in the bottom outside holes for A and B-size blade configurations.
- Page 12 TABLE ADJUSTMENTS Now that you have the correct blade configuration ready for the coil diameter you are crimping you need to adjust the table height and cutter head spacing (width) for your book. Refer to page 13 for table adjustment details. 1.) Loosen the two clamp knobs on the left-hand book guide;...
- Page 13 TABLE ADJUSTMENT DETAILS TWO ACCESS HOLES IN TOP COVER TABLE HEIGHT ADJUSTER KNOBS: ONE ON EACH SIDE BOOK GUIDES: ONE ON EACH SIDE CLAMP KNOBS: TWO ON EACH BOOK GUIDE...
-
Page 14: Troubleshooting Guide
TROUBLE SHOOTING GUIDE PROBLEM SOLUTION CRIMPER DOESN’T CYCLE VERIFY THAT AIR IS PLUGGED IN AND TURNED ON COIL IS BEING CRIMPED BUT NOT ADJUST TABLE HEIGHT FOR PROPER ALIGNMENT... - Page 15 MARLON 350A AUTO CRIMPER MARLON INC. 123 EAST 45 STREET BOISE, IDAHO 83714 Ph (800) 461-9301 Fax (208) 321-2796...
