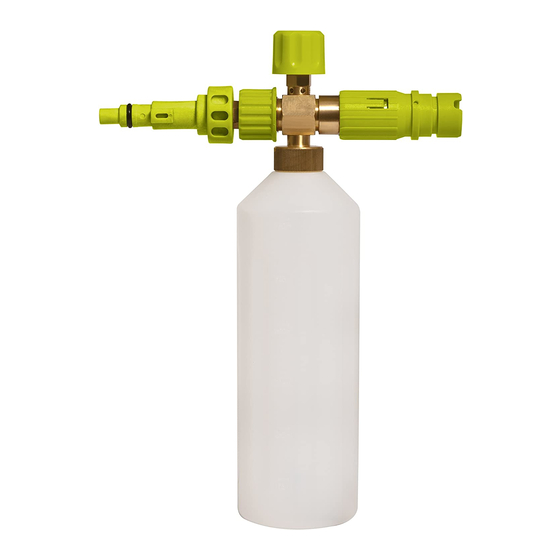

sunjoe SPX-FC34 Assembly Quick Manual

SPX3000/SPX4000/SPX9000 Series

SPX2000/SPX6000/SXP7000 Series

SPX200/SPX1000 Series

FOR USE WITH

SPX3000/SPX4000/SPX9000 SERIES:

1.If not already done, detach your spray wand from your trigger gun.

2.Attach the transfer adapter to your trigger gun.

3.Take the foam cannon and align the two tabs with the transfer adapter.

4.Once aligned, insert the tip of the locking collar on the foam cannon into the transfer adapter, twist counter clockwise to lock into place.

5.Adjust the foam cannon if needed. After any adjustment is made, use the locking collar to lock the attachment into place. and twist to lock.

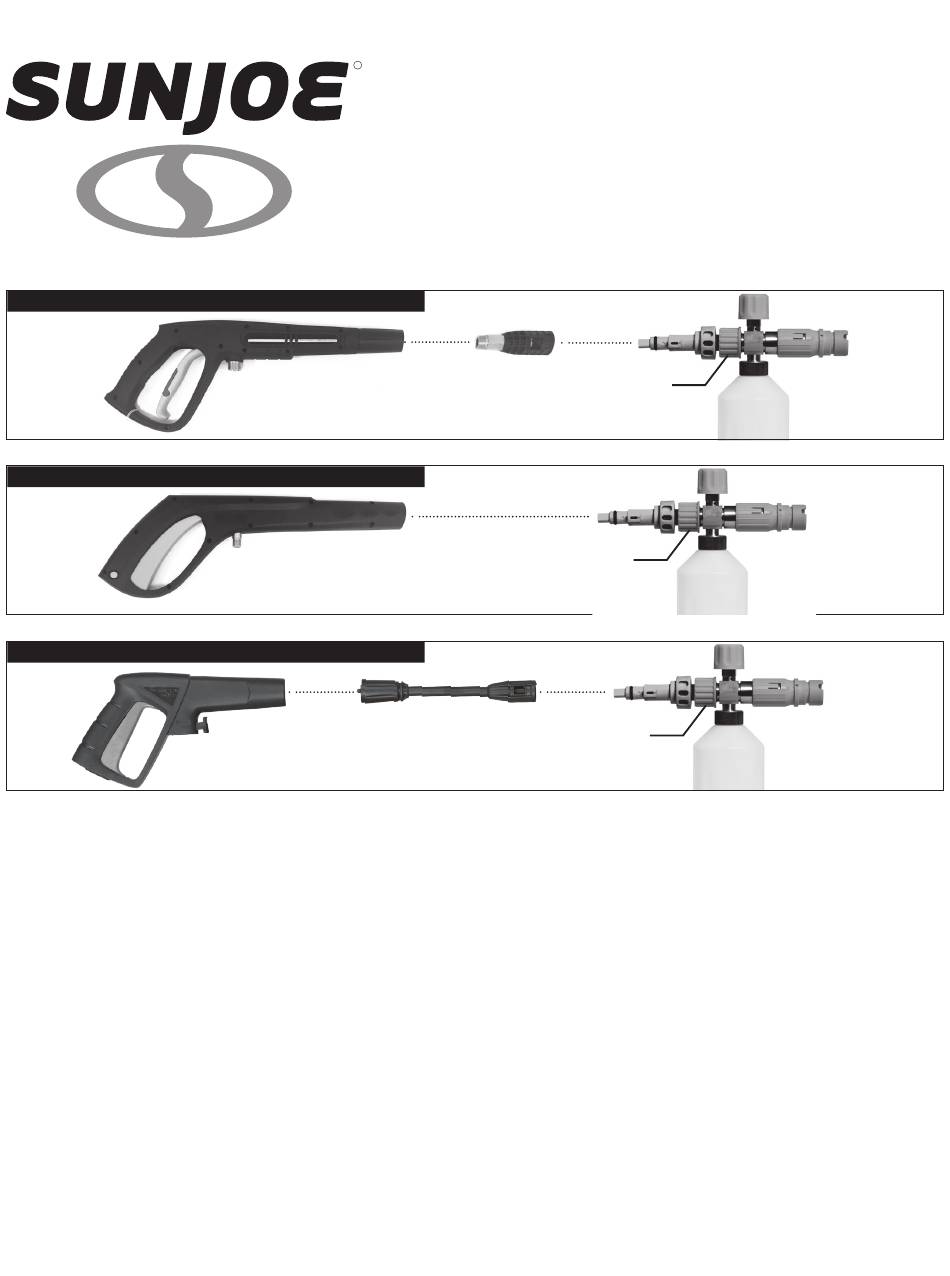

SPX-FC34 ASSEMBLY QUICK GUIDE

Trigger gun

Transfer adapter

Locking collar

Middle wand

Locking collar

Table of Contents

Need help?

Do you have a question about the SPX-FC34 and is the answer not in the manual?

Page 1 SPX-FC34 ASSEMBLY QUICK GUIDE SPX3000/SPX4000/SPX9000 Series Trigger gun Transfer adapter Locking collar SPX2000/SPX6000/SXP7000 Series Locking collar Trigger gun SPX200/SPX1000 Series Middle wand Locking collar Trigger gun FOR USE WITH SPX3000/SPX4000/SPX9000 SERIES: 1.If not already done, detach your spray wand from your trigger gun.
Page 2 NOTE: 1.There is a soap knob on the top of your SPX-FC34. Turn it clockwise to release soap, and counter clockwise to stop. 2.You can adjust the amount of soap you would like to release by turning the front part of your SPX-FC34. Turn clockwise for a larger spray, and counter clockwise for a pin point spray.
