Golight Stryker ST Series Quick Troubleshooting Manual

REMOTE TYPE: WIRELESS HANDHELD REMOTE CONTROL (3000ST, 3051ST, 3006ST, 30002ST,
30512ST, 30062ST, 30004ST, 30514ST, 30064ST, 30005ST, 30515ST, 30065ST)

1. My light has NO function. Potential issues:


Programming Issue (Wireless Remotes Only)

Insufficient Power Supply

Defective Batteries or Defective Wireless Remote

Defective Receiver
Programming Issue- Our new Stryker ST Series will not work out of the box. The remote MUST BE PAIRED TO THE
LIGHT before first use. The programming process for the ST Series Handheld Wireless Remote Control (Part# 30300) is
different from our previous remotes.
1. Set remote for spotlight #1. Depress any directional key to check. The indicator LED for spotlight #1 only should be
lit when you do this. If not, depress the spotlight selector button for five seconds to toggle to next setting. (You may
have to do this twice.)
2. Press and hold the on/off key and the speed selector key on the remote while simultaneously reconnecting power to
the spotlight. After three seconds the lamp will flash three times to confirm the pairing process was successful
Insufficient Power Supply- Verify your light is receiving adequate current. Halogen units draw 5.5 Amps at 13.8V / LED
units draw 3.7 Amps at 13.8V.
Defective Batteries or Defective Wireless Remote- There is a red LED light in the center of your wireless remote control
that should light up every time you depress a button. If there is no red LED light, start by replacing the batteries in your
remote control (2- AAA batteries). If this does not resolve the issue, the problem may be the remote control. If available, use
a different remote control to test the light. If a different remote is not available, please call our Customer Service Department
for assistance.
Defective Receiver- If you have done all of the above and your light still has no function; you may have a defective receiver.
Please call our Customer Service Department for further instructions.
2. My light will rotate left/right and up/down, but the bulb will not illuminate. Potential Issues:

Insufficient Power Supply

Polarity Reversed (LED Only)

Defective Halogen Bulb

Defective Receiver
Insufficient Power Supply- If the motors are operational, this is a sign that the unit is receiving adequate current, but not
enough current to illuminate the bulb. Verify your unit is receiving adequate current. Halogen units draw 5.5 Amps at 13.8V /
LED units draw 3.7 Amps at 13.8V.
Polarity Reversed- Our LED units are polarity sensitive (Halogens are not). If your light will rotate, but not turn on, verify
your power wires are hooked up accordingly (+) to (+).
Defective Halogen Bulb- Is there a break in the filament? If no, remove the bulb and perform a continuity test.
Defective Receiver- When pressing the power button on the remote control, do you hear a "clicking" sound? If so, this
means the receiver and the remote control are communicating, and the issue is most likely the bulb. (Please note: in rare
circumstances, a defective receiver can still produce a clicking sound.) If you do not hear anything when you press the power
button, the issue could be the receiver.

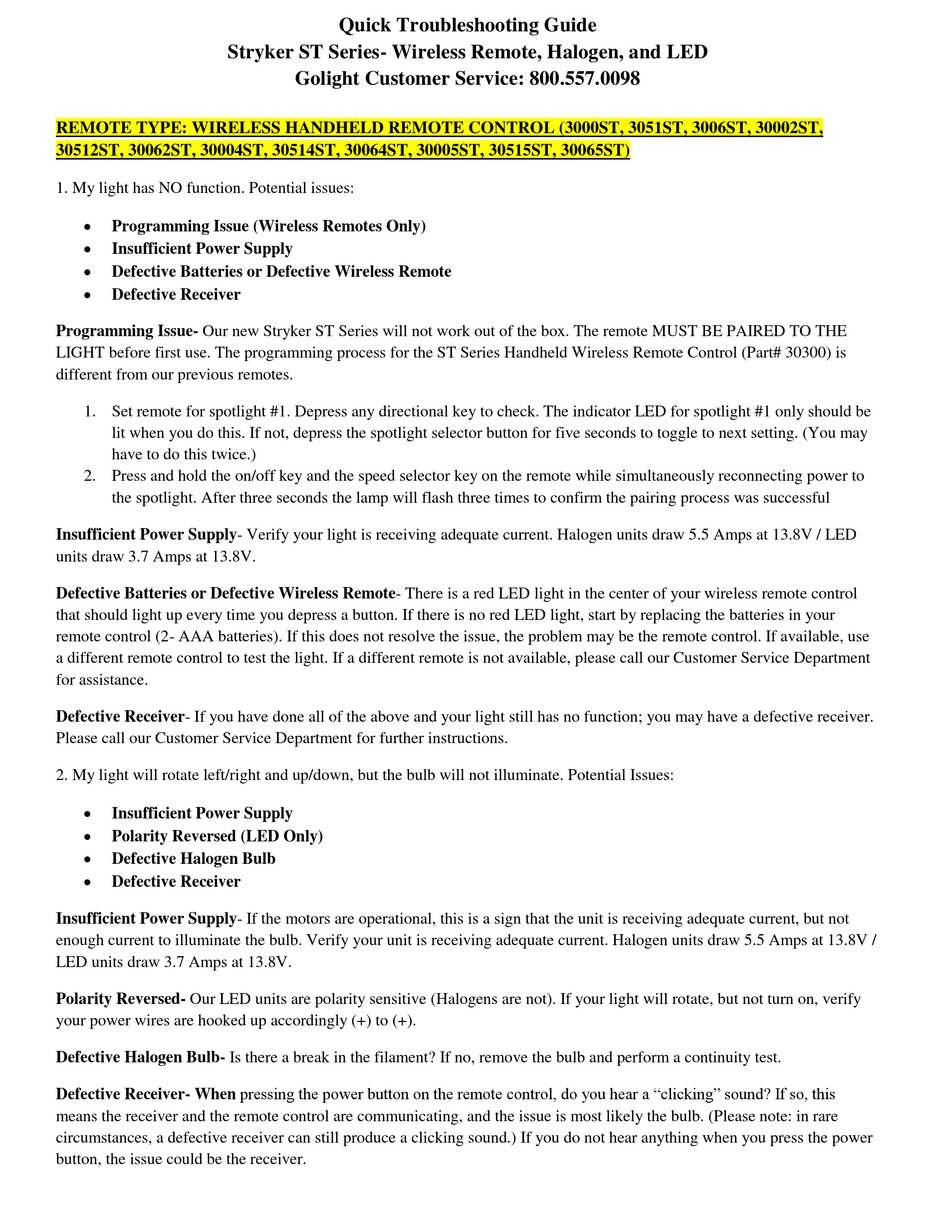

Quick Troubleshooting Guide
Stryker ST Series- Wireless Remote, Halogen, and LED
Golight Customer Service: 800.557.0098
