Summary of Contents for CAB CC200-SQ

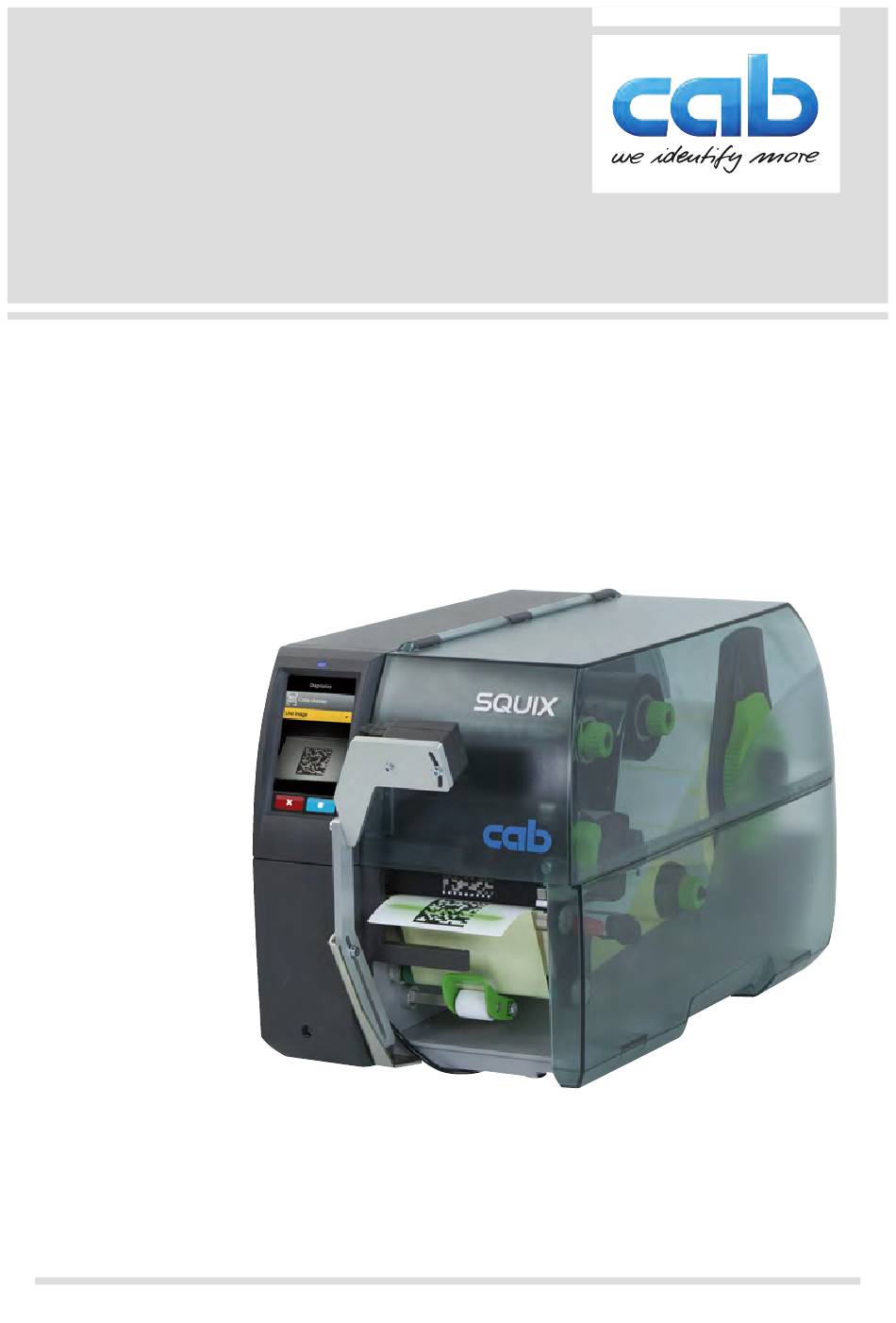

- Page 1 Assembly Instructions Scanner CC200-SQ MADE IN GERMANY...
- Page 2 Due to the constant further development of our products discrepancies between documentation and product can occur. Please check www.cab.de for the latest update. Terms and conditions Deliveries and performances are effected under the General conditions of sale of cab. Germany Taiwan China cab Produkttechnik cab Technology, Inc.
-
Page 3: Table Of Contents
Table of Contents Introduction ..................4 Instructions ..................4 Intended Use ...................5 Safety Instructions ................6 Environment ..................6 Technical Data .................7 Installation ..................9 Unpacking ..................9 Mounting the Scanner ..............10 Adjusting the Scanner ..............11 Configuration ................13 3.1 Printer configuration ...............13 3.2 Software configuration ..............14 Operation ..................18 Reference to the EU Declaration of Conformity .......19... -
Page 4: Introduction
Introduction Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous voltages. Danger! Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury. -
Page 5: Intended Use
Intended Use • The device is intended exclusively as a peripheral device for the cab printers of the SQUIX series for checking of printed linear barcodes and 2D codes. For that purpose, it is possible to check only one barcode per label. -
Page 6: Safety Instructions
Introduction Safety Instructions • Warning stickers must not be removed, as then you and other people cannot be aware of dangers and may be injured. • The device may only be used in a dry environment, do not expose it to moisture (sprays of water, mists, etc.). -
Page 7: Technical Data
Introduction Technical Data CC200-SQ Reading distance 45 - 145 mm Reading angle -15° to +15° Codes per label Check functions GOODBAD Checking the readability VERIFY Checking the readability and comparing the result with the data received Table 1 Technical data... - Page 8 Introduction Code Type Programming Code size cablabel JScript Width Height Width Height Interleaved 2/5 Linear ITF 14 Linear JAN 13 Linear JAN 8 Linear Micro PDF 417 Stacked Micro QR-Code 2D MSI Plessey Linear PDF 417 Stacked Postnet Linear Linear QR-Code RSS 14 Linear...
-
Page 9: Installation
Check stacker for damage which may have occurred during transport. Check delivery for completeness. Contents of delivery: • Scanner CC200-SQ with support and USB cable • Assembly instruction Note! Please keep the original packaging in case the device must be returned. -
Page 10: Mounting The Scanner
Installation Mounting the Scanner Attention! Disconnect the printer from the electrical outlet before mounting the scanner. Figure 1 Mounting the scanner 1. Push the retainer (1) of the scanner to the cutout of the printer base plate (3). 2. Insert and tighten screw (2). 3. -
Page 11: Adjusting The Scanner
Installation Adjusting the Scanner Figure 2 Adjusting distance and angle In order to adapt the scanner to the code to be checked, the scanner may be adjusted: Adjusting the reading distance • Adaptation to size and resolution of the code ... - Page 12 Installation Adjusting the reading angle and inclination • Adaptation to the position of small codes on the label Loosen 2 screws (2) to adjust the reading angle and screw (3) to adjust the inclination. Turn the scanner (1). ...
-
Page 13: Configuration
Configuration Printer configuration When the CC200-SQ is connected to the printer, a menu entry will appear in the printer's configuration menu where you can set up the device. Figure 3 Verifying menu Start the menu. Setup > Verifying. Select Parameter Meaning Default Error handling Error Let you choose how a barcode read error will be dialog handled by the printer. -
Page 14: Software Configuration
Configuration Software configuration 3.2.1 Code checking with JScript Note! For more details on JScript Programming manual Commands list +VERIFYn Optional parameter for printer barcodes. This parameter allows the printer to verify that the printed data are identical to the data sent. "n"... - Page 15 Configuration Examples ;+VERIFY H 75,0,T D 0,0 S l1;0,0,30,30,100,100,1 B 8,10,0,CODE39+VERIFY0,15,.5,4;1234567 ;+GOODBAD H 75,0,T D 0,0 S l1;0,0,30,30,100,100,1 B 8,10,0,CODE39+GOODBAD0,15,.5,4;1234567 ;,GOODBAD H 75,0,T D 0,0 S l1;0,0,30,30,100,100,1 I 10,10,0,1,1,GOODBAD0;PICT1...
- Page 16 Configuration 3.2.2 Code checking with cablabel S3 Pro To use the scanner with cablabel S3 Pro: Figure 4 Code checking with cablabel S3 Pro Right-click on the barcode and select "Barcode" option (1).
- Page 17 Configuration Figure 5 Barcode properties Click on "Verifier" (1). Activate parameter by checking "Enabled" (2). Select "Readability" or "Data content" (3). Change the read offset and read timeout if necessary. Note! For printer barcodes both types of verification are available. For graphic barcodes only the option "Readability" can be used.
-
Page 18: Operation
Operation Insert transfer ribbon and labels Operator's Manual of the printer. Install the power and computer connections. Switch on the printer. For operation in peel-off mode press to start the synchronization. Remove the blank labels peeled-off during synchronization. ... -
Page 19: Reference To The Eu Declaration Of Conformity
Reference to the EU Declaration of Conformity The Scanner CC200-SQ complies with the relevant fundamental regulations of the EU Rules for Safety and Health: • Directive 2014/30/EU relating to electromagnetic compatibility • Directive 2011/65/EU on the restriction of the use of certain hazardous...
