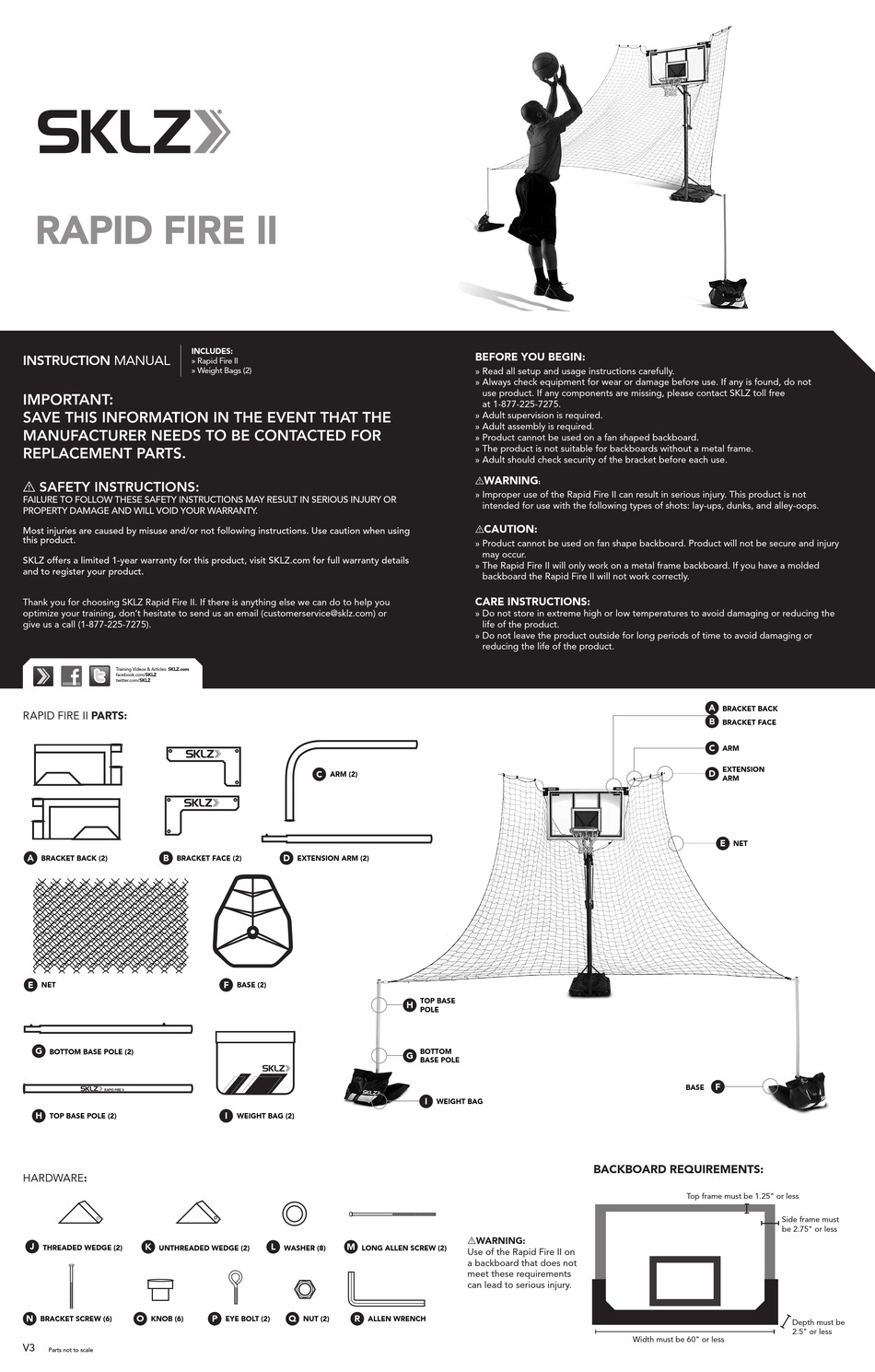

SKLZ RAPID FIRE II Instruction Manual

RAPID FIRE II
INSTRUCTION MANUAL
IMPORTANT:
SAVE THIS INFORMATION IN THE EVENT THAT THE
MANUFACTURER NEEDS TO BE CONTACTED FOR
REPLACEMENT PARTS.
I SAFETY INSTRUCTIONS:
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID YOUR WARRANTY.
Most injuries are caused by misuse and/or not following instructions. Use caution when using
this product.
SKLZ offers a limited 1-year warranty for this product, visit SKLZ.com for full warranty details
and to register your product.
Thank you for choosing SKLZ Rapid Fire II. If there is anything else we can do to help you
optimize your training, don't hesitate to send us an email (customerservice@sklz.com) or
give us a call (1-877-225-7275).
Training Videos & Articles: SKLZ.com
facebook.com/SKLZ
twitter.com/SKLZ
RAPID FIRE II PARTS:
A B
BRACKET BACK (2) BRACKET FACE (2)
E
NET
G
BOTTOM BASE POLE (2)
H
TOP BASE POLE (2)
HARDWARE:
J K
THREADED WEDGE (2)
UNTHREADED WEDGE (2)
N O
BRACKET SCREW (6) KNOB (6)
V3
Parts not to scale
INCLUDES:
» Rapid Fire II
» Weight Bags (2)
C
ARM (2)
D
EXTENSION ARM (2)
F
BASE (2)
I
WEIGHT BAG (2)
L M
WASHER (8)
P Q R
EYE BOLT (2) NUT (2)
BEFORE YOU BEGIN:
» Read all setup and usage instructions carefully.
» Always check equipment for wear or damage before use. If any is found, do not
use product. If any components are missing, please contact SKLZ toll free
at 1-877-225-7275.
» Adult supervision is required.
» Adult assembly is required.
» Product cannot be used on a fan shaped backboard.
» The product is not suitable for backboards without a metal frame.
» Adult should check security of the bracket before each use.
WARNING
i
» Improper use of the Rapid Fire II can result in serious injury. This product is not
intended for use with the following types of shots: lay-ups, dunks, and alley-oops.
CAUTION:
i
» Product cannot be used on fan shape backboard. Product will not be secure and injury
may occur.
» The Rapid Fire II will only work on a metal frame backboard. If you have a molded
backboard the Rapid Fire II will not work correctly.
CARE INSTRUCTIONS:
» Do not store in extreme high or low temperatures to avoid damaging or reducing the
life of the product.
» Do not leave the product outside for long periods of time to avoid damaging or
reducing the life of the product.
TOP BASE
H
POLE
BOTTOM
G
BASE POLE
I
WEIGHT BAG
ˆ I WARNING:
LONG ALLEN SCREW (2)
Use of the Rapid Fire II on
a backboard that does not
meet these requirements
can lead to serious injury.
ALLEN WRENCH
:
BASE
BACKBOARD REQUIREMENTS:
Top frame must be 1.25" or less
Width must be 60" or less
A
BRACKET BACK
B
BRACKET FACE
C
ARM
EXTENSION
D
ARM
E
NET
F
Side frame must
be 2.75" or less
Depth must be
2.5" or less
